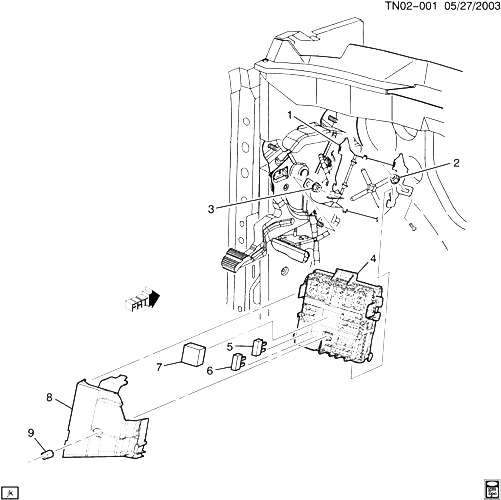

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25867232 |
BRACKET, DA WRG HARN J/BLK |
N257 (06) |
2003-2004 |
01 |
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA WRG HARN J/BLK BRKT)
|
2003-2007 |
01 |
|
| 003 |
11516780 |
ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917)
|
2003-2007 |
03 |
|
| 004 |
15266958 |
BLOCK, BODY WRG HARN JUNC (INCLS 5-7) |
N257 |
2003-2005 |
01 |
| 005 |
12088575 |
BREAKER, CIRCUIT, 25AMP, WHITE (PART OF 4)
|
2003-2007 |
01 |
|
| 006 |
12077863 |
BREAKER, CIRCUIT, 30 AMP, GREEN (PART OF 4) |
|
2003-2007 |
01 |
| 007 |
12177236 |
RELAY, R/WDO DEFG (4 TERM) (PART OF 4) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (ACDelco #D7065C)
| N2 |
2003-2007 |
01 |
|
| 008 |
15076505 |
COVER, DA WRG HARN FUSE BLK |
N257 (06) |
2003-2004 |
01 |
| 009 |
15599095 |
NUT, DA WRG HARN FUSE BLK CVR (M6X1) (PUSH ON) |
N257 (06) |
2003-2004 |
01 |
