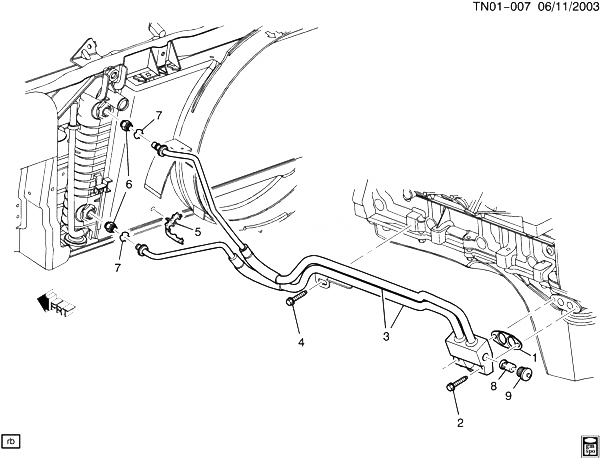

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15203889 |
GASKET, ENG OIL CLR (PART OF 3)
| N2 |
2003-2006 |
01 |
|
| 002 |
11517521 |
БОЛТ, HFH, M6X1X35, 17 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (PART OF 3) |
|
2003-2007 |
02 |
| 003 |
15114167 |
HOSE, ENG OIL CLR (W/7.75MM FROM THE END OF THE HOSE TO THE START OF FLARE) (FOR 2ND DESIGN SEE 15827946) (INCLS 1, 2, 8, 9)
| N257 (06) (1ST DES) |
2004-2004 |
01 |
|
| 003 |
15827946 |
HOSE, ENG OIL CLR (W/11.75MM FROM THE END OF THE HOSE TO THE START OF FLARE) (FOR 1ST DESIGN SEE 15114167) (INCLS 1, 2, 8, 9) (INCLS BOLT, HOSE, PIPES, CAPS, GASKET, BRACKET, ADAPTER)
| N2 (2ND DES) |
2004-2004 |
01 |
|
| 004 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (ENG OIL CLR HOSE BRKT) (T/W 12345493 REPLCS 25534835)
|
2003-2007 |
01 |
|
| 005 |
15698443 |
CLIP, ENG OIL CLR HOSE (2 PLACE HINGED) |
N2 |
2003-2007 |
01 |
| 006 |
15190249 |
CONNECTOR, ENG OIL CLR HOSE (INCLS 7) (ALUMINUM)
| N2 (LQ4) |
2004-2007 |
02 |
|
| 007 |
15724727 |
RETAINER, ENG OIL CLR CONN (PART OF 6) (1/2 WIRE CLIP)
| N2 |
2003-2006 |
01 |
|
| 008 |
25014006 |
VALVE, OIL FLTR BYPASS (USE W/OIL COOLER) (PART OF 3) (W/CAGE, SEAT, SPRING ; VALVE) (OPENING PRESSURE 11 PSI NOMINAL) (ACDelco #25014006) |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 008 |
25014051 |
VALVE, OIL FLTR BYPASS (EXC OIL COOLER) (PART OF 3) |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 009 |
|
PLUG, ENG OIL CLR ADAP HOLE (PART OF 3) |
|
2003-2007 |
|
