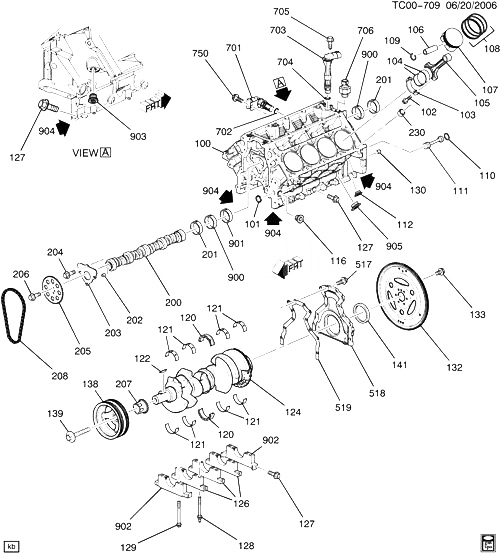

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG |
|
2003-2007 |
|
| 101 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2003-2007 |
01 |
| 102 |
12568069 |
БОЛТ, CONN ROD (PART OF 105) (M9X1X43) |
N257 (06) (LQ4) |
2003-2004 |
16 |
| 103 |
|
CAP, CONN ROD (PART OF 105) |
|
2003-2007 |
|
| 104 |
12493712 |
BEARING KIT, CONN ROD (STD) |
N257 (06) (LQ4) |
2003-2004 |
08 |
| 105 |
12568734 |
ROD, CONN (INCLS 102, 103) (USED WITH FIXED PISTON) (PIN PRESSED ON) (FOR 2ND DESIGN SEE 12577583.) |
N257 (06) (LQ4, M32) (1ST DES) |
2004-2004 |
08 |
| 105 |
12607475 |
ROD, CONN (INCLS 102, 103) (USED WITH FLOATING PIN PISTON) (WITH PIN RETAINING CLIP) (FOR 1ST DESIGN SEE 12568734) |
N2 (LQ4, M32) (EXC KUP) (2ND DES) |
2004-2004 |
08 |
| 106 |
|
PIN, PSTN (PART OF 107) |
|
2003-2007 |
|
| 107 |
89017472 |
PISTON, (W/PIN) (WHEN REPLACED BY 89017472 USE T/W CONN ROD 12577583) (INCLS 106, 109) (STD) (USED WITH FLOATING PIN PISTON) (WITH PIN RETAINING CLIP) (USED TOGETHER WITH CONN ROD 12577583)
| N257 (LQ4, M32) (EXC KUP) |
2004-2004 |
08 |
|
| 107 |
89017473 |
PISTON, (W/PIN) (INCLS 106, 109) (0.5MM O.S.) (USED WITH FLOATING PIN PISTON) (WITH PIN RETAINING CLIP) (MUST USE WITH CONN ROD 12577583) |
N257 (LQ4) (EXC KUP) |
2004-2004 |
08 |
| 108 |
88894243 |
RING KIT, PSTN (STD) (UPPER COMPRESSION RING IS 1.5MM THICK)
| N257 (06) (LQ4) |
2003-2004 |
08 |
|
| 108 |
88894244 |
RING KIT, PSTN (.5MM O.S.) |
N257 (06) (LQ4) |
2003-2004 |
08 |
| 109 |
12569638 |
RETAINER, PSTN PIN (PART OF 107) |
N257 (LQ4) |
2004-2004 |
16 |
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2003-2007 |
|
| 111 |
12573460 |
PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL)
|
2003-2007 |
02 |
|
| 120 |
89017572 |
BEARING KIT, CR/SHF THR (STD) (#3) |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 121 |
89017571 |
BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) |
N257 (06) (LQ4) |
2003-2004 |
04 |
| 122 |
12561513 |
KEY, CR/SHF BALR (4.8MMX37.5MM)
| N257 (06) (LQ4) |
2003-2004 |
01 |
|
| 124 |
12569768 |
CRANKSHAFT, (FOR USE WITH FLOATING PIN PISTON) |
N257 (06) (LQ4, M32) |
2003-2004 |
01 |
| 126 |
|
CAP, CR/SHF BRG (POSN #2, 3, 4) (INTERMEDIATE)) |
|
2003-2007 |
|
| 127 |
12556127 |
БОЛТ, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24)
| N257 (06) (LQ4) |
2003-2004 |
10 |
|
| 128 |
12560273 |
STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG)
| N257 (06) (LQ4) |
2003-2004 |
10 |
|
| 129 |
12560272 |
БОЛТ, CR/SHF BRG CAP (LONG) (M10X2X102.5, 24.5)
| N257 (06) (LQ4) |
2004-2004 |
10 |
|
| 130 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2003-2007 |
02 |
| 133 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| N257 (06) (LQ4) |
2003-2004 |
06 |
|
| 138 |
12576652 |
BALANCER, CR/SHF |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 139 |
12557840 |
БОЛТ, CR/SHF BALR (M16X2.0X103)
| N2 (LQ4) |
2003-2006 |
01 |
|
| 141 |
89060436 |
SEAL KIT, CR/SHF RR OIL (REVERSE LIP SEAL, INCL INSTRUCTION SHEET)
| N257 (06) (LQ4) |
2003-2004 |
01 |
|
| 200 |
12561721 |
CAMSHAFT, ENG |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 201 |
12453167 |
BEARING, CM/SHF (# 1, 5)
| N257 (06) (LQ4) |
2003-2004 |
02 |
|
| 202 |
12554553 |
PIN, CM/SHF SPKT LOC (1/4X5/8) |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 203 |
12589016 |
RETAINER, CM/SHF (USE WITH BOLT 11561455) |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 204 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF RET)
|
2003-2007 |
04 |
|
| 205 |
12576407 |
SPROCKET, CM/SHF |
N257 (LQ4) |
2003-2004 |
01 |
| 206 |
12556127 |
БОЛТ, CM/SHF SPKT (M8X1.25X24) (0.056)
| N257 (06) (LQ4) |
2003-2004 |
03 |
|
| 207 |
12556582 |
SPROCKET, CR/SHF
| N257 (06) (LQ4) |
2003-2004 |
01 |
|
| 208 |
12586482 |
CHAIN, CM/SHF TMG
| N257 (06) (LQ4) |
2003-2004 |
01 |
|
| 230 |
12570326 |
PIN, CYL HD LOC
| N257 (06) (LQ4) |
2003-2004 |
04 |
|
| 517 |
12556127 |
БОЛТ, CR/SHF RR OIL SEAL HSG (M8X1.25X24) (0.056)
| N257 (06) (LQ4) |
2003-2004 |
12 |
|
| 518 |
12615666 |
HOUSING, CR/SHF RR OIL SEAL (INCLS BOLT, SEAL, GASKET, HOUSING) |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 519 |
12593587 |
GASKET, CR/SHF RR OIL SEAL HSG |
N257 (06) (LQ4) |
2003-2004 |
01 |
| 701 |
12560228 |
ДАТЧИК, CR/SHF POSN (INCLS 702) (ACDelco #213-354)
| N257 (06) (LQ4) |
2003-2004 |
01 |
|
| 702 |
|
SEAL, O-RING CR/SHF POSN (PART OF 701) |
|
2003-2007 |
|
| 703 |
12561211 |
ДАТЧИК, CM/SHF POSN (INCLS 704) (ACDelco #213-363)
| N257 (06) (LQ4) |
2003-2004 |
01 |
|
| 704 |
|
SEAL, CM/SHF SENSOR O RING (PART OF 703) |
|
2003-2007 |
|
| 705 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF POSN SEN)
|
2003-2007 |
01 |
|
| 706 |
12616646 |
ДАТЧИК, ENG OIL PRESS (ACDelco #D1846A)
| N257 (06) |
2003-2004 |
01 |
|
| 750 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN)
|
2003-2007 |
01 |
|
| 900 |
12453168 |
BEARING, CM/SHF (# 2, 4)
| N257 (06) (LQ4) |
2003-2004 |
02 |
|
| 901 |
19167218 |
BEARING, CM/SHF (POSN #3)
| N257 (06) (LQ4) |
2003-2004 |
01 |
|
| 902 |
|
CAP, CR/SHF BRG (POSN#5) (REAR) (POSN #1) (FRONT)) |
|
2003-2007 |
|
| 903 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE)
|
2003-2007 |
01 |
|
| 904 |
12346004 |
SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE (OIL PAN AT FOUR CORNER)
|
2003-2007 |
AR |
|
| 905 |
11609289 |
PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (LEFT SIDE ONLY) (8.971) |
|
2003-2007 |
01 |
