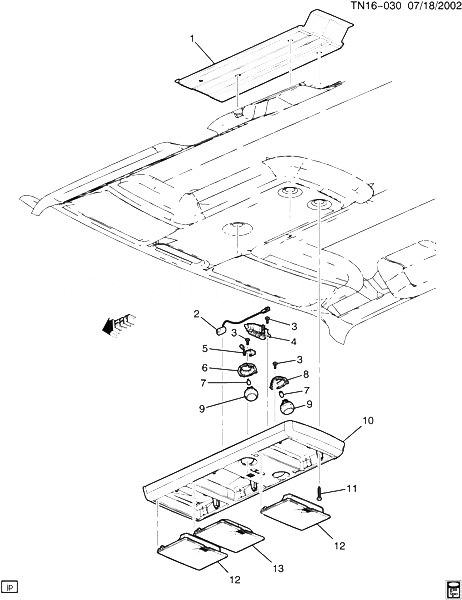

(TN16-030) - 2003 N2(06) КОНСОЛЬ-КРЫША (LONG ROOF CONSOLE)(DK6) HUMMER - H2 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15174510 BRACKET, RF CNSL N2 2003-2004 01
002 15247279 MICROPHONE, MOBILE TEL (PART OF 10) N257 (06) 2003-2003 01
003 SCREW 2003-2003
004 15057866 TRANSMITTER, GARAGE DR OPENER (PART OF 10) N2 2003-2004 01
005 15240415 MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 10) N257 (06) 2003-2004 01
006 SOCKET BALL RETAINER 2003-2003
007 BULB 2003-2003
008 SOCKET BALL RETAINER 2003-2003
009 LP SOCKET NATG BALL 2003-2003
010 15191513 CONSOLE, RF (INCLS 2, 4, 5, 12, 13) (GRAY) (LONG CONSOLE) (W/MICROPHONE) (FOR 2ND DES SEE 15222133) N2 (DK6, 50I) (EXC CF5) (1ST DES) 2003-2004 01
010 15222133 CONSOLE, RF (INCLS 2, 4, 5, 12, 13) (GRAY) (LONG CNSL) (USE T/W 19122215 FOR SPECIAL EDITION VEHS) N2 (DK6, 50I) (EXC CF5) (2ND DES) 2003-2003 01
011 SCREW 2003-2003
012 STORAGE DOOR, BIN) (PART OF 10) 2003-2003
013 STORAGE DOOR, GLASSES) (PART OF 10) 2003-2003
