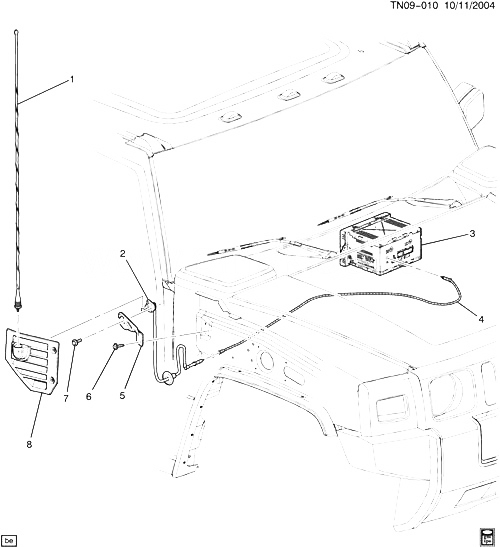

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15931264 |
АНТЕННА, RDO (INCLS MAST BOOT) (ACDelco #15931264)
| N257 (06) |
2003-2004 |
01 |
|
| 002 |
15118444 |
BASE, RDO ANT (USED W/RH SIDE COWL MTD FIXED AM/FM ANT) (ACDelco #15118444) |
N257 |
2003-2007 |
01 |
| 003 |
|
RADIO, AM/FM STEREO ; CLK ; CD PLYR (SEE GROUP 09.000 AUDIO SYSTEM/RADIO ; CONTROLS FOR DETAILED ILLUSTRATED VIEW) (LABELED 25941920, 25799568 OR 25864960) |
|
2003-2009 |
|
| 004 |
88986325 |
CABLE, RDO ANT (I/P HARNESS) (1420MM LONG) (ACDelco #88986325) |
N257 (06) |
2003-2003 |
01 |
| 004 |
88987275 |
CABLE, RDO ANT (RF MKR LP WRG HARN) (1430MM LONG) (ACDelco #88987275) |
N257 (06) |
2003-2003 |
01 |
| 005 |
15118440 |
BRACKET, RDO (USED W/RH SIDE COWL MTD FIXED AM/FM ANT) |
N257 |
2003-2007 |
01 |
| 006 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RDO ANT BRKT)
|
2003-2009 |
02 |
|
| 007 |
11509192 |
БОЛТ, HEX, W/FL WA, M5X0.8X20, FULL THD, 14 O.D., 9.8, PEOR (RDO ANT BASE) |
|
2003-2009 |
03 |
| 008 |
15063130 |
COVER, FRT INT AIR DUCT HOLE
| N257 (06) (LQ4) |
2003-2003 |
01 |
|
