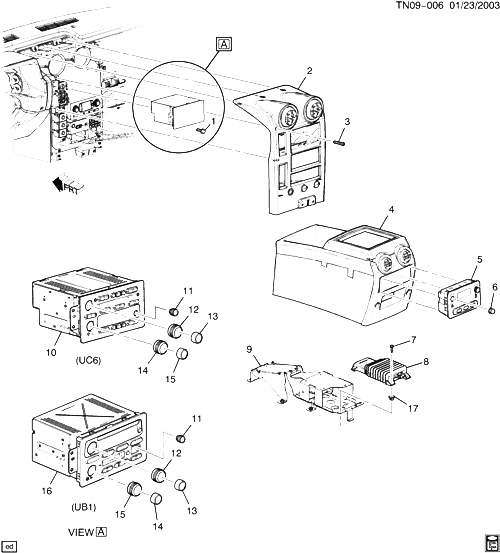

(TN09-006) - 2003 N2 AUDIO SYSTEM/RADIO CONTROLS HUMMER - H2 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) 2003-2003 03
002 10358024 BEZEL, I/P ACSRY (GRAY) N2 (50I) 2003-2003 01
003 11518916 БОЛТ, I/P ACSRY BZL (6 X 1 X 45) (9.264) N2 2003-2003 02
004 CONSOLE, F/FLR (SEE GROUP 16.00 FLOOR CONSOLE FOR DETAILED VIEW) (INCLS 5) (WHEAT) (LESS REAR PNL) N257 (06) (50I) 2003-2003 01
005 15850810 CONTROL, AM/FM STEREO ; T/PLYR ; CD PLYR RDO (PART OF 4) (INCLS 6) (ACDelco #15850810) N257 (06) 2003-2003 01
006 12201805 KNOB, RDO VOL CONT (PART OF 5) (RING) N257 (06) (UB1) 2003-2003 01
006 12205116 KNOB, RDO VOL CONT (PART OF 5) N257 (502, 50D) 2003-2003 02
007 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO SPKR AMPF) (9.665) 2003-2003 04
008 15112662 AMPLIFIER, RDO SPKR (CLASS 2 AMP W/DSP MODES; ID W/OEM P/N 15112662) (ACDelco #15112662) N257 (06) 2003-2003 01
009 BRACKET, AMP 2003-2003
010 10357886 RADIO, AM/FM STEREO ; CLK ; CD PLYR (INCLS 11-15) (CODE WAET) (ACDelco #10357886) N257 (06) (UC6) 2003-2003 01
011 09354886 KNOB, RDO TONE CONT (PART OF 10, 16) (AUDIO) (ACDelco #9354886) N257 (06) (UB1) 2003-2003 01
011 12204874 KNOB, RDO TONE CONT (PART OF 10, 16) (AUDIO) (ACDelco #12204874) N257 (06) (UC6) 2003-2003 01
012 12201805 KNOB, RDO VOL CONT (PART OF 10, 16) (RING) N257 (06) (UB1) 2003-2003 01
012 12205116 KNOB, RDO VOL CONT (PART OF 10, 16) N257 (502, 50D) 2003-2003 02
013 12210421 PUSHBUTTON, RDO PWR (PART OF 10, 16) (9.652) N257 (06) (UC6) 2003-2003 01
013 12210421 PUSHBUTTON, RDO PWR (PART OF 10, 16) N257 (06) (UC6) 2003-2003 01
013 12215318 PUSHBUTTON, RDO PWR (PART OF 10, 16) N257 (06) (UB1) 2003-2003 01
014 12201802 KNOB, RDO TUNING CONT (PART OF 10, 16) (RING SOFT TOUCH AS MOLDED) (ACDelco #12201802) N257 (06) 2003-2003 01
015 12210422 PUSHBUTTON, RDO RECALL (PART OF 10, 16) N257 (06) (UC6) 2003-2003 01
016 10356164 RADIO, AM/FM STEREO ; CLK ; T/PLYR ; CD PLYR (INCLS 11-15) (CODE WAEZ) (ACDelco #10356164) (REQUIRES DEALER REPROGRAMMING) N257 (06) (UB1) 2003-2003 01
017 11589183 NUT, RDO SPKR AMPF (PUSH-IN 6.3 SQ HOLE) (NYLON) (W/SEAL) (8.932) N257 (06) 2003-2003 04
017 17988488 NUT, RDO SPKR AMPF (SILVER) (4.2 X 1.41) (PUSH-IN FOR 12MM SQ HOLE) (10.252) N2 2003-2003 04
