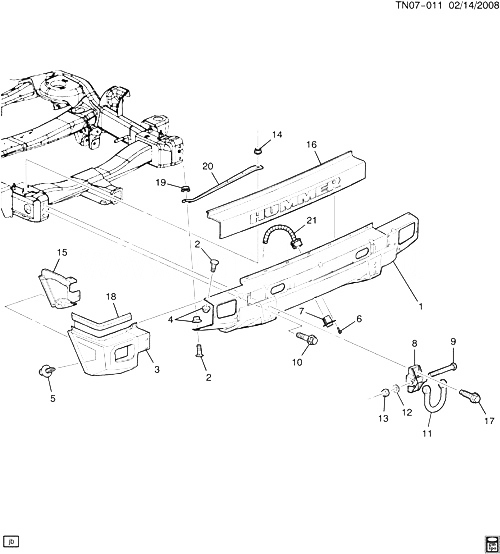

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12335668 |
ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP (LESS FILLER, FASCIA, BAR SUPPORT)
| N2 (06) |
2003-2005 |
01 |
|
| 002 |
11519771 |
БОЛТ, RD HD W/SQ NK, M10X1.5X25, 17 THD, 23.3 O.D., 10.9, 7114M (RR BPR IMP BAR)
|
2003-2005 |
08 |
|
| 003 |
12335665 |
FILLER, БАМПЕР ЗАДНИЙ (INCLS 18) (BLACK) (MOLDED)
| N2 (06) |
2003-2005 |
01 |
|
| 003 |
12335666 |
FILLER, БАМПЕР ЗАДНИЙ (INCLS 18) (BLACK) (MOLDED)
| N2 (06) |
2003-2005 |
01 |
|
| 004 |
11516781 |
ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (RR BPR IMP BAR) (8.917)
|
2003-2005 |
08 |
|
| 005 |
10134407 |
RETAINER, БАМПЕР ЗАДНИЙ FASCIA (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272)
| N2 (06) |
2003-2005 |
06 |
|
| 006 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (TRLR RR WRG HARN RCPT PLT)
|
2003-2005 |
01 |
|
| 007 |
15162416 |
RECEPTACLE, TOW VEH ELEC
| N257 (06) |
2003-2004 |
01 |
|
| 008 |
|
BRACKET, RR TOW EYE (PART OF 11) |
|
2003-2004 |
|
| 009 |
11562051 |
БОЛТ, HFH, M16X2X140, 30 THD, 30.5 OD, 10.9, GMW4205, BLACK (PART OF 11) |
|
2003-2005 |
02 |
| 010 |
11518591 |
БОЛТ, HFH, M8X1.25X30, 18 THD, 18 OD, 10.9, GM6046M (BLACK), 9MM P-POINT (RR BPR IMP BAR)
|
2003-2005 |
02 |
|
| 011 |
15109572 |
EYE, RR TOW (INCLS 8, 9, 12, 13)
| N257 (06) |
2003-2005 |
02 |
|
| 012 |
15204555 |
WASHER, RR TOW EYE (PART OF 11)
| N257 |
2003-2005 |
01 |
|
| 013 |
11589152 |
ГАЙКА, HEX, M16X2X15, 10, GMW4205, BLACK (PART OF 11) |
|
2003-2005 |
02 |
| 014 |
11514598 |
ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (RR BPR FASCIA OTR BRKT)
|
2003-2005 |
02 |
|
| 015 |
12335669 |
SUPPORT, БАМПЕР ЗАДНИЙ FIL
| N2 |
2003-2005 |
01 |
|
| 015 |
12335670 |
SUPPORT, БАМПЕР ЗАДНИЙ FIL |
N2 |
2003-2005 |
01 |
| 016 |
12335667 |
FASCIA, БАМПЕР ЗАДНИЙ UPR
| N2 (06) |
2003-2005 |
01 |
|
| 017 |
11561764 |
BOLT - HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (RR BPR IMP BAR)
|
2003-2005 |
04 |
|
| 018 |
12335676 |
MOLDING, БАМПЕР ЗАДНИЙ IMP BAR (PART OF 3) |
N2 (06) |
2003-2005 |
01 |
| 018 |
12335677 |
MOLDING, БАМПЕР ЗАДНИЙ IMP BAR (PART OF 3)
| N2 (06) |
2003-2005 |
01 |
|
| 019 |
10255857 |
ГАЙКА, HFH, 10X1.5, 6H THD, 9.8THK, 21.3 O.D., 10, PZOR (RR BPR FASCIA OTR BRKT) (8.917)
|
2003-2005 |
02 |
|
| 020 |
15115463 |
BRACKET, БАМПЕР ЗАДНИЙ FASCIA OTR |
N2 |
2003-2005 |
01 |
| 020 |
15115464 |
BRACKET, БАМПЕР ЗАДНИЙ FASCIA OTR |
N2 |
2003-2005 |
01 |
| 021 |
15195468 |
HARNESS, CHAS WRG |
N257 (06) (Z83) |
2003-2003 |
01 |
| 021 |
15195468 |
HARNESS, CHAS WRG |
N257 (06) (ZM6) |
2003-2003 |
01 |
