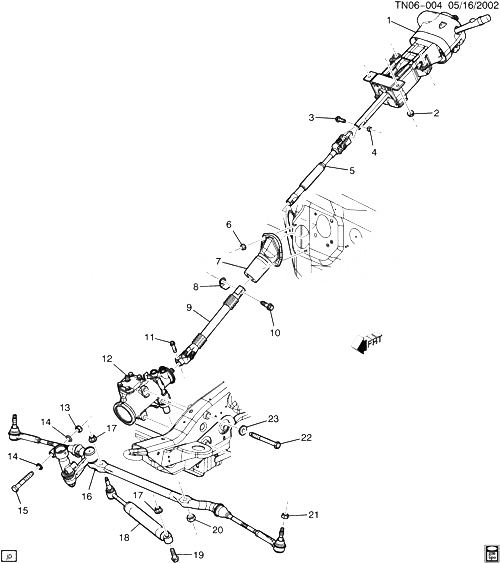

(TN06-004) - 2003-2009 N2 STEERING SYSTEM RELATED PARTS HUMMER - H2 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COLUMN, STRG (SEE GROUP 09.000 STRG COLUMN FOR DETAILED ILLUSTRATED VIEW) 2003-2009
002 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (STRG COL) 2003-2009 04
003 26058124 БОЛТ, S/GR CPLG (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) N257 (06) 2003-2004 01
004 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (S/GR CPLG) (2.383) 2003-2009 01
005 19153614 SHAFT, UPR INTER STRG (W/SM YOKE) (CODES Y4K, UTH, YAY, YBB, YAL, Y3S, U2Z, Y3M, Y3P, Y3Z, Y4J, WKM, XZT, U2R, UTU, U1T, U1U, U2C, UXN, U2R, Y4M, Y4N, Y4P, Y4R, Y4S, Y3X, Y3Y, U2F, YAA, U1S, Y3A, U1M) N257 2003-2007 01
006 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (STRG COL SEAL) (8.921) 2003-2009 03
007 21996234 SEAL, STRG COL N257 2003-2004 01
008 15017238 NUT, S/GR CPLG (M10X1.5 6H, 21.5 OD) (W/PREVAILING TORQ FLANGE) N257 (06) 2003-2004 01
009 15772436 SHAFT, S/GR CPLG (LWR STRG) N2 2003-2009 01
009 15772436 SHAFT, S/GR CPLG (LWR STRG) (6.524) N2 2003-2009 01
010 11515768 БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (S/GR CPLG) 2003-2009 01
011 26030302 БОЛТ, S/GR CPLG (M10X1.5X39) (HFH NYLON LOCK) (6 POINT HEAD) N257 (06) 2003-2004 01
012 15166613 GEAR, STRG N257 2003-2005 01
013 11516074 ГАЙКА, HEX M14X2X13 (STRG LNKG I/ARM) 2003-2009 02
014 15712787 WASHER, STRG LNKG I/ARM (14.5 MM ID) N2 2003-2009 04
015 11518132 БОЛТ, STRG LNKG I/ARM (M14X2X95) N2 2003-2009 02
016 LINKAGE, STRG (SEE GROUP 06.000 LINKAGE FOR DETAILED ILLUSTRATED VIEW) 2003-2009
017 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (STRG LNKG S/ABS) (8.917) 2003-2009 02
018 15059138 ABSORBER, STRG LNKG SHK N2 2003-2009 01
019 11515781 БОЛТ, METRIC HEAVY HEX FLANGE HEAD REDUCED, M12X1.75X80 (STRG LNKG S/ABS) 2003-2009 01
020 11516074 ГАЙКА, HEX M14X2X13 (STRG LNKG PIT ARM) 2003-2009 01
021 11516074 ГАЙКА, HEX M14X2X13 (STRG LNKG OTR TIE ROD) 2003-2009 02
022 11513596 БОЛТ, HEX, RED BDY, M14X2X135, 87.7 GRIP, 47.3 THD, CONE PT, 12.75 BDY OD, 10.9, PS (S/GR) 2003-2009 03
023 11610231 WASHER - FLAT, 15X32X4.45, SAE 1050-1080 STL, HRC 40-45, GMW3179 (S/GR) 2003-2009 03
