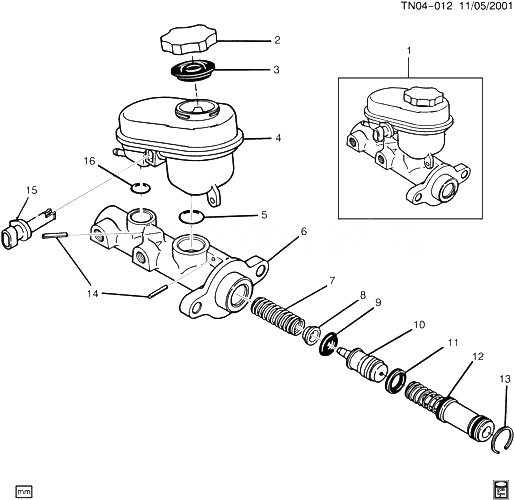

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
18047533 |
CYLINDER, BRK MAS (INCLS 2-16) (ACDelco #174-797) |
N257 (JH6) |
2003-2007 |
01 |
| 002 |
22688449 |
CAP, BRK M/CYL RSVR (INCLS 3)
| N257 (JH6) |
2003-2007 |
01 |
|
| 003 |
|
DIAPHRAGM (PART OF 2) |
|
2003-2007 |
|
| 004 |
18048543 |
RESERVOIR KIT, BRK M/CYL (INCLS 5, 16) |
N257 (JH6) |
2003-2007 |
01 |
| 005 |
|
SEAL, RESERVOIR RR BRK (PART OF 4) |
|
2003-2007 |
|
| 006 |
|
CYLINDER BODY |
|
2003-2007 |
|
| 007 |
|
SPRING |
|
2003-2007 |
|
| 008 |
|
RETAINER, SPRING (*KIT1) |
|
2003-2007 |
|
| 009 |
|
PRIMARY SEAL (*KIT1) |
|
2003-2007 |
|
| 010 |
18047536 |
PISTON, BRK M/CYL SECD |
N257 (JH6) |
2003-2007 |
01 |
| 011 |
|
SECONDARY SEAL (*KIT1) |
|
2003-2007 |
|
| 012 |
|
PISTON, BRK M/CYL PRIM (*KIT1) |
|
2003-2007 |
|
| 013 |
|
RETAINER (*KIT1) |
|
2003-2007 |
|
| 014 |
|
SPRING PIN |
|
2003-2007 |
|
| 015 |
18012741 |
SWITCH, BRK FLUID LVL IND (ACDelco #18012741) |
N257 (06) |
2003-2004 |
01 |
| 016 |
|
SEAL, RESERVOIR FRT BRK (PART OF 4) |
|
2003-2007 |
|
| K01 |
18047534 |
CYLINDER KIT, BRK MAS (INCLS 8, 9, 11-13) (ACDelco #175-445) |
N257 (JH6) |
2003-2007 |
01 |
