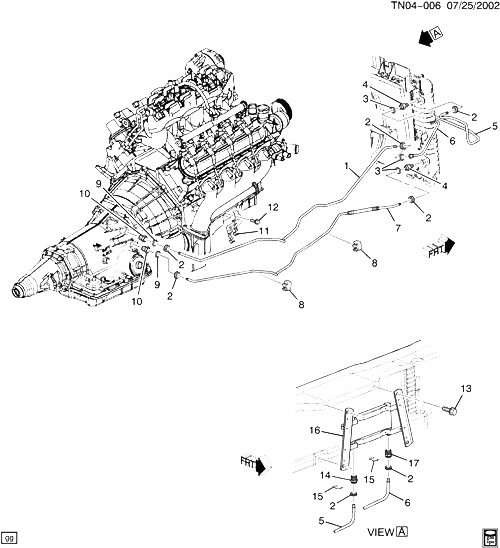

(TN04-006) - 2003-2007 N2 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП ТРУБКИ МАСЛОРАДИАТОРА (M32) HUMMER - H2 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15827949 PIPE, TRANS FLUID CLR UPR (INL) (INCLS 2) N2 2003-2007 01
002 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 5-7) (PLASTIC RETAINER) (ACDelco #15052228) N2 2003-2007 02
003 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 4, 6) (EXPANDING SPRING WIRE) (ACDelco #24205103) N2 2003-2006 01
004 19130039 CONNECTOR, TRANS FLUID CLR PIPE (INCLS 3) (3/8 CONN, 5/8-18 UNF) (ACDelco #19130039) N257 (06) (LQ4) 2003-2003 02
005 15827947 PIPE, TRANS FLUID AUX CLR INL (INCLS 2) N2 2003-2007 01
006 15827948 PIPE, TRANS FLUID CLR UPR EXTN (INCLS 2, 3) N2 2003-2007 01
007 15827950 PIPE, TRANS FLUID CLR LWR (OTLT) (INCLS 2) (ACDelco #15827950) N257 (06) 2003-2003 01
008 15068848 CLIP, TRANS FLUID CLR PIPE (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP) N2 2003-2007 02
009 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (EXPANDING SPRING WIRE) (ACDelco #24205103) N2 2003-2007 01
010 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366) N2 2003-2005 02
011 15022958 CLIP, BAT POS CBL (RETAINS 9.5MM STL TUBING) 257 (06) (LQ4) 2003-2004 01
012 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (BAT POS CBL CLIP) 2003-2007 01
013 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (TRANS FLUID CLR) 2003-2007 04
014 15724728 FITTING, TRANS FLUID AUX CLR INL PIPE (PART OF 16) (INCLS 15) (3/8 QUICK CONNECT, 3/8 NPTF) (AT COOLER) N257 (06) 2003-2004 01
015 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 14, 17) (EXPANDING SPRING WIRE) (ACDelco #24205103) N2 2003-2007 01
016 15124483 COOLER, TRANS FLUID AUX (INCLS 14, 17) (CODE 4483, 2371) (ACDelco #15124483) N2 (M32) 2003-2007 01
017 15724728 FITTING, TRANS FLUID AUX CLR OTLT PIPE (PART OF 16) (INCLS 15) (3/8 QUICK CONNECT, 3/8 NPTF) (AT COOLER) N257 (06) 2003-2004 01
