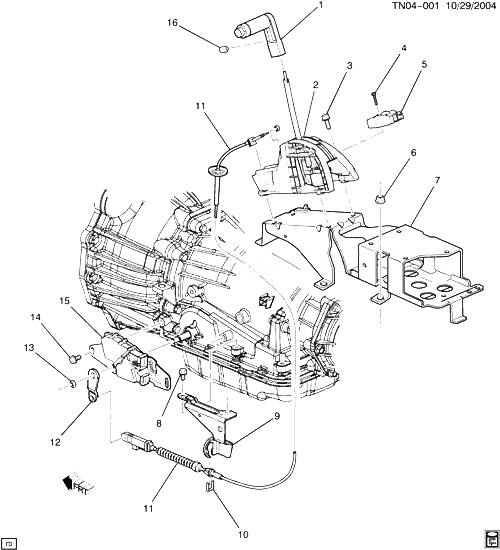

(TN04-001) - 2003-2004 N2 УПРАВЛЕНИЕ ПЕРЕКЛЮЧЕНИЕМ/АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (M32) HUMMER - H2 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15808173 HANDLE, A/TRNS CONT LVR (INCLS 16) (HANDLE W/1 FASTENER ON FRONT FACE OF KNOB) N257 (M32) 2003-2005 01
002 15823789 CONTROL, A/TRNS (INCLS 4, 5) (HANDLE HAS 1 FASTENER ON FRONT FACE OF KNOB) N257 2003-2004 01
003 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/TRNS CONT) 2003-2006 04
004 БОЛТ, A/TRNS SHFT LK CONT SOL (PART OF 2) 2003-2004
005 SOLENOID, A/TRNS SHFT LK CONT (PART OF 2) 2003-2004
006 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/TRNS CONT BRKT) (8.915) (ACDelco #11514596) 2003-2006 06
007 15194044 BRACKET, A/TRNS CONT (W/ALIGNED BOLTS TO SHIFTER ASM) N257 2003-2004 01
008 11561015 SCREW-M8X1.25X21.5, 15 THD, 17 OD, 9.8, GMW4700ZNNI BLACK (A/TRNS RANGE SEL LVR CBL BRKT) 2003-2006 02
009 15200802 BRACKET, A/TRNS RANGE SEL LVR CBL (ACDelco #15200802) N257 (M32) 2003-2006 01
010 10217245 RETAINER, A/TRNS RANGE SEL LVR CBL (U-SHAPE) N257 (M32) 2003-2006 01
011 15268403 CABLE, A/TRNS RANGE SEL LVR (AT TRNS) N257 (M32) 2003-2006 01
012 15082892 LEVER, A/TRNS RANGE SEL LVR EQLZR N257 (M32) 2003-2006 01
013 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/TRNS RANGE SEL LVR EQLZR LVR) (2.383) 2003-2006 01
014 11509640 БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (PARK/NEU POSN ; B/U LP SW) 2003-2006 02
015 24229422 SWITCH, PARK/NEU POSN ; B/U LP (TRANS MTD) ( (1) 7-PIN AND (1) 4-PIN CONN) (4.054) (ACDelco #D2263C) N257 (06) (M32) 2003-2003 01
015 24229422 SWITCH, PARK/NEU POSN ; B/U LP (TRANS MTD) ( (1) 7-PIN AND (1) 4-PIN CONN) (ACDelco #D2263C) N257 (06) (M32) 2003-2003 01
016 11519226 БОЛТ, A/TRNS CONT LVR KNOB (PART OF 1) (SET SCREW) (W/TAPER PT, T15 TORX, M6X1X10.2, 8 THD) N257 (M32) 2003-2006 01
