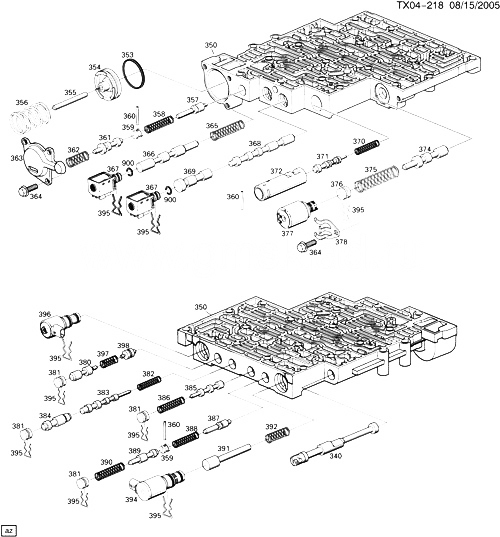

(TX04-218) - 2003-2007 N2 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (M32) PART 4 (4L65-E) КЛАПАН УПРАВЛЕНИЯ HUMMER - H2 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
340 24203484 VALVE, MAN (*KIT1) (4.265) (ACDelco #24203484) N257 (M32) 2003-2007 01
350 BODY, C/VLV (*KIT1) 2003-2007
353 24206508 RING, FWD CLU ACCUM PSTN FLUID SEAL (*KIT1) (ACDelco #24206508) N257 (M32) 2003-2007 01
354 24200126 PISTON, FWD CLU ACCUM (*KIT1) (ACDelco #24200126) N257 (M32) 2003-2007 01
355 PIN, FWD CLU ACCUM PSTN (*KIT1) 2003-2007
356 24208765 SPRING, FWD CLU ACCUM PSTN (*KIT1) (ACDelco #24208765) N257 (M32) 2003-2007 01
357 VALVE, FWD CLU ABUSE (*KIT1) 2003-2007
358 SPRING, FWD CLU ABUSE VLV (*KIT1) 2003-2007
359 PLUG, FWD CLU ABUSE VLV BORE (*KIT1) 2003-2007
360 08680765 PIN, FWD CLU ABUSE VLV BORE PLUG (*KIT1) (4.265) (ACDelco #8680765) N257 (M32) 2003-2007 01
360 08680765 PIN, 1-2 ACCUM VLV BORE PLUG (*KIT1) (ACDelco #8680765) N257 (M32) 2003-2007 01
360 08680765 PIN, REV ABUSE VLV BORE PLUG (*KIT1) (ACDelco #8680765) N257 (M32) 2003-2007 01
361 VALVE, LOW OVERRUN (*KIT1) 2003-2007
362 SPRING, LOW OVERRUN VLV (*KIT1) 2003-2007
363 24206338 COVER, FWD CLU ACCUM (W/SLOTS) (*KIT1) (ACDelco #24206338) N257 (M32) 2003-2007 01
364 08680764 БОЛТ, FWD CLU ACCUM CVR (M6X1X17.7) (*KIT1) (4.265) (ACDelco #8680764) N257 (M32) 2003-2007 03
365 SPRING, 1-2 SHFT VLV (*KIT1) 2003-2007
366 VALVE, 1-2 SHFT (*KIT1) 2003-2007
367 24230298 VALVE, 1-2, 3-4 SHFT SOL (INCLS 900) (INCLS SEAL) (*KIT1) (ACDelco #24230298) N257 (M32) 2003-2003 01
367 24230298 VALVE, 2-3 SHFT SOL (CPS) (INCLS 900) (INCLS SEAL) (*KIT1) (ACDelco #24230298) N257 (M32) 2003-2003 01
368 VALVE, 2-3 SHFT (*KIT1) 2003-2007
369 VALVE, 2-3 SHUTTLE (*KIT1) 2003-2007
370 SPRING, 1-2 ACCUM VLV (*KIT1) 2003-2007
371 VALVE, 1-2 ACCUM (*KIT1) 2003-2007
372 SLEEVE, 1-2 ACCUM VLV (*KIT1) 2003-2007
374 VALVE, ACTR FEED LIM (*KIT1) 2003-2007
375 SPRING, ACTR FEED LIM VLV (*KIT1) 2003-2007
376 PLUG, ACTR FEED LIM VLV BORE (*KIT1) 2003-2007
377 24230632 VALVE, PRESS CONT SOL (*KIT1) (ACDelco #24230632) N257 (M32) 2003-2003 01
378 08682007 CLAMP, PRESS CONT SOL VLV (*KIT1) (ACDelco #8682007) N257 (M32) 2003-2007 01
380 VALVE, REG APPLY (*KIT1) 2003-2007
381 PLUG, TCC C/VLV BORE (*KIT1) 2003-2007
382 SPRING, 4-3 SEQUENCE VLV (*KIT1) 2003-2007
383 VALVE, 4-3 SEQUENCE (*KIT1) 2003-2007
384 VALVE, 3-4 RLY (*KIT1) 2003-2007
385 VALVE, 3-4 SHFT (*KIT1) 2003-2007
386 SPRING, 3-4 SHFT VLV (*KIT1) 2003-2007
387 VALVE, ABUSE (REV) (*KIT1) 2003-2007
388 SPRING, ABUSE VLV (REV) (*KIT1) 2003-2007
389 VALVE, 3-2 DNSHFT (*KIT1) 2003-2007
390 SPRING, 3-2 DNSHFT VLV (*KIT1) 2003-2007
391 VALVE, 3-2 CONT (*KIT1) 2003-2007
392 SPRING, 3-2 C/VLV (*KIT1) 2003-2007
394 24212327 VALVE, 3-2 SHFT SOL (*KIT1) (4.122) (ACDelco #24212327) N257 (M32) 2003-2007 01
395 08680781 RETAINER, 1-2-3-4 SHFT SOL VLV (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, 2-3 SHFT SOL VLV (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, 3-2 DNSHFT VLV BORE PLUG (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, 3-2 SHFT SOL VLV (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, 3-4 RLY VLV BORE PLUG (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, 3-4 SHFT VLV BORE PLUG (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, ACTR FEED LIM VLV BORE PLUG (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, TCC PWM SOL VLV (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
395 08680781 RETAINER, TCC SIG VLV BORE PLUG (*KIT1) (ACDelco #8680781) N257 (M32) 2003-2007 01
396 24227792 VALVE, TCC PWM SOL (*KIT1) (ACDelco #24227792) N257 (M32) 2003-2007 01
397 SPRING, ISOLATOR VLV (*KIT1) 2003-2007
398 VALVE, ISOLATOR (*KIT1) 2003-2007
900 10471813 SEAL, TCC SOL VLV (O RING) (PART OF 367) (SMALL DIA) (OTR) (*KIT1) (ACDelco #10471813) N257 (M32) 2003-2007 01
K01 24225000 VALVE, CONT (W/BODY ; VLV) (INCLS 340-398, 900) (ACDelco #24225000) N257 (M32) 2003-2007 01
