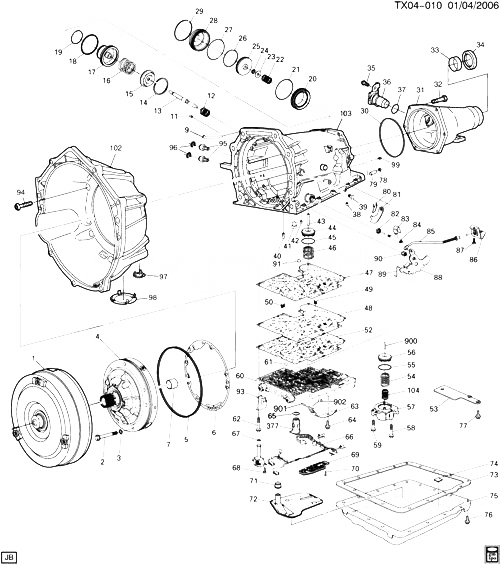

(TX04-010) - 2003 N2 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (M32) PART 2 (4L65-E) CASE RELATED PARTS/ЗАМОК ПАРКОВКИ HUMMER - H2 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24213393 CONVERTER, TORQ (REMAN) N257 (M32) 2003-2003 01
002 24233361 БОЛТ, A/TRNS ГИДРОНАСОС (M8X1.25X60) (INCLS SEAL) (*KIT1) (ACDelco #24233361) N257 (M32) 2003-2003 07
003 24208664 SEAL, A/TRNS ГИДРОНАСОС BOLT (CONTAINS 10 SEALS) (ACDelco #24208664) N257 (M32) 2003-2003 01
004 PUMP, A/TRNS FLUID (SEE GROUP 04.000 МАСЛОНАСОС FOR DETAILED ILLUSTRATED VIEW) 2003-2003
005 24210605 SEAL, A/TRNS ГИДРОНАСОС (*KIT1) (ACDelco #24210605) N257 (M32) 2003-2003 01
006 12337931 GASKET, A/TRNS ГИДРОНАСОС (*KIT1) (ACDelco #12337931) N257 (M32) 2003-2003 01
007 08680027 BUSHING, PROP SHF FRT SLIP YOKE (INSIDE DIA 1.506-1.509) (PART OF TRANS CASE) (4.104) N257 (06) (M32) 2003-2003 01
009 12387951 HOSE, 3/16X25, GM6198 (TRANS VENT) 2003-2003 01
009 24202440 PIPE, A/TRNS VENT (*KIT8) (ACDelco #24202440) N257 (M32) 2003-2003 01
011 08628864 ORIFICE, FWD CLU FEED (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) N257 (M32) 2003-2003 01
012 08642273 SPRING, 2-4 BAND SERVO RTN (ORANGE) (ACDelco #8642273) N257 (M32) 2003-2003 01
013 08680499 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 1 GROOVE IN TAPERED POINT) (4.228) (ACDelco #8680499) N257 (M32) 2003-2003 01
013 08680500 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 2 GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680500) N257 (M32) 2003-2003 01
013 08680501 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY NO GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680501) N257 (M32) 2003-2003 01
014 08642105 RING, 2-4 BAND SERVO 2ND APPL PSTN RET (ACDelco #8642105) N257 (M32) 2003-2003 01
015 08642416 RETAINER, 2-4 BAND SERVO CUSH SPR (ACDelco #8642416) N257 (M32) 2003-2003 01
016 08642539 SPRING, 2-4 BAND SERVO PSTN CUSH (PINK) (ACDelco #8642539) N257 (M32) 2003-2003 03
017 08642613 PISTON KIT, 2-4 BAND SERVO 2ND APPLY (W/RINGS) (*KIT5) (ACDelco #8642613) N257 (M32) 2003-2003 01
018 RING, 2-4 BAND SERVO 2ND APPL PSTN INR FLUID SEAL (*KIT1, KIT5) 2003-2003
019 RING, 2-4 BAND SERVO 2ND APPL PSTN OTR FLUID SEAL (*KIT1, KIT5) 2003-2003
020 08673041 HOUSING, 2-4 BAND SERVO 2ND APPL (.55) (ACDelco #8673041) N257 (M32) 2003-2003 01
021 08642112 SEAL, 2-4 BAND SERVO 2ND APPL PSTN HSG (O RING) (*KIT1) (ACDelco #8642112) N257 (M32) 2003-2003 01
022 24207758 SPRING, 2-4 BAND SERVO PSTN (ACDelco #24207758) N257 (M32) 2003-2003 03
023 08642107 WASHER, 2-4 BAND SERVO PIN (11.17 ID X 22.0 OD X 2.30 THK) (ACDelco #8642107) N257 (M32) 2003-2003 03
024 09415640 RETAINER, SNAP RING BOWED EXT.FITS SHFT 7/16 PL (OUTPUT SHF) (ACDelco #9415640) 2003-2003 AR
025 PISTON, 2-4 BAND SERVO 4TH APPLY (CSTG) 2003-2003
026 08642480 RING, 2-4 BAND SERVO PSTN FLUID SEAL (*KIT1) (ACDelco #8642480) N257 (M32) 2003-2003 01
027 08647351 SEAL, 2-4 BAND SERVO CVR (O RING) (PART OF 28) (*KIT1) (ACDelco #8647351) N257 (M32) 2003-2003 01
028 08642979 COVER, 2-4 SERVO (W/SEAL) (INCLS 27) (INCLS RING) (4.241) (ACDelco #8642979) N257 (M32) 2003-2003 01
029 24232065 RING, 2-4 BAND SERVO CVR RET (ACDelco #24232065) N257 (M32) 2003-2003 01
030 24208660 SEAL, A/TRNS CASE EXTN (*KIT1) (ACDelco #24208660) N257 (M32) 2003-2003 01
031 EXTENSION, A/TRNS CASE (NOT REQUIRED) 2003-2003
032 08680874 БОЛТ, A/TRNS CASE EXTN (M10X1.5X33.4) (4.265) N257 (M32) 2003-2003 04
033 BUSHING, PROP SHF FRT SLIP YOKE (NOT REQUIRED) 2003-2003
034 SEAL, PROP SHF FRT SLIP YOKE OIL (NOT REQUIRED) (*KIT1) 2003-2003
035 БОЛТ, VEH SPD SEN (NOT REQUIRED) 2003-2003
036 ДАТЧИК, VEH SPD (NOT REQUIRED) 2003-2003
037 SEAL, VEH SPD SEN (O RING) (NOT REQUIRED) 2003-2003
038 08628864 ORIFICE, 3RD ACCUM BL (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) N257 (M32) 2003-2003 01
039 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (*KIT1) (ACDelco #444613) 2003-2003 AR
040 08634400 VALVE, 3RD ACCUM BALL CHK (*KIT8) (ACDelco #8634400) N257 (M32) 2003-2003 01
041 08654581 PIN, 2-4 BAND ANC (ACDelco #8654581) N257 (M32) 2003-2003 01
042 08663890 VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (DOUBLE ORIFICE) (W/BALL) (*KIT8) (ACDelco #8663890) N257 (M32) 2003-2003 01
043 08628273 PIN, 3-4 ACCUM PSTN (4.226) (ACDelco #8628273) N257 (M32) 2003-2003 01
044 PISTON, 3-4 ACCUM (*KIT1, KIT6, KIT9) 2003-2003
045 24206509 RING, 3-4 ACCUM PSTN FLUID SEAL (*KIT1, KIT9) (ACDelco #24206509) N257 (M32) 2003-2003 01
046 08639074 SPRING, 3-4 ACCUM PSTN (BLUE) (ACDelco #8639074) N257 (M32) 2003-2003 01
047 GASKET, C/VLV BODY (*KIT1, KIT4) 2003-2003
048 24241783 PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24241783) N257 (M32) 2003-2003 01
049 24209144 FILTER, SHFT SOL VLV FLUID (ACDelco #24209144) N257 (M32) 2003-2003 01
050 24209145 FILTER, PRESS CONT SOL VLV FLUID (ACDelco #24209145) N257 (M32) 2003-2003 01
052 GASKET, C/VLV BODY SPCR PLT (*KIT1, KIT4) 2003-2003
053 08682792 COVER, A/TRNS CASE FLUID PASG (4.265) (ACDelco #8682792) N257 (M32) 2003-2003 01
054 24209794 SPRING, 1-2 ACCUM PSTN (VIOLET) (OTR) (*KIT7) (ACDelco #24209794) N257 (M32) 2003-2003 01
054 24220146 SPRING, 1-2 ACCUM PSTN (INNER) (YELLOW) (*KIT7) (ACDelco #24220146) N257 (M32) 2003-2003 01
055 24206509 RING, 1-2 ACCUM PSTN FLUID SEAL (*KIT1, KIT7, KIT9) (ACDelco #24206509) N257 (M32) 2003-2003 01
056 PISTON, 1-2 ACCUM (*KIT6, KIT7, KIT9) 2003-2003
057 24219935 COVER, 1-2 ACCUM (INCLS 900) (INCLS PIN) (*KIT5) (ACDelco #24219935) N257 (M32) 2003-2003 01
058 11506078 БОЛТ, HFH M6X1X65 9.8 PL (ACCUM CVR) 2003-2003 03
059 11503870 БОЛТ, HEX M6X1X35 10.9 PC (FWD CLU ACCUM CVR) (ACDelco #11503870) 2003-2003 03
060 24225000 VALVE, CONT (W/BODY ; VLV) (SEE КЛАПАН УПРАВЛЕНИЯ ILLUSTRATION) (ACDelco #24225000) N257 (M32) 2003-2003 01
061 00104918 BALL, 1/4 DIA, CHROME STL (ACDelco #104918) 2003-2003 AR
062 08680741 БОЛТ, VLV BODY (M6X1X54.4) (ACDelco #8680741) N257 (M32) 2003-2003 03
063 08642247 DETENT, MAN SHFT (INCL 901) (INCLS PIN) (ACDelco #8642247) N257 (M32) 2003-2003 01
064 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (SPR TO VB) (ACDelco #11508687) 2003-2003 01
065 SEAL, WRG HARN PASS-THRU CONN O-RING (PART OF 66) 2003-2003
066 24234280 HARNESS, A/TRNS WRG (INCLS 65, 67) (NON-ISS) (W/TCC VALVE) (ACDelco #24234280) N257 (06) 2003-2003 01
066 24234280 HARNESS, A/TRNS WRG (INCLS 65, 67) (NON-ISS) (W/TCC VALVE) (2.480) (ACDelco #24234280) N257 (06) 2003-2003 01
067 SEAL, TCC SOL VLV (O RING) (PART OF 66) 2003-2003
068 11503780 БОЛТ, LG HEX FLGD HD M6X1X12 9.8 PC (TCC SOL VLV) 2003-2003 02
069 24219581 SWITCH, A/TRNS FLUID PRESS MAN VLV POSN (INCLS TRANS FLUID TEMP (TFT) SENSOR) (ACDelco #24219581) N257 (06) 2003-2003 01
070 08680764 БОЛТ, A/TRNS FLUID PRESS MAN VLV POSN SW (M6X1X17.7) (ACDelco #8680764) N257 (06) 2003-2003 02
071 SEAL, A/TRNS FLUID FLTR (*KIT3) 2003-2003
072 FILTER, A/TRNS FLUID (*KIT3) 2003-2003
073 08654799 GASKET, A/TRNS FLUID PAN (PART OF 75) (*KIT3) (ACDelco #8654799) N257 (M32) 2003-2003 01
074 29535617 MAGNET, A/TRNS FLUID PAN (PART OF 75) (4.105) (ACDelco #29535617) N257 (M32) 2003-2003 01
075 24229658 PAN KIT, A/TRNS FLUID (INCLS 73, 74) (76.6MM DEEP) (INCLS GASKET) (DRAIN PLUG NOT REQUIRED) (ACDelco #24229658) N257 (M32) 2003-2003 01
076 24231519 БОЛТ, A/TRNS FLUID PAN (ACDelco #24231519) N257 (M32) 2003-2003 16
077 08680764 БОЛТ, FLUID PASG CVR (SPACER SUPPORT PLATE) (M6X1X17.7) (4.265) (ACDelco #8680764) N257 (M32) 2003-2003 03
078 08620318 PLUG, PARK PAWL SHF HOLE (PART OF 79) (.38 DIA) (ACDelco #8620318) N257 (M32) 2003-2003 01
079 08669911 PAWL KIT, PARK (INCLS 78, 81) (INST SHT, PAWL, PLUG ; SHF) (ACDelco #8669911) N257 (M32) 2003-2003 01
080 08642193 SPRING, PARK PAWL (ACDelco #8642193) N257 (M32) 2003-2003 01
081 PAWL, PARK (PART OF 79) 2003-2003
082 08657163 SEAL, MAN SHFT SHF (PART OF 84) (*KIT1, KIT8) (ACDelco #8657163) N257 (M32) 2003-2003 01
083 08642246 RETAINER, MAN SHFT SHF (ACDelco #8642246) N257 (M32) 2003-2003 01
084 24235194 SHAFT KIT, MAN SHFT (INCLS 82) (128.2MM) (LONG) (INCLS SEAL) (ACDelco #24235194) N257 (M32) 2003-2003 01
085 24227480 ACTUATOR, PARK PAWL (INCLS ACTUATOR, ROD ; SPRINGS) (ACDelco #24227480) N257 (M32) 2003-2003 01
086 08667574 BRACKET, PARK PAWL ACTR (ACDelco #8667574) N257 (M32) 2003-2003 01
087 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (PARK PAWL ACTR BRKT) (ACDelco #11508687) 2003-2003 02
088 24222404 LEVER, MAN SHFT DTNT (ACDelco #24222404) N257 (M32) 2003-2003 01
089 08680731 LINK, MAN VLV (*KIT1) (ACDelco #8680731) N257 (M32) 2003-2003 01
090 24222403 ГАЙКА, MAN SHFT DTNT LVR (M10X1.5X10) (FLANGED) (ACDelco #24222403) N257 (M32) 2003-2003 01
091 00104918 BALL, 1/4 DIA, CHROME STL (NO. 10 CHECK BALL) (ACDelco #104918) 2003-2003 AR
093 24209927 STOP, TRANS FLUID LVL IND N257 (M32) 2003-2003 01
094 24233360 БОЛТ, T/CV HSG (M10X1.5X45) (TORX) (ACDelco #24233360) N257 (M32) 2003-2003 08
095 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS 96) (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (*KIT8) (ACDelco #24233366) N2 2003-2003 02
096 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 95) (EXPANDING SPRING WIRE) (*KIT8) (ACDelco #24205103) N2 2003-2003 01
097 24205899 PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) N257 (M32) 2003-2003 01
098 24205900 COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) N257 (M32) 2003-2003 01
099 08663707 ORIFICE, LUB FLUID (4.3MM DIA) (*KIT8) (ACDelco #8663707) N257 (M32) 2003-2003 01
100 24233099 PLUG, A/TRNS FLUID PAN DRN (INCLS 101) (ACDelco #24233099) N257 (M32) 2003-2003 01
101 SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (PART OF 100) 2003-2003
102 24206953 HOUSING, T/CV (ACDelco #24206953) N257 (M32) 2003-2003 01
103 CASE KIT, A/TRNS (*KIT8) 2003-2003
104 24220146 SPRING, 1-2 ACCUM PSTN (YELLOW) (*KIT7) (ACDelco #24220146) N257 (M32) 2003-2003 01
377 24230632 VALVE, PRESS CONT SOL (ACDelco #24230632) N257 (M32) 2003-2003 01
900 08684426 PIN, 1-2 ACCUM PSTN (PART OF 57) (4.226) (ACDelco #8684426) N257 (M32) 2003-2003 01
901 06261174 PIN, MAN SHFT DTNT RLR (PART OF 63) (*KIT1) (4.311) (ACDelco #6261174) N257 (M32) 2003-2003 01
902 ROLLER, MAN SHFT DTNT (PART OF 63) (*KIT1) 2003-2003
K01 24236378 GASKET KIT, A/TRNS SERV (INCLS 2, 5, 6, 18, 19, 21, 26, 27, 30, 34, 39, 44, 45, 47, 52, 55, 82, 89) (W/PISTONS) (ACDelco #24236378) N257 (M32) 2003-2003 01
K03 24208576 FILTER KIT, A/TRNS FLUID (INCLS 71-73) (ACDelco #24208576) (USED W/DEEP PAN 76.6MM) N257 (M32) 2003-2003 01
K04 24221350 GASKET KIT, C/VLV BODY SPCR PLT (INCLS 47, 52) (ACDelco #24221350) N257 (M32) 2003-2003 01
K05 08642613 PISTON KIT, 2-4 BAND SERVO 2ND APPLY (INCLS 17-19) (W/RINGS) (ACDelco #8642613) N257 (M32) 2003-2003 01
K06 24221919 PISTON KIT, 1-2 ; 3-4 ACCUM (INCLS 44, 56) (INCLS 1-2 ; 3-4 ACCUM PSTN ; SEAL ASM) (*KIT7) (ACDelco #24221919) N257 (M32) 2003-2003 01
K07 24220143 ACCUMULATOR, 1-2 (INCLS 54-57, 104, INCLS KIT 6) (ACDelco #24220143) N257 (M32) 2003-2003 01
K08 24247300 CASE KIT, A/TRNS (INCLS 9, 11, 38, 40, 42, 82, 95, 96, 99, 103) (ACDelco #24247300) (FOR 2003 ; PRIOR TRANS MUST ALSO ORDER 24230111 PUMP BODY PKG) N257 (M32) 2003-2003 01
K09 24221919 PISTON KIT, 1-2 ACCUM (INCLS 44, 45, 55, 56) (INCLS 1-2 ; 3-4 ACCUM PSTN ; SEAL ASM) (ACDelco #24221919) N257 2003-2003 01
