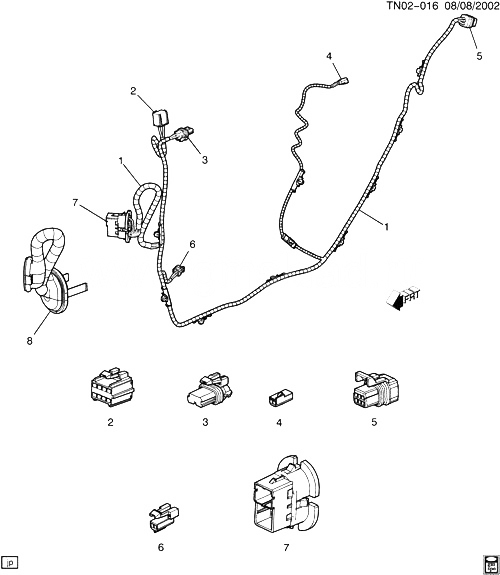

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15292418 |
HARNESS, RR S/D DR WRG (INCLS 2-8) |
N257 (06) |
2003-2004 |
01 |
| 001 |
15846698 |
HARNESS, RR S/D DR WRG (INCLS 2-8) |
N257 (06) |
2003-2004 |
01 |
| 002 |
15306048 |
CONNECTOR, SW-SI WDO (PART OF 1) (BROWN) (8-WAY FEMALE) (GT280) (W/LEADS) (10.777) (ACDelco #PT1208) |
N257 (06) |
2003-2004 |
02 |
| 003 |
12129487 |
CONNECTOR, MOT-WDO REG (PART OF 1) (GRAY) (2-WAY FEMALE W/O LEADS) (10.783) |
N257 |
2003-2006 |
02 |
| 003 |
88988609 |
CONNECTOR, MOT-WDO REG (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) |
N257 (06) |
2003-2004 |
02 |
| 004 |
12085535 |
CONNECTOR, LP-CTSY (SQUARE) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (SQUARE) (2.535) (ACDelco #PT146)
| N257 (06) |
2003-2004 |
02 |
|
| 005 |
88986251 |
CONNECTOR, MOT-DR LK ACTR (PART OF 1) (6-WAY FEMALE) (W/LEADS) (ACDelco #PT1571) |
N257 |
2003-2006 |
02 |
| 006 |
12101825 |
CONNECTOR, SPKR-RDO (INDEX TAB CTR CAVITY A;B) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) |
N257 (06) |
2003-2004 |
02 |
| 007 |
12177258 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 1) (17-WAY MALE W/O LEADS) (13.100) |
N257 (06) |
2003-2004 |
02 |
| 008 |
15355577 |
GROMMET, R/D DR WRG HARN (PART OF 1) |
N2 |
2003-2007 |
01 |
