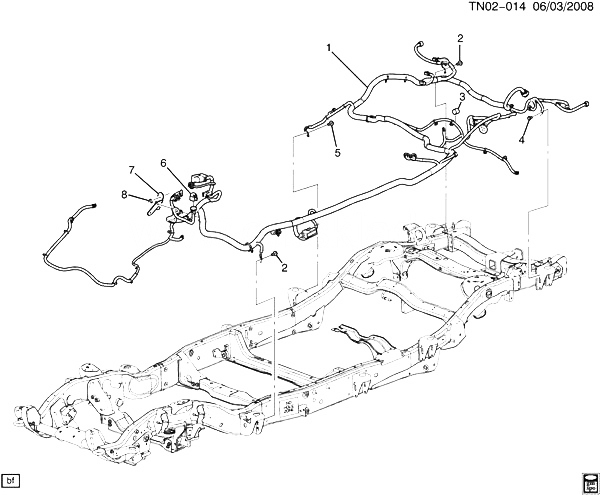

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15195468 |
HARNESS, CHAS WRG (INCLS 3, 6) |
N257 (06) (Z83) |
2003-2003 |
01 |
| 001 |
15195468 |
HARNESS, CHAS WRG (INCLS 3, 6) |
N257 (06) (ZM6) |
2003-2003 |
01 |
| 002 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS RR WRG HARN GRD)
|
2003-2009 |
02 |
|
| 003 |
12112421 |
DIODE, M/FUNC (PART OF 1) (AED05021-100 1AMP) |
N257 (06) (ZM6) |
2003-2004 |
01 |
| 004 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG HARN TRLR LEAD)
|
2003-2009 |
01 |
|
| 005 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS FRT WRG HARN GND)
|
2003-2009 |
01 |
|
| 006 |
15319851 |
RELAY, AUTO LVL CONT (PART OF 1) (GRAY) (HIGH CURRENT) (4-PIN) (3.670) (ACDelco #212-559)
| N257 (06) (ZM6) |
2003-2004 |
01 |
|
| 007 |
15045897 |
BRACKET, CHAS FRT WRG HARN |
N257 |
2003-2007 |
01 |
| 008 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (CHAS FRT WRG HARN BRKT) (8.921) |
|
2003-2009 |
02 |
