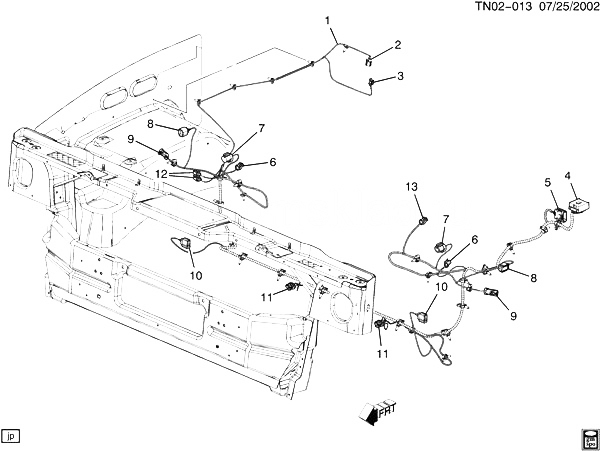

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15231086 |
HARNESS, FWD LP WRG (INCLS 2-12) |
N257 (06) |
2003-2004 |
01 |
| 002 |
88953267 |
CONNECTOR, MOT-WSWA PUMP (PART OF 1) (2-WAY FEMALE W/LEADS) (ACDelco #PT1616) |
N257 (06) |
2003-2004 |
01 |
| 003 |
88987993 |
CONNECTOR, SW-WSWA SOLV LVL (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (4.651) (ACDelco #PT1798) |
N257 (06) |
2003-2004 |
01 |
| 004 |
12193914 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (BLACK) (32-WAY FEMALE W/O LEADS) |
N257 (06) |
2003-2004 |
01 |
| 005 |
88986246 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (14-WAY MALE) (W/LEADS) (2.342) |
N257 (06) |
2003-2004 |
01 |
| 006 |
15306302 |
CONNECTOR, СИГНАЛ (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (4.710) (ACDelco #PT1357) (WHEN REPLACING СИГНАЛ MATING CONN MAY ALSO REQUIRE REPLACEMENT) |
N257 (06) |
2003-2004 |
02 |
| 007 |
12117260 |
CONNECTOR, LP-HDLP (PART OF 1) (BLUE) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT433) |
N257 |
2003-2009 |
02 |
| 008 |
88986266 |
CONNECTOR, LP-PARK ; T/SIG (PART OF 1) (3-WAY FEMALE W/LEADS) (ACDelco #PT1586)
| N257 (06) |
2003-2004 |
02 |
|
| 009 |
12167120 |
CONNECTOR, LP-SI MKR (OVAL) (PART OF 1) (BLACK) (2-WAY MALE) (W/LEADS) (OVAL) (4.720) (ACDelco #PT786) |
N2 |
2003-2008 |
02 |
| 010 |
88986265 |
CONNECTOR, LP-DAYTIME RUNNING (PART OF 1) (2-WAY FEMALE W/LEADS) (ACDelco #PT1591)
| N257 (06) |
2003-2004 |
02 |
|
| 011 |
88986247 |
CONNECTOR, SEN-INFL RST ARMING (PART OF 1) (2-WAY) (FEMALE W/LEADS) (2.342) (ACDelco #PT1575) |
N257 (06) |
2003-2004 |
02 |
| 012 |
12101856 |
CONNECTOR, SEN-AMB AIR TEMP (PART OF 1) (GREEN) (2-WAY FEMALE) (W/LEADS) (OUTSIDE) (2.535) (ACDelco #PT248) |
N257 |
2003-2008 |
01 |
| 013 |
12102747 |
CONNECTOR, SEN-ENG OIL LVL (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
N257 (06) |
2003-2004 |
03 |
