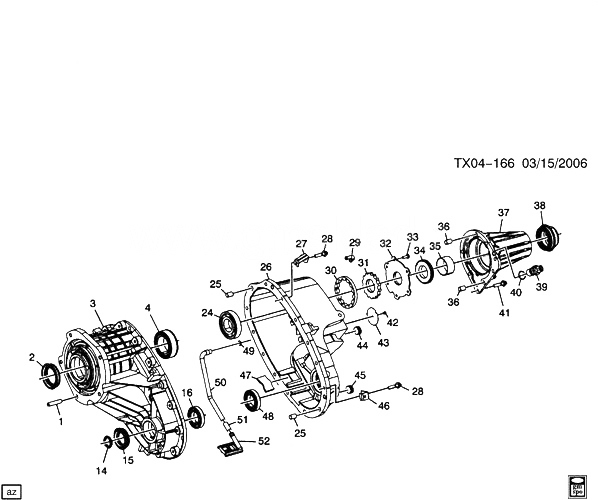

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88935668 |
STUD, TRFER CASE ADAP (M10X1.5X18) |
T155 (NR9) |
2008-2009 |
05 |
| 002 |
88935671 |
SEAL, TRFER CASE INPUT SHF (OUTER)
| T1 |
2006-2009 |
01 |
|
| 003 |
88962353 |
CASE, TRFER (FRT HALF) (4.537) |
T155 (NR9) |
2008-2009 |
01 |
| 004 |
09442326 |
BEARING, TRFER CASE FRT INPUT (DOUBLE ROW BALL BEARING) (ACDelco #9442326) |
T1 |
2006-2009 |
01 |
| 014 |
12544077 |
SEAL, TRFER CASE (SHAFT TO YOKE) |
T155 (NR9) |
2006-2009 |
01 |
| 015 |
88935670 |
SEAL, TRFER CASE FRT OUTPUT SHF
| T1 |
2006-2009 |
01 |
|
| 016 |
89059657 |
BEARING, TRFER CASE FRT OUTPUT SHF FRT
| T1 (NR9) |
2008-2009 |
01 |
|
| 024 |
|
BEARING, TRFER CASE FRT OUTPUT SHF RR |
|
2006-2009 |
|
| 025 |
88935651 |
PIN, TRFER CASE LOC (12.3MM OD, 18.65MM LG) |
T155 (NR9) |
2006-2009 |
02 |
| 026 |
88962348 |
CASE, TRFER (RR HALF) |
T155 (NR9) |
2008-2009 |
01 |
| 027 |
88958906 |
BRACKET, TRFER CASE (MAINSHAFT SIDE) |
T1 |
2006-2009 |
01 |
| 028 |
89059624 |
SCREW, PAN HEAD, #10-32, 0.25 LENGTH, 0.32 OD, STL, ZP (TRFER CASE) |
|
2006-2009 |
01 |
| 029 |
89059625 |
PIPE, TRFER CASE VENT |
T1 |
2006-2009 |
01 |
| 030 |
|
GEAR, TRFER CASE O/PMP DRV (PART OF 31) |
|
2006-2009 |
|
| 031 |
12384994 |
GEAR KIT, TRFER CASE O/PMP (INCLS 30)
| T155 (NR9) |
2008-2009 |
01 |
|
| 032 |
88935676 |
COVER, TRFER CASE O/PMP
| T1 |
2006-2009 |
01 |
|
| 032 |
88935676 |
COVER, TRFER CASE O/PMP
| T155 (NR9) |
2008-2009 |
01 |
|
| 033 |
11513699 |
SCREW, PAN HD, TORX, M6X1X18, 12 O.D., HD PT, 9.8, PE (TRFER CASE O/PMP CVR) |
|
2006-2009 |
06 |
| 034 |
88935681 |
WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (4.329)
| T1 |
2008-2009 |
01 |
|
| 034 |
88935681 |
WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR
| T1 |
2008-2009 |
01 |
|
| 035 |
|
BUSHING, TRFER CASE RR EXTN (PART OF 37) |
|
2006-2009 |
|
| 036 |
88935651 |
PIN, TRFER CASE LOC (12.3MM OD, 18.65MM LG) |
T155 (NR9) |
2006-2009 |
02 |
| 037 |
88962349 |
RETAINER, TRFER CASE RR OUTPUT SHF RR BRG (INCLS 35) |
T1 (NR9) |
2006-2009 |
01 |
| 038 |
88935685 |
SEAL, TRFER CASE RR OUTPUT SHF
| T1 |
2006-2009 |
01 |
|
| 039 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (ACDelco #213-347)
| T1 |
2006-2009 |
AR |
|
| 039 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347)
| T1 |
2006-2009 |
AR |
|
| 040 |
24234215 |
SEAL, A/TRNS INPUT SPD SEN (O RING) (ACDelco #24234215) |
T1 |
2006-2009 |
01 |
| 041 |
11515759 |
БОЛТ, FLG HD (M8-1.25X35)9.8 ZOR (TRFER CASE) |
|
2006-2009 |
23 |
| 042 |
|
SCREW, IDENTIFICATION TAG |
|
2006-2009 |
|
| 043 |
|
TAG, TRFER CASE IDENT |
|
2006-2009 |
|
| 044 |
89059626 |
PLUG, TRFER CASE OIL FILL |
T155 (NR9) |
2008-2009 |
01 |
| 045 |
89059626 |
PLUG, TRFER CASE OIL DRN |
T1 |
2006-2009 |
01 |
| 046 |
88935682 |
BRACKET, TRFER CASE (FRT SHAFT SIDE) |
T155 (NR9) |
2008-2009 |
01 |
| 047 |
89059628 |
MAGNET, TRFER CASE CHIP COLLECTOR (4.105) |
T155 (NR9) |
2008-2009 |
01 |
| 048 |
12547173 |
BEARING, RR OUTPUT MAIN SHF RR (FRT RR OUTPUT SHF RR) (4.520) |
T155 (NR9) |
2008-2009 |
01 |
| 049 |
88935680 |
SEAL, TRFER CASE O/PMP SUC PIPE |
T1 |
2006-2009 |
01 |
| 050 |
88935656 |
PIPE, TRFER CASE O/PMP SUC (INCLS 51, 52)
| T155 (NR9) |
2008-2009 |
01 |
|
| 051 |
09439340 |
HOSE, FUEL OIL, 11/32X25, GM-6165M (PART OF 50) |
|
2006-2009 |
AR |
| 052 |
12478085 |
SCREEN, TRFER CASE O/PMP (PART OF 50)
| T155 (NR9, NP4) |
2009-2009 |
01 |
|
