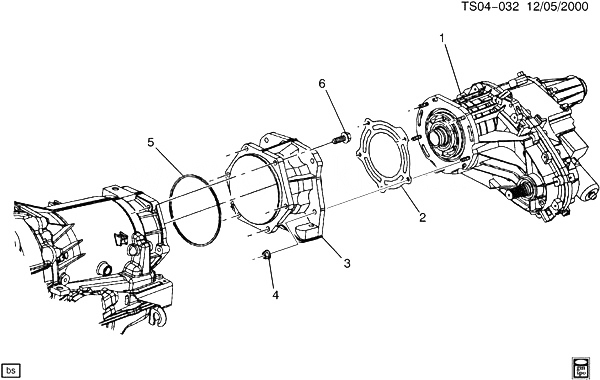

(TS04-032) - 2002-2009 T РАЗДАТОЧНАЯ КОРОБКА/АДАПТЕР CHEVROLET TRAILBLAZER SS (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 24242113 | CASE, TRFER (W/GEARS) (CODE JM) | T155 (NR9) | 2008-2009 | 01 |
| 002 | 15642511 | ПРОКЛАДКА, TRFER CASE ADAP| T1 |
2002-2009 |
01 |
|
| 003 | 15028097 | ADAPTER, TRFER CASE | T1 (M30, M70) | 2006-2009 | 01 |
| 004 | 11514597 | ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383)|
| 2002-2009 |
05 |
|
| 006 | 11515767 | БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRFER CASE ADAP) (T/W 12345493)|
| 2002-2009 |
06 |
|
