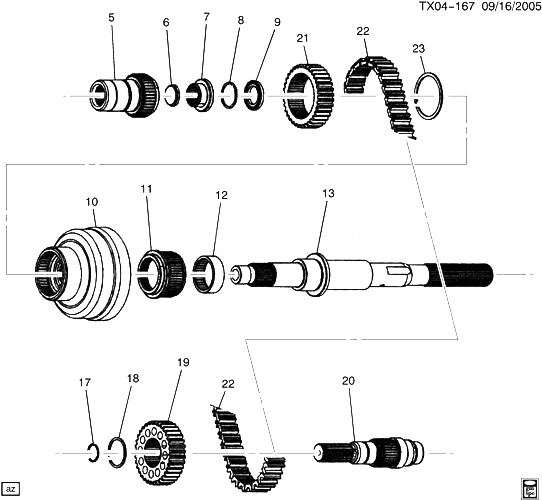

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 005 |
88962336 |
SHAFT, TRFER CASE INPUT (INCLS 7) |
T1 (NR9) |
2006-2009 |
01 |
| 006 |
88935695 |
SEAL, TRFER CASE INPUT SHF (BORE SEAL) (INNER)
| T1 (NR9) |
2008-2009 |
01 |
|
| 007 |
88935694 |
BEARING, TRFER CASE INPUT SHF THR (PART OF 5)
| T1 |
2006-2009 |
01 |
|
| 008 |
88962350 |
WASHER, TRFER CASE |
T155 (NR9) |
2009-2009 |
01 |
| 009 |
88962347 |
WASHER, TRFER CASE INPUT SHF THR BRG |
T1 (NR9) |
2006-2009 |
01 |
| 010 |
88962339 |
CARRIER, FRT/RR DRV DIFF |
T1 |
2006-2009 |
01 |
| 011 |
88962340 |
HUB, TRFER CASE FOUR WHL DRV CLU (INCLS 12) |
T155 (NR9) |
2008-2009 |
01 |
| 012 |
12547173 |
BEARING, RR OUTPUT MAIN SHF RR (PART OF 11) (FRT RR OUTPUT SHF RR) (4.520) |
T155 (NR9) |
2008-2009 |
01 |
| 013 |
88962343 |
SHAFT, TRFER CASE RR OUTPUT |
T155 (NR9) |
2008-2009 |
01 |
| 017 |
12544078 |
RING, TRFER CASE FRT OUTPUT SHF BRG RET (YOKE)
| T1 |
2006-2009 |
01 |
|
| 018 |
12547606 |
RING, TRFER CASE TWO/FOUR WHL DRV DRVN SPKT RET (1.5) (4.537)
| T1 |
2006-2009 |
01 |
|
| 019 |
88935660 |
SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN |
T1 |
2006-2009 |
01 |
| 020 |
88935657 |
SHAFT, TRFER CASE FRT OUTPUT (W/WHEEL) |
T1 |
2006-2009 |
01 |
| 020 |
88962352 |
SHAFT, TRFER CASE FRT OUTPUT |
T1 (NR9) |
2008-2009 |
01 |
| 021 |
88935659 |
SPROCKET, TRFER CASE FRT OUTPUT SHF DRV |
T1 |
2006-2009 |
01 |
| 022 |
89059627 |
CHAIN, TRFER CASE TWO/FOUR WHL DRV
| T1 (NR9) |
2008-2009 |
01 |
|
