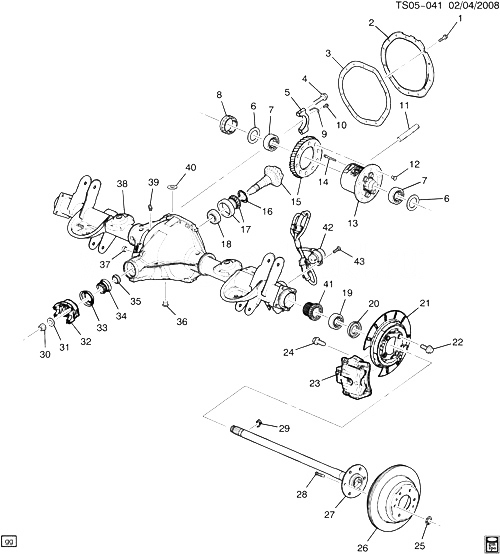

(TS05-041) - 2006-2009 ST155(06) ЗАДНЯЯ ОСЬ В СБОРЕ-DETAILS(G86) CHEVROLET TRAILBLAZER SS (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12471307 БОЛТ, R/AXL HSG CVR (PART OF 2) (M8X1.25X20) ST155 2006-2009 10
002 19133285 COVER KIT, R/AXL HSG (INCLS 1, 3, 37) (INCLS COVER, GASKET, PLUGS, BOLTS) ST1 (M70, GT5, G86) 2008-2009 01
003 26063649 ПРОКЛАДКА, R/AXL HSG CVR (PART OF 2) (14 BOLT HOLES) ST155 (06) (M70, GT5, G86) 2006-2009 01
004 14012675 БОЛТ, DIFF BRG CAP (M12X1.75X74) ST155 (06) (M70, GT5, G86) 2006-2009 04
005 CAP, DIFF BRG (PART OF 38) 2006-2009
006 14012725 SHIM, DIFF BRG (5.59 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012726 SHIM, DIFF BRG (5.64 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012727 SHIM, DIFF BRG (5.69 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012728 SHIM, DIFF BRG (5.74 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012729 SHIM, DIFF BRG (5.79 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012730 SHIM, DIFF BRG (5.84 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012731 SHIM, DIFF BRG (5.89 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012732 SHIM, DIFF BRG (5.94 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012733 SHIM, DIFF BRG (5.99 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012734 SHIM, DIFF BRG (6.05 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012735 SHIM, DIFF BRG (6.10 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012736 SHIM, DIFF BRG (6.15 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012737 SHIM, DIFF BRG (6.20 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012738 SHIM, DIFF BRG (6.25 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012739 SHIM, DIFF BRG (6.30 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012740 SHIM, DIFF BRG (6.35 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012741 SHIM, DIFF BRG (6.40 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012742 SHIM, DIFF BRG (6.45 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012743 SHIM, DIFF BRG (6.50 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
006 14012752 SHIM, DIFF BRG (6.55 MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
007 11505123 BEARING, DIFF (INCLS CUP AND CONE, TIMKEN, JLM506849-JLM506811, 55MM ID X 90MM OD X 25MM THK) (ACDelco #S1198) ST155 (06) (M70, GT5, G86) 2008-2009 02
008 14012753 ГАЙКА, DIFF BRG ADJ (R/AXL) (M86X1.5) ST155 (06) (M70, GT5, G86) 2006-2009 01
009 14012707 LOCK, DIFF BRG ADJ NUT (5.537) ST155 (06) (M70, GT5, G86) 2006-2009 01
010 11513703 БОЛТ, HFH M8X1.25X18 (DIFF BRG ADJ NUT LK) 2006-2009 01
011 14039025 SHAFT, DIFF P/GR (144.78MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
012 14012703 БОЛТ, RR DIFF R/GR (PART OF 15) (M12X1.5X22) (HEX) ST155 (06) (M70, GT5, G86) 2006-2009 12
013 19148969 DIFFERENTIAL, L/SLIP ST155 (06) (M70, GT5, G86) 2008-2008 01
014 12337979 БОЛТ, DIFF P/GR SHF LK (R/AXL) (M10X1.5X59) (CONTAINS 10 LOCK SCREWS) ST155 (M70, GT5, G86) 2006-2009 01
015 88967095 GEAR SET, DIFF RING DRV PINION (INCLS 12, 16, 30, 35) ST155 (06) (M70, GT5, G86) 2006-2009 01
016 00517900 WASHER, DIFF DRV P/GR (PART OF 15) (.890X1.625X.190) ST1 2006-2009 01
017 00457108 BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE, TIMKEN, HM804846-HM804810, 1 7/8 IN ID X 3 3/4 IN OD X 1 3/16 IN THK) (ACDelco #S37) ST155 (06) (M70, GT5, G86) 2006-2009 01
018 12479113 SHIM KIT, DIFF DRV P/GR BRG (.020-.024) (REAR AXLE) ST155 2006-2009 01
018 12479114 SHIM KIT, DIFF DRV P/GR BRG (.025-.029) (REAR AXLE) ST155 2006-2009 01
018 12479115 SHIM KIT, DIFF DRV P/GR BRG (.030-.034) (REAR AXLE) ST155 2006-2009 01
018 12479116 SHIM KIT, DIFF DRV P/GR BRG (.035-.039) (REAR AXLE) ST155 2006-2009 01
018 12479117 SHIM KIT, DIFF DRV P/GR BRG (.040-.043) (REAR AXLE) ST155 2006-2009 01
018 12479118 SHIM KIT, DIFF DRV P/GR BRG (.044-.047) (REAR AXLE) ST155 2006-2009 01
018 12479119 SHIM KIT, DIFF DRV P/GR BRG (.048-.050) (REAR AXLE) ST155 2006-2009 01
018 14038010 SHIM KIT, DIFF DRV P/GR BRG (.5080-.5842MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
018 14038011 SHIM KIT, DIFF DRV P/GR BRG (.6096-.7112MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
018 14038012 SHIM KIT, DIFF DRV P/GR BRG (.7366-.8382MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
018 14038013 SHIM KIT, DIFF DRV P/GR BRG (.8636-.9398MM) ST155 (06) (M70, GT5, G86) 2006-2009 01
019 12479031 BEARING, RR WHL (ACDelco #RW20-10) ST1 2006-2009 02
020 12471686 SEAL, R/AXL SHF (ACDelco #291-315) ST1 2006-2009 02
021 88935749 PLATE, RR BRK BKG ST1 2006-2009 01
021 88935750 PLATE, RR BRK BKG ST1 2006-2009 01
022 15065927 БОЛТ, PARK BRK (M12X1.75X34) ST1 2006-2009 08
023 CALIPER, RR BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
024 15012506 БОЛТ, RR BRK CLPR (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) ST1 2006-2009 04
025 11502737 ГАЙКА, PUSH ON, M12X1.75, PC (RR BRK ROT (PUSH ON)) 2006-2009 04
026 15134671 ROTOR, RR BRK (ACDelco #177-882) ST1 2006-2009 02
027 88965786 SHAFT, R/AXL ST155 (06) (M70, GT5, G86) 2006-2009 01
027 88965787 SHAFT, R/AXL ST155 (06) (M70, GT5, G86) 2006-2009 01
028 09595178 STUD, RR WHL (BOLT-ROUND HEAD, M12X1.5X40, W/SERRATIONS, GM6177M STL, GMW14) ST1 2006-2009 12
029 14012746 LOCK, R/AXL SHF (43.0 X 22.5MM) ST155 (06) (M70, GT5, G86) 2006-2009 02
030 88891763 ГАЙКА, DIFF DRV P/GR (REAR AXLE) (PART OF 15, 32) (M10) ST1 2006-2009 01
031 00517900 WASHER, DIFF DRV P/GR (PART OF 32) (.890X1.625X.190) ST1 2006-2009 01
032 12470384 YOKE KIT, DIFF DRV P/GR (INCLS 30, 31, 33) (TRIPLE LIP) (INCL YOKE, SEAL WA, NUT) (FOR VEHICLES W/TWO PIECE PINION SEAL) ST155 (M70, GT5, G86) 2006-2009 01
033 26064029 SEAL, DIFF DRV P/GR (PART OF 32) (5.545) ST155 (06) (M70, GT5, G86) 2006-2009 01
034 09417781 BEARING, DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, HM88649-HM88610, 1 3/8 IN ID X 2 27/32 IN OD X 1 IN THK) (2.84) (5.484) (ACDelco #S604) ST155 (06) (M70, GT5, G86) 2006-2009 01
035 14012691 SPACER, DIFF DRV P/GR BRG (PART OF 15) (35.5MM I.D. X 16.3MM WIDE) ST155 (06) (M70, GT5, G86) 2006-2009 01
036 12471308 PLUG, R/AXL HSG DRN (W/WASHER) ST155 (06) (M70, GT5, G86) 2006-2009 01
037 00444788 PLUG, HEADLESS SQ SOCKET 1/2 (PART OF 2) 2006-2009 01
038 19121488 HOUSING, R/AXL (INCLS 5) (WHEN USING 19121488 ALSO ORDER QTY 1 12471308 PLUG, R/AXL DRN) ST155 (06) (M70, GT5, G86) 2006-2009 01
039 14056297 CONNECTOR, R/AXL VENT HOSE (CURVED) ST155 (06) (M70, GT5, G86) 2006-2009 01
040 12471607 MAGNET, R/AXL HSG CHIP COLLECTOR (4.105) (ACDelco #12471607) ST155 (06) (M70, GT5, G86) 2006-2009 01
041 12479286 RING, WHL SPD SEN RELUCTOR (R/AXLE) ST1 (06) 2006-2009 02
042 15131391 ДАТЧИК, RR WHL SPD (ACDelco #15131391) ST1 2006-2009 02
043 12479287 БОЛТ, RR WHL SPD SEN (M6X1X24) ST1 2006-2009 02
