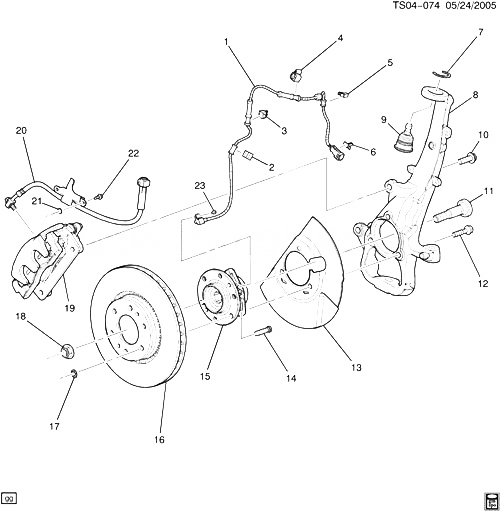

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15158254 |
ДАТЧИК, FRT WHL SPD (PART OF 15) (ACDelco #15158254)
| S1 |
2006-2009 |
02 |
|
| 002 |
15158259 |
CLIP, WHL SPD SEN WIRE (PART OF 15) (12.0MM HOLE) |
ST1 |
2006-2009 |
02 |
| 003 |
15158260 |
CLIP, WHL SPD SEN WIRE (PART OF 15) (11.4MM HOLE) (2 PUSH PIN) |
ST1 |
2006-2009 |
02 |
| 004 |
15158261 |
CLIP, WHL SPD SEN WIRE (PART OF 15) (11MM HOLE) |
ST1 |
2006-2009 |
02 |
| 005 |
15715954 |
CLIP, WHL SPD SEN WIRE (PART OF 15) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) |
ST1 |
2006-2009 |
02 |
| 006 |
12186353 |
RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 15) (BLACK) (7.00/6.25 DIA, SLIDING) |
S1 |
2006-2009 |
02 |
| 007 |
15769998 |
RETAINER, FRT UPR CONT ARM BALL STUD (PART OF 8)
| S1 |
2006-2009 |
02 |
|
| 008 |
18060689 |
KNUCKLE, STRG (INCLS 7, 9) (W/BALL STUD RETAINER)
| S1 (B4U, WA7) |
2009-2009 |
01 |
|
| 008 |
18060690 |
KNUCKLE, STRG (INCLS 7, 9) (W/BALL STUD RETAINER)
| S1 (B4U, WA7) |
2009-2009 |
01 |
|
| 009 |
19133638 |
STUD, FRT UPR CONT ARM BALL (PART OF 8)
| S1 |
2006-2009 |
02 |
|
| 010 |
11517100 |
БОЛТ, FRT BRK CLPR (M14X2X40, 33THD) (8.900)
| S1 |
2006-2009 |
04 |
|
| 011 |
15267597 |
SHAFT, FRT WHL DRV |
S1 (B4U) |
2009-2009 |
02 |
| 012 |
11517155 |
БОЛТ, FRT WHL BRG (8.900) |
S1 |
2006-2009 |
03 |
| 013 |
15753011 |
SHIELD, FRT BRK |
S155 (06) (B4U) |
2006-2009 |
01 |
| 013 |
15753012 |
SHIELD, FRT BRK |
S155 (06) (B4U) |
2006-2009 |
01 |
| 014 |
09595178 |
STUD, FRT WHL (PART OF 15) (BOLT-ROUND HEAD, M12X1.5X40, W/SERRATIONS, GM6177M STL, GMW14)
| S1 |
2006-2009 |
12 |
|
| 015 |
15130858 |
HUB, FRT WHL (W/WHL SPD SEN) (INCLS 1-6, 14, 23) (6.311) (ACDelco #FW121)
| S1 |
2006-2009 |
02 |
|
| 016 |
15294772 |
ROTOR, FRT BRK (325MM) (ACDelco #177-0998) |
S1 (B4U) |
2008-2009 |
02 |
| 017 |
11502737 |
ГАЙКА, PUSH ON, M12X1.75, PC (FRT BRK ROT (PUSH ON)) |
|
2006-2009 |
04 |
| 018 |
10289657 |
ГАЙКА, FRT WHL DRV SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE)
| S1 (B4U) |
2009-2009 |
02 |
|
| 019 |
|
CALIPER, FRT BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2009 |
|
| 020 |
15877294 |
HOSE, FRT BRK |
S1 |
2006-2009 |
01 |
| 020 |
15877295 |
HOSE, FRT BRK |
S1 |
2006-2009 |
01 |
| 021 |
15162944 |
RETAINER, FRT BRK HOSE BRKT (PUSH ON) |
S1 |
2006-2009 |
04 |
| 022 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE BRKT) |
|
2006-2009 |
02 |
| 023 |
15960191 |
БОЛТ, WHL SPD SEN (PART OF 15) (M6X1X12) |
S1 |
2006-2009 |
02 |
