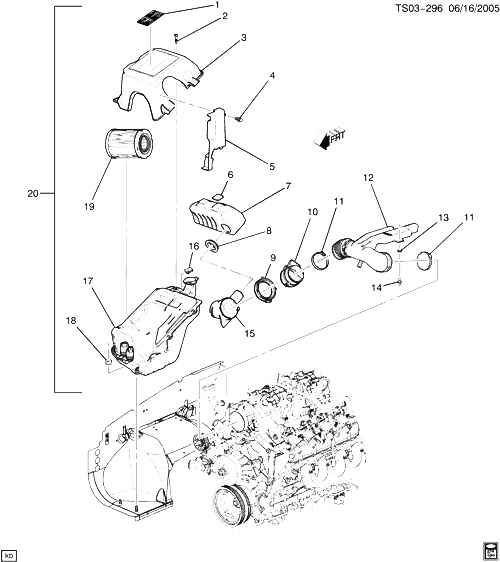

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15103173 |
LABEL, A/C REFRIG WRNG (PART OF 3, 20) (ENGLISH/FRENCH) (MUST HAVE VIN# WHEN ORDERING) |
ST1 |
2006-2009 |
01 |
| 002 |
15045901 |
БОЛТ, A/CL HSG (PART OF 3, 20)
| ST1 (LS2) |
2006-2009 |
04 |
|
| 003 |
15287059 |
HOUSING, A/CL UPR (UPR) (PART OF 20) (INCLS 1, 2) |
ST1 (LS2) |
2008-2009 |
01 |
| 004 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (INT AIR BFL (PUSH IN))
|
2006-2009 |
01 |
|
| 005 |
15914240 |
BAFFLE, A/CL INL |
ST1 (06) (LS2) |
2006-2009 |
01 |
| 006 |
15763604 |
INSULATOR, A/CL HSG (16.065) |
ST1 (LS2) (EXC U68) |
2009-2009 |
04 |
| 007 |
19208049 |
RESONATOR, FRT INT AIR DUCT |
ST1 (LS2) (EXC U52) |
2007-2009 |
01 |
| 008 |
88983028 |
SEAL, A/CL RESO DUCT |
ST1 (LS2) (EXC U68) |
2008-2009 |
01 |
| 009 |
25171042 |
ADAPTER, MASS AIRFLOW SEN INL (PART OF 20)
| ST1 (LS2) |
2008-2009 |
01 |
|
| 010 |
15904068 |
ДАТЧИК, MASS AIRFLOW (PART OF 20) (INCLS AIR TEMP SENSOR) (ACDelco #213-4160)
| ST1 (LS2) |
2008-2009 |
01 |
|
| 011 |
|
CLAMP, A/CL OTLT DUCT (PART OF 12) |
|
2006-2009 |
|
| 012 |
15281860 |
DUCT, A/CL OTLT (W/RESO) (INCLS 11, 13) (INCL INSULATOR) |
ST1 (LS2) |
2008-2009 |
01 |
| 013 |
25346092 |
INSULATOR, A/CL HSG (PART OF 12) (3.270) |
ST1 (06) (LS2) |
2006-2009 |
01 |
| 014 |
11609404 |
БОЛТ, A/CL OTLT DUCT (M6X1X9.5) (HEX, 8 DIA BALL STYLE) (7.477) |
ST1 (LS2) |
2009-2009 |
01 |
| 015 |
19208050 |
ADAPTER, A/CL SNORKEL |
ST1 (LS2) (EXC U68) |
2008-2009 |
01 |
| 016 |
11516372 |
ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (PART OF 20)
|
2006-2009 |
04 |
|
| 017 |
|
CONTAINER, WSWA SOLV (W/PUMP SOLV LVL SW) (СМ. ГРУППУ 16.000 ЕМКОСТЬ/СТЕКЛООЧИСТИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) (PART OF 20) |
|
2006-2009 |
|
| 018 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/CL) (8.915) (ACDelco #11514596)
|
2006-2009 |
02 |
|
| 019 |
15036141 |
ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (PART OF 20) (ACDelco #15036141) |
ST1 (06) (LS2) |
2006-2009 |
01 |
| 020 |
19151269 |
HOUSING, A/CL (INCLS 1-3, 9, 10, 16, 17, 19) (EXC MAF, MAF ADAPTER, PUMPS AND HOSES) |
ST1 (LS2) (EXC U68) |
2008-2009 |
01 |
| 020 |
25783859 |
HOUSING, A/CL (INCLS 1-3, 9, 10, 16, 17, 19) (INCLS CAP, PUMP, NUT, ELEMENT, BOLT, SWITCH, HOSE, ADAPTER, RETAINER, INSULATOR, GROMMET, SEAL, SENSOR) |
ST1 (LS2, U68) |
2006-2009 |
01 |
