| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

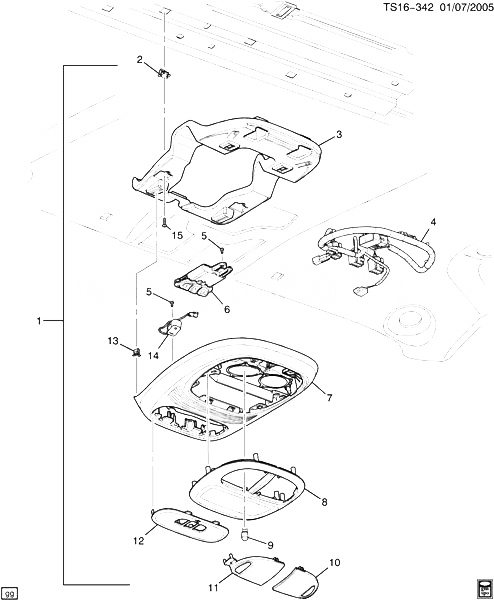

| 001 |
15795803 |
CONSOLE PKG, RF (INCLS 2-15) (GRAY) (BUILT PRIOR TO 08/26/08 W/ONSTAR MIC IN OHC) (FOR 2ND DES SEE 25965215) |
ST155 (06) (DK7, UG1) (EXC CF5, UE1) (1ST DES) |
2008-2008 |
01 |
| 001 |
15808243 |
CONSOLE PKG, RF (INCLS 2-15) (GRAY) (BUILT PRIOR TO 08/26/08 W/ONSTAR MIC IN OHC) (FOR 2ND DES SEE 25965211) |
ST1 (DK7) (EXC CF5, UE1, UG1) (1ST DES) |
2008-2008 |
01 |
| 001 |
15818940 |
CONSOLE PKG, RF (INCLS 2-15) (GRAY) |
ST1 (DK7, UE1) (EXC CF5, UG1) |
2008-2009 |
01 |
| 001 |
25937033 |
CONSOLE PKG, RF (INCLS 2-15) (GRAY) |
ST155 (06) (DK7, UE1, UG1) (EXC CF5) |
2008-2008 |
01 |
| 001 |
25965211 |
CONSOLE PKG, RF (INCLS 2-15) (GRAY) (BUILT 08/26/08 AFTER) (WITH ONSTAR MIC IN HDLNR) (FOR 1ST DES SEE 15808243) |
ST1 (DK7) (EXC CF5, UE1, UG1) (2ND DES) |
2008-2008 |
01 |
| 001 |
25965215 |
CONSOLE PKG, RF (INCLS 2-15) (GRAY) (BUILT 08/26/08 AFTER W/ONSTAR MIC IN HDLNR) (FOR 1ST DES SEE 15795803) |
ST155 (06) (DK7, UG1) (EXC CF5, UE1) (2ND DES) |
2008-2008 |
01 |
| 002 |
|
RETAINER, RF CNSL BKG PLT |
|
2005-2009 |
|
| 003 |
89023744 |
RETAINER, RF CNSL (GRAY) |
ST1 (DK7) |
2008-2009 |
01 |
| 004 |
|
HARNESS, RF CNSL WRG |
|
2005-2009 |
|
| 005 |
|
БОЛТ, RF CNSL |
|
2005-2009 |
|
| 006 |
15015905 |
TRANSMITTER, GARAGE DR OPENER |
ST1 (DK7, UG1) |
2005-2009 |
01 |
| 007 |
|
CONSOLE, RF |
|
2005-2009 |
|
| 008 |
|
FILLER, RF CNSL |
|
2005-2009 |
|
| 009 |
01999382 |
BULB, (RF CNSL LP) (ACDelco #W5WLL) (LONGER LIFE)
|
2005-2009 |
02 |
|
| 010 |
89025698 |
LENS, RF CNSL C/LP |
ST1 (DK7) |
2005-2009 |
01 |
| 011 |
89025697 |
LENS, RF CNSL C/LP |
ST1 (DK7) |
2005-2009 |
01 |
| 012 |
|
FILLER, RF CNSL |
|
2005-2009 |
|
| 013 |
|
RETAINER, RF CNSL BKG PLT |
|
2005-2009 |
|
| 014 |
15241529 |
MICROPHONE, MOBILE TEL (2-WAY CAVITY) |
ST1 (DK7, UE1) |
2006-2009 |
01 |
| 015 |
|
БОЛТ, RF CNSL |
|
2005-2009 |
|
