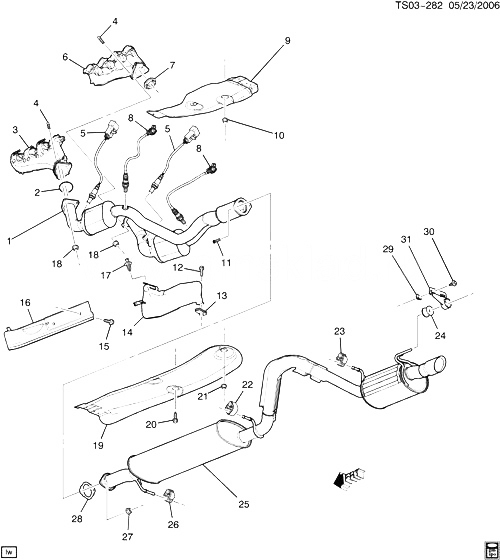

(TS03-282) - 2006-2009 ST155(06) ВЫХЛОПНАЯ СИСТЕМА (LS2/6.0H) CHEVROLET TRAILBLAZER SS (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25887914 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) ST1 (LH6, LS2) 2008-2008 01
001 25887914 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) ST1 (LH6, LS2) 2008-2008 01
002 15077362 SEAL, EXH MANIF PIPE ST1 (06) (LS2, B4U) 2006-2009 01
002 15077362 SEAL, EXH MANIF PIPE ST1 (06) (LS2, WA7) 2008-2009 01
003 КОЛЛЕКТОР, ВЫПУСКНОЙ (СМ. ГРУППУ 00.000 ДВИГАТЕЛЬ В СБОРЕ-КОЛЛЕКТОРЫ И СВЯЗАННЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
004 11589264 STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE) 2006-2009 02
005 12590749 ДАТЧИК, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-3536) ST1 (LS2) 2008-2009 02
006 КОЛЛЕКТОР, ВЫПУСКНОЙ (СМ. ГРУППУ 00.000 ДВИГАТЕЛЬ В СБОРЕ-КОЛЛЕКТОРЫ И СВЯЗАННЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
007 15035747 SEAL, EXH MANIF PIPE ST155 (LS2, B4U) 2006-2009 01
007 15035747 SEAL, EXH MANIF PIPE ST155 (LS2, WA7) 2006-2009 01
008 12609477 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-4240) ST1 (LH6, LS2) 2008-2009 01
008 12612506 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-4241) ST1 (LH6, LS2) 2008-2009 01
009 15886422 SHIELD, CTLTC CONV UPR HT ST1 (06) 2008-2009 01
010 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CTLTC CONV H/SHLD) 2006-2009 05
011 15756879 STUD, EXH PIPE (M10X1.5X40MM) (BUTTON HEAD) (3.690) ST1 2008-2009 02
012 11588564 БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (EXH H/SHLD) 2006-2009 01
013 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (EXH H/SHLD) 2006-2009 01
014 15893982 SHIELD, EXH HT ST1 (06) (LH6, LS2) 2008-2009 01
015 11515754 БОЛТ, HVY HEX HD, M8X1.25X12, 18 O.D., 10.9, ZE (CTLTC CONV H/SHLD) 2006-2009 02
016 15205182 SHIELD, TRANS HT (MOUNTS TO RH SIDE OF TRANS) (3.690) ST1 2008-2009 01
017 25642453 RETAINER, EXH H/SHLD (6MM DIA) (3.671) ST1 2006-2009 01
018 15032594 ГАЙКА, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) ST1 2006-2009 AR
019 15821715 SHIELD, EXH MUFF HT ST155 2006-2009 01
020 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (EXH MUFF H/SHLD) 2006-2009 01
021 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EXH MUFF H/SHLD) 2006-2009 02
022 15120137 INSULATOR, EXH MUFF HNGR (CENTER HANGER) ST155 2008-2009 01
023 15120136 INSULATOR, EXH MUFF HNGR (W/2 HANGER HOLES) ST1 2008-2009 01
024 15786931 INSULATOR, EXH RR MUFF HNGR (PART OF 31) ST155 (06) (LS2) 2008-2009 01
025 25839185 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) ST155 (LS2, B4U) 2006-2009 01
025 25839185 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) ST155 (LS2, B4U) 2006-2009 01
025 25839185 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) ST155 (LS2, B4U) 2006-2009 01
026 15292363 INSULATOR, EXH MUFF HNGR ST155 2006-2009 01
027 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF) 2006-2009 02
028 15036012 ПРОКЛАДКА, EXH MANIF PIPE ST155 2006-2009 01
029 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (PART OF 31) 2006-2009 02
030 11519388 БОЛТ, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (PART OF 31) 2006-2009 02
031 15786935 BRACKET KIT, EXH MUFF RR HNGR (INCLS 24, 29, 30) (INCLUDES INSULATOR) ST155 (06) (LS2) 2006-2009 01
