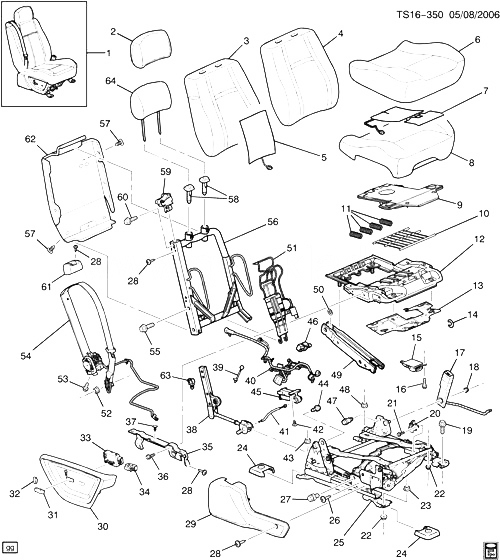

(TS16-350) - 2006-2009 ST(06) СИДЕНЬЕ ПАССАЖИРА/ПОДУШКА СИДЕНЬЯ (AR9,V40) CHEVROLET TRAILBLAZER SS (2WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15810762 SEAT, PASS (EBONY) (SEAT INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 25796576) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) 2007-2007 01
001 15810767 SEAT, PASS (PEWTER) (SEAT INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 25796579) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (1ST DES) 2007-2007 01
001 15810768 SEAT, PASS (CASHMERE) (SEAT INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 25796580) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (1ST DES) 2007-2007 01
001 15810798 SEAT, PASS (GRAY) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 282) (EXC AX4) 2007-2007 01
001 15810799 SEAT, PASS (CASHMERE) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 272) (EXC AX4) 2007-2007 01
001 15810800 SEAT, PASS (EBONY) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 482) (EXC AX4, B4U) 2007-2007 01
001 15810802 SEAT, PASS (GRAY) ST1 (AK5, AR9, KA1, X88, YC6, 282) (EXC AL0, AX4) 2006-2007 01
001 15810803 SEAT, PASS (CASHMERE) ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) 2006-2007 01
001 15810803 SEAT, PASS (CASHMERE) ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) 2007-2007 01
001 15810804 SEAT, PASS (EBONY) ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4) 2007-2007 01
001 15932946 SEAT, PASS (EBONY) ST1 (AK5, AL0, AR9, B4U, KA1, V40, X88, YC6, 482) (EXC AX4) 2007-2007 01
001 25796576 SEAT, PASS (EBONY) (SEAT INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 15810762) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (2ND DES) 2007-2007 01
001 25796578 SEAT, PASS (GRAY) (SEAT INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 15810766) ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (2ND DES) 2007-2007 01
001 25796579 SEAT, PASS (PEWTER) (SEAT INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 15810767) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (2ND DES) 2007-2007 01
001 25796580 SEAT, PASS (CASHMERE) (SEAT INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 15810768) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (2ND DES) 2007-2007 01
001 25803157 SEAT, PASS (EBONY) ST1 (AK5, AR9, B4U, V40, X88, YC5, 482) (EXC AX4, KA1) 2007-2009 01
002 19167588 COVER, P/SEAT H/RST (EBONY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042178) ST1 (06) (48H) (2ND DES) 2007-2007 01
002 19167590 COVER, P/SEAT H/RST (GRAY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042177) ST1 (28H) (2ND DES) 2007-2007 01
002 89042178 COVER, P/SEAT H/RST (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (1ST DES SEE 19167588) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) 2007-2007 01
002 89042202 COVER, P/SEAT H/RST (GRAY) ST1 (282) 2005-2009 01
002 89042203 COVER, P/SEAT H/RST (CASHMERE) ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) 2006-2007 01
002 89042203 COVER, P/SEAT H/RST (CASHMERE) ST1 (06) (AK5, AR9, X88, 272) (EXC AX4, KA1) 2006-2007 01
002 89042203 COVER, P/SEAT H/RST (CASHMERE) ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) 2006-2007 01
002 89042203 COVER, P/SEAT H/RST (CASHMERE) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 272) (EXC AX4) 2007-2007 01
003 19151240 PAD, P/SEAT BK CUSH ST1 (AK5, A50, B4U, X88) (EXC AX4) 2006-2009 01
003 19151240 PAD, P/SEAT BK CUSH ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2009 01
003 89042239 PAD, P/SEAT BK CUSH ST1 (EXC B4U) 2005-2009 01
004 19150347 COVER, P/SEAT BK CUSH (EBONY) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 482) (EXC AX4, B4U) 2007-2007 01
004 19150347 COVER, P/SEAT BK CUSH (EBONY) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, B4U, KA1) 2007-2007 01
004 19150347 COVER, P/SEAT BK CUSH (EBONY) ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4) 2007-2007 01
004 19151236 COVER, P/SEAT BK CUSH (SS) (EBONY) ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) 2006-2007 01
004 19151285 COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167862) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) 2007-2007 01
004 19151339 COVER, P/SEAT BK CUSH (GRAY) ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4) 2007-2007 01
004 19151339 COVER, P/SEAT BK CUSH (GRAY) ST1 (AK5, AR9, KA1, X88, YC6, 282) (EXC AL0, AX4) 2007-2007 01
004 19151339 COVER, P/SEAT BK CUSH (GRAY) ST1 (06) (AK5, AL0, AR9, X88, 282) (EXC AX4) 2007-2009 01
004 19151340 COVER, P/SEAT BK CUSH (CASHMERE) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 272) (EXC AX4) 2007-2007 01
004 19151340 COVER, P/SEAT BK CUSH (CASHMERE) ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) 2007-2007 01
004 19151340 COVER, P/SEAT BK CUSH (CASHMERE) ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4, KA1) 2007-2007 01
004 19151340 COVER, P/SEAT BK CUSH (CASHMERE) ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) 2007-2007 01
004 19151344 COVER, P/SEAT BK CUSH (GRAY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167864) ST1 (06) (AK5, AR9, A50, X88, 28H) (EXC AX4) (1ST DES) 2007-2007 01
004 19151345 COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167869) ST1 (06) (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (1ST DES) 2007-2007 01
004 19167862 COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 19151285) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (2ND DES) 2007-2007 01
004 19167864 COVER, P/SEAT BK CUSH (GRAY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 19151344) ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (2ND DES) 2007-2007 01
004 19167865 COVER, P/SEAT BK CUSH (CASHMERE) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 19151346) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (2ND DES) 2007-2007 01
004 19167869 COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 19151345) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (2ND DES) 2007-2007 01
005 88949406 HEATER, P/SEAT BK CUSH ST1 (KA1) 2005-2009 01
006 19151238 COVER, P/SEAT CUSH (SS) (EBONY) ST1 (AK5, AR9, B4U, KA1, X88, 482) (EXC AX4) 2006-2009 01
006 19167867 COVER, P/SEAT CUSH (EBONY) (16.724) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042269) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (2ND DES) 2007-2007 01
006 19167867 COVER, P/SEAT CUSH (EBONY) (16.724) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042269) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (2ND DES) 2007-2007 01
006 19167868 COVER, P/SEAT CUSH (GRAY) (16.724) (SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042249) ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (2ND DES) 2007-2007 01
006 19167870 COVER, P/SEAT CUSH (CASHMERE) (16.724) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042270) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (2ND DES) 2007-2007 01
006 89042249 COVER, P/SEAT CUSH (GRAY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167868) ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (1ST DES) 2007-2007 01
006 89042269 COVER, P/SEAT CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167867) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (1ST DES) 2007-2007 01
006 89042269 COVER, P/SEAT CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167867) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) 2007-2007 01
006 89042270 COVER, P/SEAT CUSH (CASHMERE) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167870) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (1ST DES) 2007-2007 01
006 89042439 COVER, P/SEAT CUSH (GRAY) ST1 (06) (AK5, AR9, X88, Z88, 282) 2007-2009 01
006 89042440 COVER, P/SEAT CUSH (CASHMERE) ST1 (AK5, AR9, KA1, X88, Z88, 272) (EXC AX4) 2006-2007 01
006 89042440 COVER, P/SEAT CUSH (CASHMERE) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 272) (EXC AX4) 2007-2007 01
006 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (06) (AK5, AR9, KA1, X88, 482) (EXC B4U) 2005-2007 01
006 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (AK5, AL0, AR9, KA1, X88, YC6, 482) (EXC AX4, B4U) 2006-2007 01
006 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4, B4U) 2006-2007 01
006 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 482) (EXC AX4, B4U) 2007-2007 01
006 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, B4U, KA1) 2007-2007 01
007 89042164 HEATER, P/SEAT CUSH ST1 (AR9) (EXC AX4) 2005-2009 01
008 PAD, P/SEAT CUSH (PART OF 15) 2006-2009
009 ДАТЧИК, INFL RST FRT PASS PRESENCE (PART OF 15) 2006-2009
010 89043624 WIRE, P/SEAT CUSH PAD ST1 2005-2009 01
011 88948986 ПРУЖИНА, P/SEAT CUSH PAD SUPT ST1 2005-2009 04
012 89043623 FRAME, P/SEAT CUSH ST1 2005-2009 01
013 89045016 BRACKET, INFL RST SEN (POWER PASS.) ST1 2005-2009 01
014 04876466 RING, HOG (F/SEAT CUSH CVR HOG) 2005-2009 16
015 19168633 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 8, 9) ST1 2005-2009 01
016 89042167 БОЛТ, P/SEAT (M4 X 12.5) ST1 (AR9) 2005-2007 02
017 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, X88, Z88, Z89, 27I) 2005-2007 01
017 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, 48H) 2005-2009 01
017 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, AK5, AL0, B4U, KA1, V40, X88, YC6, 482) (EXC AX4) 2007-2007 01
017 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, AK5, AL0, KA1, V40, X88, 482) (EXC AX4, B4U) 2007-2007 01
017 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, AK5, B4U, V40, X88, YC5, 482) (EXC AX4, KA1) 2007-2009 01
017 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, AK5, B4U, X88, 482) (EXC AX4) 2007-2009 01
017 19148786 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (GRAY) ST1 (AR9, 28I) 2005-2009 01
017 19148786 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (GRAY) ST1 (AR9, X88, Z88, 482) 2007-2009 01
018 12531799 ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
019 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (D/SEAT) 2005-2007 01
020 19180158 SENSOR KIT, INFL RST FRT PASS POSN ST1 2005-2009 01
021 89046203 БОЛТ, P/SEAT INFL RST SUPPRESSION MDL (8-32X5/8) ST1 2005-2009 AR
022 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2005-2009 04
023 11519879 ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (P/SEAT) 2005-2009 01
024 15133275 COVER, F/SEAT ADJR FIN (EBONY) (4=PASS SIDE 4=DRVR SIDE) ST1 (27I, 48I) 2005-2009 08
024 15133276 COVER, F/SEAT ADJR FIN (GRAY) (3=PASS SIDE 3=DRVR SIDE) ST1 (28I) 2005-2009 08
024 15133277 COVER, F/SEAT ADJR FIN (CASHMERE) (3=PASS SIDE 3=DRVR SIDE) ST1 (47I) 2005-2007 08
025 89026673 ADJUSTER, P/SEAT (TO SERVICE ADJUSTER WITH SENSOR, ORDER 88982093 SENSOR BRACKET SEPERATELY) (INCLS 32) (6-WAY POWER) (INCLS MOTORS EXC RECL ACTUATOR MOTOR) ST1 (AR9) 2005-2009 01
025 89026673 ADJUSTER, P/SEAT (TO SERVICE ADJUSTER WITH SENSOR, ORDER 88982093 SENSOR BRACKET SEPERATELY) (INCLS 32) (6-WAY POWER) (INCLS MOTORS EXC RECL ACTUATOR MOTOR) ST155 (06) (AR9, AX4, X88) (EXPORT) 2007-2008 01
026 88949560 БОЛТ, P/SEAT RECL (M5X0.8X10) ST1 (A50, AR9) 2005-2007 03
027 88949559 БОЛТ, P/SEAT RECL (ATTACHES MAIN BODY OF RECLINER TO ADJUSTER) (M10X1.50-6G) (SHOULDER BOLT W/BUSHING) ST1 2005-2007 02
028 88949546 БОЛТ, P/SEAT (M4.2X16) (16.686) ST1 (06) (AR9, X88, W49, Z88, Z89) 2005-2007 04
029 89042265 COVER, P/SEAT OTR ADJR LWR FIN (GRAY) ST1 (06) (28H, 282) 2005-2009 01
029 89042266 COVER, P/SEAT OTR ADJR LWR FIN (CASHMERE) ST1 (06) (272) 2005-2009 01
029 89042266 COVER, P/SEAT OTR ADJR LWR FIN (CASHMERE) ST1 (06) (27H, 272) 2005-2009 01
029 89042267 COVER, P/SEAT OTR ADJR LWR FIN (EBONY) ST1 (48H, 482) 2005-2009 01
030 19121432 COVER, P/SEAT OTR ADJR UPR FIN (GRAY) ST1 (AK5, AR9, AX4, X88, 272, 282) (EXPORT) 2006-2009 01
030 19121432 COVER, P/SEAT OTR ADJR UPR FIN (GRAY) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88, 282) (EXC AX4) 2007-2007 01
030 19121433 COVER, P/SEAT OTR ADJR UPR FIN (CASHMERE) ST1 (AR9) 2006-2009 01
030 19121433 COVER, P/SEAT OTR ADJR UPR FIN (CASHMERE) ST1 (AR9, 272) 2006-2009 01
030 19121434 COVER, P/SEAT OTR ADJR UPR FIN (EBONY) ST1 (AR9, 482) 2006-2009 01
030 89042253 COVER, P/SEAT OTR ADJR UPR FIN (GRAY) ST1 (AK5, AR9, KA1, X88, YC6, 282) (EXC AL0, AX4) 2007-2007 01
030 89042254 COVER, P/SEAT OTR ADJR UPR FIN (CASHMERE) ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) 2006-2007 01
031 15256984 KNOB, P/SEAT ADJR SW (EBONY) ST1 2005-2009 01
032 25752511 KNOB, P/SEAT RECL (GRAY) (11.377) ST1 (06) (X88, Z88, Z89, 28I) (EXC AX4) 2006-2009 01
032 25770401 KNOB, P/SEAT RECL (CASHMERE) (11.377) ST1 (AR9, 27I) 2005-2009 01
032 89043626 KNOB, P/SEAT RECL (EBONY) (11.588) ST1 (AR9, 28H, 28I, 48I) 2005-2009 01
033 12451440 SWITCH, P/SEAT ADJR RECL (8-WAY W/O KNOBS/BUTTONS, ADJR RECL) (11.558) ST1 (06) (AK5, AL0, AR9, KA1, V40, X88) (EXC AX4) 2007-2007 01
033 89042262 SWITCH, P/SEAT ADJR RECL (11.588) ST1 (AR9) 2005-2007 01
034 19121422 SWITCH, P/SEAT LUMBAR CONT (2-WAY) ST1 (AR9) 2006-2009 01
035 89042219 BRACKET, P/SEAT (MANUAL) ST1 (X88, Z88, Z89) 2005-2009 01
035 89042263 BRACKET, P/SEAT (POWER) ST1 2005-2009 AR
036 12470011 БОЛТ, P/SEAT SI INFL RST MDL (M6X1.0X12.4) (16.670) ST1 2005-2009 02
037 88948904 RETAINER, P/SEAT BK CUSH INR FIN PNL (16.716) ST1 2005-2009 06
038 19150345 RECLINER, P/SEAT (POWER) ST1 (AR9) (EXC AX4) 2006-2009 01
038 19151342 RECLINER, P/SEAT (MANUAL) ST1 (AR9, A50) 2006-2009 01
038 89042237 RECLINER, P/SEAT (MANUAL) ST155 (06) (AK5, AR9, B4U, X88) (EXC AX4) 2007-2007 01
038 89042261 RECLINER, P/SEAT (POWER) ST1 (AK5, AR9, B4U) 2006-2007 01
039 89043628 CLIP, P/SEAT ADJR WRG HARN (13.090) ST1 2005-2009 01
040 19121435 HARNESS, P/SEAT ADJR WRG (W/HEAT) ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6) (EXC AX4) 2006-2007 01
040 19121435 HARNESS, P/SEAT ADJR WRG (W/HEAT) ST1 (AK5, AL0, AR9, KA1, X88, 272, 282, 482) (EXC AX4) 2006-2007 01
041 88950998 CABLE, P/SEAT RECL ACTR (W/O POTENTIOMETER) ST1 2005-2009 01
042 RIVIT, (PROCURE LOCALLY) 2006-2009
043 11519879 ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (P/SEAT) 2005-2009 02
044 88949563 БОЛТ, P/SEAT RECL (ATTACHES RECL TO ADJUSTER) (M14 X 64.5) (SHOULDER BOLT, HEX HEAD) ST1 2005-2007 01
045 89039409 MOTOR, P/SEAT RECL ACTR (MOTOR ONLY) (PART OF 19152357 KIT) (ACDelco #89039409) ST1 2005-2009 01
046 89043619 RETAINER, P/SEAT H/RST ST1 2005-2009 01
047 88949561 БОЛТ, P/SEAT ADJR (ATTACHES BACK РАМА TO ADJUSTER INBOARD) ST1 2005-2007 01
048 11588541 NUT ASM - HEX AND CONICAL SPR WA, M12X1.75, GM510M (10) STL CA, GM7111M ZE (P/SEAT) (8.917) 2005-2009 01
049 89039542 BRACKET, P/SEAT RECL (T/W 89039523 WASHER PLASTIC SNAP-ON) (W/SLOT) ST1 2005-2009 01
050 89039523 WASHER, P/SEAT (PLASTIC SNAP-ON) ST1 2005-2009 01
051 89042268 SUPPORT, P/SEAT LUMBAR (2-WAY POWER) (INCLUDES MOTOR) ST1 (AR9, AK5) 2005-2007 01
052 12531799 ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
053 88949554 БОЛТ, P/SEAT BELT BRKT ST1 2005-2007 02
054 19177470 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (EBONY) (EBONY WEBBING W/EBONY BEZEL) ST1 (AR9, 48I) 2005-2009 01
054 19177471 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (GRAY) ST1 (AR9, 28I) 2005-2007 01
055 88983477 БОЛТ, P/SEAT RECL (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) ST1 (AR9, A50) 2005-2007 04
056 19151239 FRAME, P/SEAT BK CUSH ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2009 01
056 89042235 FRAME, P/SEAT BK CUSH ST1 (EXC B4U) 2005-2009 01
057 88948904 RETAINER, P/SEAT BK CUSH INR FIN PNL (16.716) ST1 2005-2009 06
058 89042186 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) ST1 (48I) 2005-2009 01
058 89042187 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) ST1 (47I) 2005-2007 01
058 89042187 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) ST1 (27I) 2006-2007 01
058 89042188 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) ST1 (48I) 2005-2009 01
058 89042189 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) ST1 (27I) 2005-2009 01
058 89043635 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) ST1 (28I) 2005-2009 01
058 89043637 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) ST1 (28I) (EXC AX4) 2005-2009 01
059 88949336 BRACKET, P/SEAT SHLDR BELT RETR ST1 2005-2009 01
060 88983477 БОЛТ, P/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) ST1 2005-2009 01
061 89042245 BEZEL, P/SEAT SHLDR BELT OPG (GRAY) ST1 (X88, Z88, Z89, 28I) 2005-2009 01
061 89042247 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) ST1 (48I) 2005-2009 01
062 88949340 PANEL, P/SEAT BK CUSH INR FIN ST155 (06) (AK5, AR9, B4U, X88) (EXC AX4) 2007-2007 01
062 89045017 PANEL, P/SEAT BK CUSH INR FIN (HARDBACK) ST1 2005-2009 01
063 88949567 CLIP, P/SEAT WRG (6MM) (NYLON, PUSH-IN DELPHI) (HOLDS ONE WIRE) ST1 2005-2009 02
064 88979706 PAD, P/SEAT H/RST ST1 2005-2009 01
