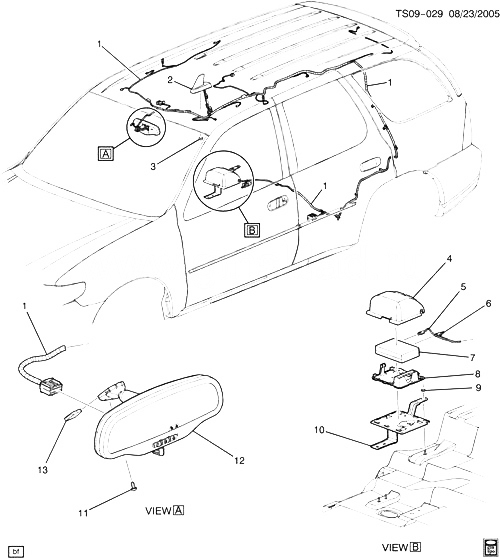

(TS09-029) - 2006-2008 ST155 СИСТЕМА СВЯЗИ ONSTAR(UE1) CHEVROLET TRAILBLAZER SS (2WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, DM LP WRG (INCLS 5, 6) (СМ. ГРУППУ 16.000 ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША И СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК FOR DETAILED ILLUSTRATED VIEW) 2006-2008
002 15837587 АНТЕННА, M/TEL VEH LOC (INCLS 3) (ACDelco #15837587) ST1 (UE1) (EXC U2K) 2007-2008 01
003 ГАЙКА, M/TEL BASE (PART OF 2) 2006-2008
004 15120584 COVER, MOBILE TEL XCVR TR (GRAY) ST155 (UE1, W49, X88, Z88, Z89, 28I) 2006-2007 01
004 15120585 COVER, MOBILE TEL XCVR TR (EBONY) ST155 (UE1, 27I, 48I) 2006-2008 01
005 19116072 CABLE, M/TEL VEH LOC ANT (PART OF 1) (9.769) (ACDelco #19116072) ST1 (UE1) 2007-2008 01
006 19116072 CABLE, M/TEL ANT (PART OF 1) (9.769) (ACDelco #19116072) ST1 (DK7, UE1) (EXC CF5, U42) 2007-2008 01
007 25909995 MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #25909995) (LABELLED W/OEM PN 25909995.) ST1 (UE1) 2007-2007 01
008 25886921 BRACKET, NAVIGATION CTL PROCESSOR ST155 (UE1) 2006-2008 01
009 ГАЙКА, M/TEL XCVR BRKT (PART OF 10) 2006-2008
010 25849755 BRACKET, NAVN RCVR (INCLS 9) ST1 (UE1) 2006-2008 01
011 БОЛТ, I/S RR VIEW MIR (PART OF 12) 2006-2008
012 15144156 MIRROR, I/S RR VIEW (INCLS 11) (INSIDE) ST1 (06) (UE1, VCG) (EXC DD7, DF5) 2006-2008 01
012 15144157 MIRROR, I/S RR VIEW (INCLS 11) (INSIDE) ST1 (06) (UE1) (EXC DD7, DF5, VCG) 2006-2008 01
012 15237545 MIRROR, I/S RR VIEW (INCLS 11) (LT SEN, COMPASS, TEMP, FRT PRESENCE DETECTOR, GPS) ST1 (06) (DF5, UE1, VCG) 2006-2008 01
012 15237546 MIRROR, I/S RR VIEW (INCLS 11) (LT SEN, COMPASS, TEMP, FRT PASS/CHILD PRESENCE DETECTOR, GPS) ST1 (06) (DF5, UE1) (EXC VCG) 2006-2008 01
012 15812021 MIRROR, I/S RR VIEW (INCLS 11) ST1 (06) (DD7, UE1) (EXC VCG) 2006-2008 01
012 15812022 MIRROR, I/S RR VIEW (INCLS 11) ST1 (06) (DD7, UE1, VCG) 2006-2008 01
013 20626174 BRACKET, I/S RR VIEW MIR (10.187) ST1 2006-2008 01
