| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

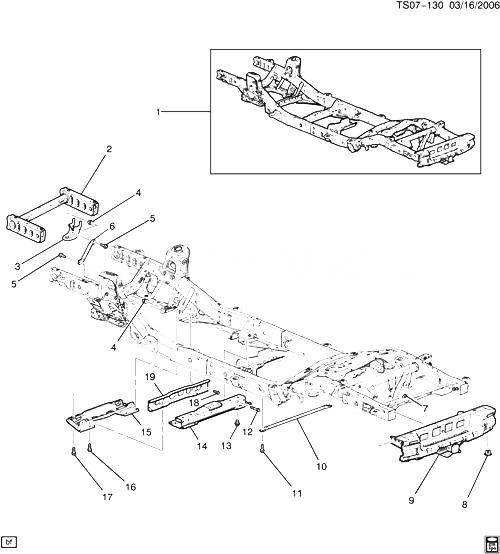

| 001 |
15887727 |
FRAME, CHASSIS (INCLS 12, 13) |
ST155 (06) (LH6, LS2) |
2006-2007 |
01 |
| 002 |
89040431 |
FRAME, FRT HALF (INCLS 3)
| ST1 (06) |
2006-2009 |
01 |
|
| 003 |
15019813 |
BRACKET, RAD SUPT (PART OF 2) |
ST1 |
2006-2009 |
01 |
| 003 |
15019814 |
BRACKET, RAD SUPT (PART OF 2) |
ST1 |
2006-2009 |
01 |
| 004 |
11516149 |
ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RAD LWR SUPT SKID PLT)
|
2006-2009 |
04 |
|
| 005 |
11516542 |
БОЛТ, HFH, M8X1.25X30, 18 THD, 18 OD, 10.9, 7114M, MACH, P-PT (RAD LWR SUPT SKID PLT) |
|
2006-2009 |
04 |
| 006 |
10400169 |
BRACE, FRM (FRT FRM STRG) |
ST155 (06) (B4U) |
2006-2007 |
01 |
| 007 |
11518436 |
БОЛТ, HFH W/TTH CON WA, M16X2X45, 20.5 THD, 36 OD, 10.9, 7114M, MACH, 6175M (RR BPR IMP BAR) |
|
2006-2009 |
06 |
| 008 |
14103461 |
RETAINER, RR BPR FASCIA (PART OF 9)
| ST1 (06) |
2006-2009 |
04 |
|
| 009 |
25863531 |
БАМПЕР, ЗАДНИЙ IMP (INCLS 8) (INCLS HITCH)
| ST1 (06) |
2006-2009 |
01 |
|
| 010 |
15752337 |
BRACE, FRM (REAR AT #2 BODY MT) |
ST155 (06) |
2006-2006 |
01 |
| 011 |
11519925 |
БОЛТ, HEX W/CON WA, M10X1.5X30, 13.1 THD, 28 OD, 10.9, 7114M, MACH, MAT P-PT (FRM BR)
|
2006-2009 |
02 |
|
| 012 |
|
БОЛТ, TRANS SUPT C/MBR (PART OF 1) |
|
2006-2009 |
|
| 013 |
|
БОЛТ, TRANS SUPT C/MBR (PART OF 1) |
|
2006-2009 |
|
| 014 |
15090722 |
CROSSMEMBER, TRANS SUPT |
ST155 (06) (LH6, LL8, LS2) |
2006-2006 |
01 |
| 015 |
15085421 |
CROSSMEMBER, S/GR |
ST1 |
2006-2009 |
01 |
| 016 |
11516328 |
БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (S/GR C/MBR)
|
2006-2009 |
06 |
|
| 017 |
11516109 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (S/GR C/MBR)
|
2006-2009 |
02 |
|
| 018 |
11516328 |
БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (S/GR C/MBR)
|
2006-2009 |
02 |
|
| 019 |
15019853 |
SUPPORT, S/GR |
ST1 |
2006-2009 |
01 |
