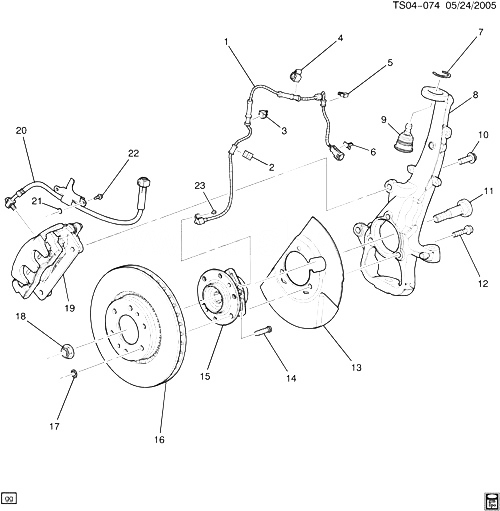

(TS04-074) - 2006-2009 S155(06) КРЕПЛЕНИЕ СУППОРТА ТОРМОЗА/ПЕРЕДНЕГО И КУЛАК (SS B4U) CHEVROLET TRAILBLAZER SS (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15158254 ДАТЧИК, FRT WHL SPD (PART OF 15) (ACDelco #15158254) S1 2006-2009 02
002 15158259 CLIP, WHL SPD SEN WIRE (PART OF 15) (12.0MM HOLE) ST1 2006-2009 02
003 15158260 CLIP, WHL SPD SEN WIRE (PART OF 15) (11.4MM HOLE) (2 PUSH PIN) ST1 2006-2009 02
004 15158261 CLIP, WHL SPD SEN WIRE (PART OF 15) (11MM HOLE) ST1 2006-2009 02
005 15715954 CLIP, WHL SPD SEN WIRE (PART OF 15) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) ST1 2006-2009 02
006 12186353 RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 15) (BLACK) (7.00/6.25 DIA, SLIDING) S1 2006-2009 02
007 15769998 RETAINER, FRT UPR CONT ARM BALL STUD (PART OF 8) S1 2006-2009 02
008 18060689 KNUCKLE, STRG (INCLS 7, 9) (W/BALL STUD RETAINER) S1 2006-2007 01
008 18060690 KNUCKLE, STRG (INCLS 7, 9) (W/BALL STUD RETAINER) S1 2006-2007 01
009 19133638 STUD, FRT UPR CONT ARM BALL (PART OF 8) S1 2006-2009 02
010 11517100 БОЛТ, FRT BRK CLPR (M14X2X40, 33THD) (8.900) S1 2006-2009 04
011 15267597 SHAFT, FRT WHL DRV S155 (B4U) 2006-2008 02
012 11517155 БОЛТ, FRT WHL BRG (8.900) S1 2006-2009 03
013 15753011 SHIELD, FRT BRK S155 (06) (B4U) 2006-2009 01
013 15753012 SHIELD, FRT BRK S155 (06) (B4U) 2006-2009 01
014 09595178 STUD, FRT WHL (PART OF 15) (BOLT-ROUND HEAD, M12X1.5X40, W/SERRATIONS, GM6177M STL, GMW14) S1 2006-2009 12
015 15130858 HUB, FRT WHL (W/WHL SPD SEN) (INCLS 1-6, 14, 23) (6.311) (ACDelco #FW121) S1 2006-2009 02
016 15294772 ROTOR, FRT BRK (325MM) (ACDelco #177-0998) S155 (06) (B4U) 2006-2007 02
017 11502737 ГАЙКА, PUSH ON, M12X1.75, PC (FRT BRK ROT (PUSH ON)) 2006-2009 04
018 10289657 ГАЙКА, FRT WHL DRV SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) S155 (B4U) 2006-2008 02
019 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
020 15877294 HOSE, FRT BRK S1 2006-2009 01
020 15877295 HOSE, FRT BRK S1 2006-2009 01
021 15162944 RETAINER, FRT BRK HOSE BRKT (PUSH ON) S1 2006-2009 04
022 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE BRKT) 2006-2009 02
023 15960191 БОЛТ, WHL SPD SEN (PART OF 15) (M6X1X12) S1 2006-2009 02
