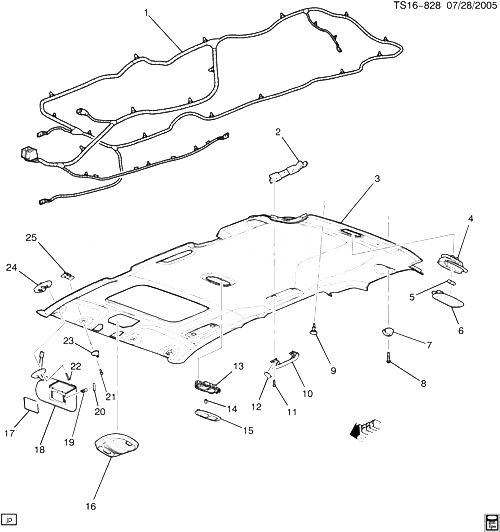

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, DM LP WRG (PART OF 3) |
|
2005-2009 |
|
| 002 |
15235669 |
BRACKET, ASST HDL |
ST155 (06) |
2005-2009 |
01 |
| 003 |
19148801 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (SUBSTRATE W/ AIRBAG) (W/2 SEPARATE ONSTAR CONNECTORS #88987796 88987797) |
ST155 (CF5, DK7, 27I, 28I, 47I, 48I) (EXC U42) |
2005-2005 |
01 |
| 003 |
89025976 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (LESS AIRBAG) (W/2 SEPARATE ONSTAR CONNECTORS #88987796 88987797) |
ST155 (CF5, DK7, 27I, 28I, 47I, 48I) (EXC U42) |
2005-2005 |
01 |
| 004 |
88935735 |
HOUSING, CARGO LP (RR DOME LAMP) |
ST1 |
2005-2009 |
01 |
| 005 |
09431809 |
BULB, 6CP TRADE #212-2 (CB XCVR HARN) (ACDelco #L212-2) |
|
2005-2009 |
01 |
| 006 |
88935736 |
LENS, CARGO LP (RR DOME LAMP) |
ST1 |
2005-2009 |
01 |
| 007 |
89025851 |
HOOK, COAT (GRAY) |
ST155 (27I, 28I, 47I, 48I) |
2005-2007 |
02 |
| 008 |
11519312 |
БОЛТ, COAT HOOK (HFH W/SHLDR, M6X1X40, 13.6 OD, TAP, TR-PT) (8.977) |
ST1 (06) |
2005-2009 |
02 |
| 009 |
89023762 |
RETAINER, HDLNG TR MDL (PUSH IN) (GRAY) (14.640) |
ST155 |
2005-2009 |
02 |
| 010 |
15269142 |
HANDLE, ASST (INCLS 11) (GRAY) |
ST1 (27I, 28I, 47I, 48I) |
2005-2007 |
03 |
| 011 |
|
БОЛТ, ASST HDL (PART OF 10) |
|
2005-2009 |
|
| 012 |
10395950 |
COVER, ASST HDL BOLT (GRAY) |
ST1 (27I, 28I, 47I, 48I) |
2005-2007 |
AR |
| 013 |
19115097 |
HOUSING, DM RDG LP (INCLS 14) |
ST1 |
2005-2009 |
01 |
| 014 |
01999382 |
BULB, (PART OF 13) (ACDelco #W5WLL) (LONGER LIFE)
|
2005-2009 |
02 |
|
| 015 |
19115098 |
BEZEL, DM RDG LP (INCLS LENSES) |
ST1 |
2005-2009 |
01 |
| 016 |
|
CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) (OAK) |
|
2005-2009 |
|
| 017 |
15006352 |
LABEL, INFL RST SYS WRNG (ENGLISH/FRENCH) |
ST1 (06) (EXC VBW) |
2005-2009 |
02 |
| 017 |
15114992 |
LABEL, INFL RST SYS WRNG (ENGLISH/ARABIC) |
ST1 (AL0, VBX) (EXPORT) |
2005-2007 |
02 |
| 017 |
15116388 |
LABEL, INFL RST SYS WRNG (ENGLISH/SPANISH)
| ST1 (EXC VBW) |
2005-2009 |
02 |
|
| 017 |
15134751 |
LABEL, INFL RST SYS MDL WRNG (JAPANESE) |
T1 (VBW) (EXPORT) |
2005-2009 |
01 |
| 018 |
15207764 |
SUNSHADE, (INCLS 19, 20) (GRAY) |
T155 (06) (VBW, 27I, 28I, 47I, 48I) (EXPORT) |
2005-2006 |
01 |
| 018 |
15207766 |
SUNSHADE, (INCLS 19, 20) (GRAY) |
T155 (06) (VBW, 27I, 28I, 47I, 48I) (EXPORT) |
2005-2006 |
01 |
| 018 |
15207768 |
SUNSHADE, (INCLS 19, 20) (GRAY) |
ST155 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) |
2005-2006 |
01 |
| 018 |
15207770 |
SUNSHADE, (INCLS 19, 20) (GRAY) |
ST155 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) |
2005-2006 |
01 |
| 018 |
15207777 |
SUNSHADE, (INCLS 19, 20) (GRAY) |
ST155 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) |
2005-2006 |
01 |
| 018 |
15207778 |
SUNSHADE, (INCLS 19, 20) (GRAY) |
ST155 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) |
2005-2006 |
01 |
| 019 |
09442395 |
BULB, TRADE # 7065 (PART OF 18) (ACDelco #L7065)
|
2005-2009 |
04 |
|
| 020 |
|
LENS, S/S ILLUM MIR LP (PART OF 18) |
|
2005-2009 |
|
| 021 |
89024603 |
БОЛТ, S/S SUPT (8 X 8 X 20 MM) |
ST155 |
2005-2009 |
02 |
| 022 |
11517072 |
SCREW, PAN HD C/R TAP M4.2X1.41X30 AB POR (S/S RET) (8.913) |
|
2005-2009 |
06 |
| 023 |
89024598 |
RETAINER, S/S (GRAY) (PO PNL PKG SUNSHADE PKG) |
ST155 (06) (27I, 28I, 47I, 48I) |
2005-2007 |
01 |
| 023 |
89024599 |
RETAINER, S/S (GRAY) |
ST155 (06) (27I, 28I, 47I, 48I) |
2005-2007 |
01 |
| 024 |
89024851 |
CLIP, S/S SUPT (RH MODULARITY CLIP) |
ST155 |
2005-2008 |
01 |
| 024 |
89024852 |
CLIP, S/S SUPT (LH MODULARITY CLIP) |
ST155 |
2005-2008 |
01 |
| 025 |
03637204 |
RETAINER, R/RL FRT ASST STRP BOLT (Z-AXIS PINCH TOP RET) (10.219) |
ST155 |
2005-2009 |
02 |
