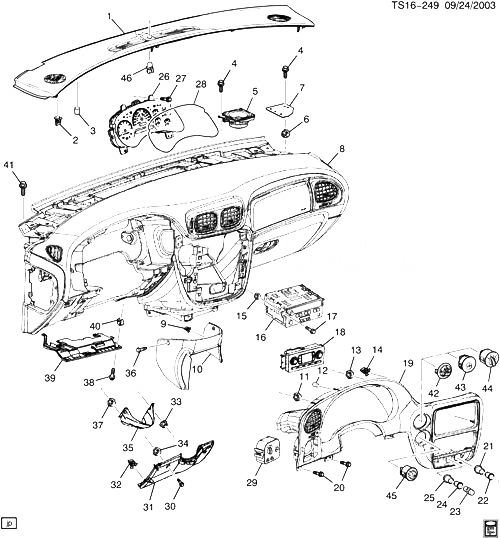

(TS16-249) - 2002-2005 ST(06) ПАНЕЛЬ ПРИБОРОВ И СОПРЯЖЕННЫЕ ДЕТАЛИ ЧАСТЬ 2 (CHEVROLET X88) CHEVROLET TRAILBLAZER LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15891497 ПАНЕЛЬ, ПРИБОРОВ UPR TR (INCLS 2, 3) (GRAY) ST1 (28I) 2005-2005 01
002 15058366 CLIP, I/P UPR T/PNL (PART OF 1) ST1 2002-2005 07
003 15029793 INSULATOR, I/P UPR T/PNL (PART OF 1) (GRAY) (STANDOFF) (9.743) ST1 2002-2005 02
004 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665) 2002-2005 06
005 15013121 SPEAKER, RDO FRT (ACDelco #15013121) ST1 (UQA) 2005-2005 01
005 15042464 SPEAKER, RDO FRT (ACDelco #15042464) ST1 (UQA) 2005-2005 01
006 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701) 2002-2005 AR
007 15766420 COVER, RDO FRT SPKR OPG (16.081) ST1 (EXC UQA) 2005-2005 02
007 15766420 COVER, RDO FRT SPKR OPG ST1 (EXC UQA) 2005-2005 02
008 15141391 PANEL, INST (INCLS 6, 11, 13, 15, 37, 40) (EBONY) (W/O PSIR) ST1 (X88, 27I, 48I) 2005-2005 01
008 25800897 PANEL, INST (INCLS 6, 11, 13, 15, 37, 40) (GRAY) (WITHOUT PSIR) (USE W/ I/P COMPT DR-15111573 INSTEAD OF 15141408) ST1 (06) (X88, 28I) 2005-2005 01
009 15043750 RETAINER, I/P LWR EXTN T/PNL (PART OF 10) (16.081) ST1 (X88) 2002-2005 02
010 15242786 ПАНЕЛЬ, ПРИБОРОВ LWR EXTN TR (INCLS 9) (EBONY) ST1 (X88, 27I, 48I) 2005-2005 01
010 25905021 ПАНЕЛЬ, ПРИБОРОВ LWR EXTN TR (INCLS 9) (GRAY) ST1 (X88, 28I) 2005-2005 01
011 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701) 2002-2005 04
012 15029793 INSULATOR, I/P CSTR TR PLT (PART OF 19) (GRAY) (STANDOFF) ST1 2002-2005 AR
013 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701) 2002-2005 AR
014 15058366 CLIP, I/P ACSRY TR PLT (PART OF 19) (16.090) ST1 2002-2005 AR
015 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701) 2002-2005 03
016 10356111 RADIO, AM/FM STEREO CLK CD PLYR (ACDelco #10356111) (LABELED 15083394 FOR 2ND DES SEE 10359565.) ST1 (UC6, UQA) (EXC UK1, UL2) (1ST DES) 2005-2005 01
016 10356114 RADIO, AM/FM STEREO CLK CD PLYR (ACDelco #10356114) ST1 (UC6, UL2, UQA) (EXPORT) 2004-2005 01
016 10357886 RADIO, AM/FM STEREO CLK CD PLYR (CODE WAET) (ACDelco #10357886) (LABELED 15196055 FOR 2ND DES SEE 15927261.) ST1 (06-36) (UC6) (EXC UK1, UL2, UQA) (1ST DES) 2005-2005 01
016 10357894 RADIO, AM/FM STEREO CLK CD PLYR (CODE WAEY) (ACDelco #10357894) (REQUIRES DEALER REPROGRAMMING) (LABELED 10357894) (LABELED 15138488 FOR 2ND DES SEE 15850275.) ST1 (06-36) (UB0) (1ST DES) 2005-2005 01
016 10359565 RADIO, AM/FM STEREO CLK CD PLYR (ACDelco #10359565) (LABELED 10359565 FOR 1ST DES SEE 10356111.) ST1 (UC6, UQA) (EXC UK1, UL2) (2ND DES) 2005-2005 01
016 15234917 RADIO, AM/FM STEREO CLK CD PLYR (ACDelco #15234917) (LABELED 15234917) T1 (UC6, UK1, UQA, W49, X88, Z88, Z89) 2004-2005 01
016 15850275 RADIO, AM/FM STEREO CLK CD PLYR (ACDelco #15850275) (LABELED 15850275 FOR 1ST DES SEE 10357894) (REQUIRES DEALER REPROGRAMMING.) ST1 (06-36) (UB0) (2ND DES) 2005-2005 01
016 15927261 RADIO, AM/FM STEREO CLK CD PLYR (LABELED 15927261) (ACDelco #15927261) (1ST DES SEE 10357886) ST1 (06-36) (UC6) (EXC UK1, UL2, UQA) (2ND DES) 2005-2005 01
016 15927263 RADIO, AM/FM STEREO CLK CD PLYR (LABELED 15927263) (ACDelco #15927263) T1 (UC6, UK1, UQA, W49, X88, Z88, Z89) (EXPORT) 2004-2005 01
017 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) 2002-2005 03
018 10395426 CONTROL, HTR A/C (LABELED 10395426, 15220318, 15203181, 15132072, OR 15195333) (ACDelco #15-73227) ST1 (06) (CJ3, C49) 2003-2005 01
018 15203182 CONTROL, HTR A/C (ACDelco #15-73037) (LABELED 15203182, FOR 2ND DES SEE 15220316) T1 (CJ2, EC0) (1ST DES) (EXPORT) 2005-2005 01
018 15814151 CONTROL, HTR A/C (ACDelco #15-73467) (LABELED 15220316, FOR 1ST DES SEE 15203182) T1 (CJ2, EC0) (2ND DES) (EXPORT) 2005-2005 01
018 15814152 CONTROL, HTR A/C (ACDelco #15-73468) ST1 (CJ2, W49, X88, Z88, Z89) (EXC EC0) 2005-2005 01
018 25945046 CONTROL, HTR A/C (ACDelco #15-73933) (LABELED 25945046) ST1 (06) (CJ3, C49) 2005-2005 01
018 25945047 CONTROL, HTR A/C (ACDelco #15-73934) ST1 (06) (CJ3) (EXC C49) 2003-2005 01
019 10355823 PLATE, I/P ACSRY TR (INCLS 12, 14, 21-25) (GRAY) ST1 (X88, 28I) 2005-2005 01
019 10355824 PLATE, I/P ACSRY TR (INCLS 12, 14, 21-25) (EBONY) ST1 (X88, 27I, 48I) 2005-2005 01
020 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P ACSRY TR PLT) 2002-2005 06
021 25774623 RECEPTACLE, ACSRY PWR (PART OF 19) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) ST1 2002-2005 01
022 15187371 RETAINER, C/LTR HSG (PART OF 19) (EBONY) (INCLS COVER) ST1 2005-2005 02
023 11516140 LIGHTER, CIG (PART OF 19) (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) ST1 2005-2005 01
024 25749635 RETAINER, C/LTR RCPT (PART OF 19) (EBONY) (W/O CAP) ST1 2002-2005 AR
025 25776667 RECEPTACLE, C/LTR (PART OF 19) (2 TERMINALS) ST1 2002-2005 01
026 CLUSTER, INST (INCLS 28) (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) 2002-2005
027 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (INST CSTR) (9.665) 2002-2005 04
028 LENS, INST CSTR (PART OF 26) 2005-2005
029 10372949 SWITCH, HDLP (WITH I/P LAMP DIMR) (ACDelco #10372949) (USE FOR PARTS LABELED WITH OEM PART NUMBER 10372949) ST1 (T96, W49, X88, Z88, Z49) (EXC CE4, TR6, T79) 2005-2005 01
029 10372951 SWITCH, HDLP (ACDelco #D1537H) (USE FOR PARTS LABELED WITH OEM PART NUMBER 10372951) T1 (CE4, TR6, T79, T96, X88) 2005-2005 01
029 10372952 SWITCH, HDLP (ACDelco #10372952) (USE FOR PARTS LABELED WITH OEM PART NUMBER 10372952) ST1 (06-36) (T96, W49, X88, Z88, Z89) (EXC CE4, TR6, T78, T79, Z49) 2005-2005 01
029 10372953 SWITCH, HDLP (ACDelco #10372953) (USE FOR PARTS LABELED WITH OEM PART NUMBER 10372953) ST1 (X88) (EXC CE4, TR6, T78, T79, T96, Z49) 2005-2005 01
029 10372954 SWITCH, HDLP (W/FRT FOG AND HDLP WASHER) (ACDelco #D1540H) (USE FOR PARTS LABELED WITH OEM PART NUMBER 10372954 OR 15007814) ST1 (06) (CE4, T78, T96, X88) (EXC TR6, T79) (EXPORT) 2005-2005 01
029 15085699 SWITCH, HDLP (ACDelco #D155G) (USE FOR PARTS LABELED WITH OEM PART NUMBER 15085699) T1 (CE4, TR6, T79, T96) 2003-2005 01
029 25932631 SWITCH, HDLP (ACDelco #D1534H) ST1 (X88, Z49) (EXC CE4, TR6, T79, T96) (EXPORT) 2005-2005 01
030 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P DRVR KNEE BOLS) 2002-2005 04
031 15111566 BOLSTER, I/P DRVR KNEE (INCLS 32, 34) (GRAY) (ALSO ORDER QTY 2 OF 10389033, CAP) ST1 (X88, Z88, Z89, 28I) 2005-2005 01
032 15058366 CLIP, I/P DRVR KNEE BOLS (PART OF 31) ST1 2005-2005 03
033 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P DRVR KNEE BOLS DFL) 2002-2005 04
034 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 31) (10.701) 2002-2005 AR
035 15797182 BRACE, I/P DRVR KNEE BOLS ST1 (06) 2005-2005 01
036 11516632 SCREW, RND WA HD C/R, M4.2X1.41X30, NZ (I/P LWR EXTN T/PNL) (8.903) 2002-2005 02
037 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701) 2002-2005 AR
038 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P INSL) (9.665) 2002-2005 02
039 15121032 INSULATOR, I/P ST1 2004-2005 01
040 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701) 2002-2005 AR
041 11516599 БОЛТ, HEX W/CON WA, M10X1.5X35, 18.25 THD, 28 OD, 9.8, 7114M, MACH, P-PT (INST CARR SUPT) 2002-2005 06
044 25965895 SWITCH, TRFER CASE SEL T1 (NP8) 2004-2005 01
045 25790668 SWITCH, R/WDO WPR WA ST1 (06) (W49, X88, Z88, Z89) 2005-2005 01
046 12450120 ДАТЧИК, HDLP AUTO CONT AMB LGT (FITS A 8.3MM HOLE) ST1 (06-36) (CJ3) 2005-2005 01
046 15837063 ДАТЧИК, HDLP AUTO CONT AMB LGT (FITS A 16.5MM HOLE) ST1 (06) (CJ3) 2005-2005 01
046 25713063 ДАТЧИК, HDLP AUTO CONT AMB LGT (DUAL SOLAR TWILIGHT) ST1 (CJ2) 2005-2005 01
