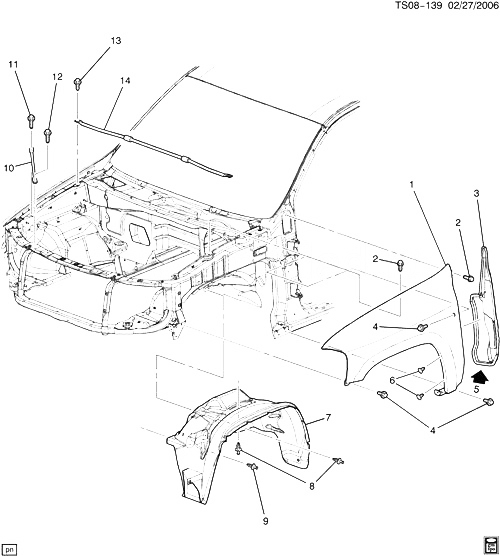

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12477993 |
FENDER, FRT
| ST1 (06) (X88) |
2004-2005 |
01 |
|
| 001 |
12477994 |
FENDER, FRT
| ST1 (06) (X88) |
2004-2005 |
01 |
|
| 002 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (F/FDR) (ACDelco #11517518)
|
2004-2005 |
08 |
|
| 003 |
15857191 |
SEAL, F/FDR (INCLS 5) |
ST1 (06) |
2005-2005 |
01 |
| 003 |
15857192 |
SEAL, F/FDR (INCLS 5)
| ST1 (06) |
2005-2005 |
01 |
|
| 004 |
11519381 |
БОЛТ, WASHER M6X1X15, 5.75 THD, 17 OD, 8.8, GMW3359, M-POINT, 1.65 CON SPRWA (F/FDR) |
|
2004-2005 |
06 |
| 005 |
12345097 |
WEATHERSTRIP, ADHESIVE, 5 OZ. TUBE (PART OF 3) |
|
2004-2005 |
01 |
| 006 |
11588469 |
RETAINER, PUSH IN, 019.1X20.6, FTS 8M HOLE, PNL THK 0.6-3.0, NYLON 6/6, BLACK (F/FDR INR PNL)
|
2004-2005 |
04 |
|
| 007 |
15165308 |
LINER, FRT W/H
| ST1 (06) (W49, X88, Z88) |
2005-2005 |
01 |
|
| 007 |
15165886 |
LINER, FRT W/H
| ST1 (06) (W49, X88, Z88) |
2005-2005 |
01 |
|
| 008 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (FRT W/H LNR (PUSH IN))
|
2004-2005 |
16 |
|
| 009 |
11518017 |
RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (FRT W/H LNR (PUSH IN))
|
2004-2005 |
02 |
|
| 011 |
11519387 |
БОЛТ, HWASH, M8X1.25X20, 14 THD, 24 OD, GMW25 (8.8)STEEL, GMW3359, M-POINT. (F/END UPR STRUCTURE BR)
|
2004-2005 |
01 |
|
| 012 |
11519526 |
БОЛТ, HX HD W/CON WA, M8X1.25X40, 32.5 THD, 24 OD, 8.8, GMW3359, 7MM M-POINT (RAD SUPT) |
|
2004-2005 |
01 |
| 013 |
11519387 |
БОЛТ, HWASH, M8X1.25X20, 14 THD, 24 OD, GMW25 (8.8)STEEL, GMW3359, M-POINT. (F/FDR RR UPR BR)
|
2004-2005 |
02 |
|
