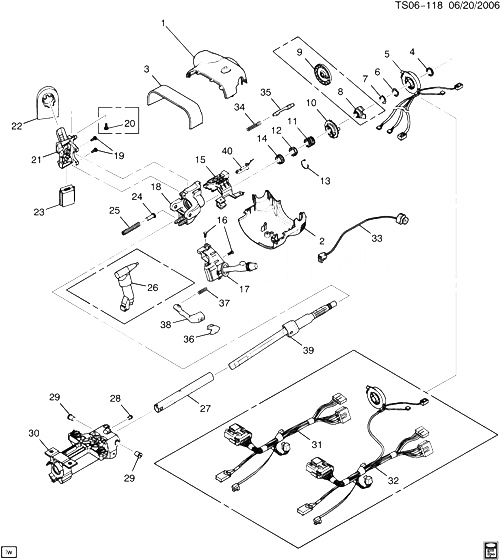

(TS06-118) - 2004-2005 ST(06-36) РУЛЕВАЯ КОЛОНКА (JF4) CHEVROLET TRAILBLAZER LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, STRG COL UPR TR (*KIT1, KIT2, KIT4) 2004-2005
002 COVER, STRG COL LWR TR (*KIT1, KIT2, KIT4) 2004-2005
003 26077712 SHROUD, STRG COL (EBONY) (*KIT1, KIT2) ST1 (M30, 27I, 28I, 35I, 48I, 69I, 92I, 95I) 2004-2005 01
003 88963428 SHROUD, STRG COL (CASHMERE) (*KIT1, KIT2) ST1 (47I) (EXC BAE) 2005-2005 01
004 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL COIL RET) (*KIT1, KIT2) 2004-2005 01
005 88965343 COIL, STRG WHL INFL RST MDL (*KIT1, KIT2) ST1 (M30, DAY, OKL, 27I, 28I, 48I) (EXC BAE, NP7, N30, STW) 2005-2005 01
005 88965343 COIL, STRG WHL INFL RST MDL (*KIT1, KIT2) T1 (M30, JF4, K34, NP7) (EXC STW) 2005-2005 01
005 88965345 COIL, STRG WHL INFL RST MDL (*KIT1, KIT2) ST1 (M30, DAY, JF4, K34, N30, 47I) (EXC BAE, NP7) 2005-2005 01
005 88965345 COIL, STRG WHL INFL RST MDL (*KIT1, KIT2) ST1 (M30, JF4, K34, N30, STW, OKL, 27I, 28I, 48I) (EXC BAE, NP7) 2005-2005 01
005 88965347 COIL, STRG WHL INFL RST MDL (*KIT1, KIT2) T1 (M30, BAE, JF4, K34, NP7, STW, W49, X88, Z88, Z89) (EXPORT) 2005-2005 01
006 26011609 WASHER, STRG WHL INFL RST MDL COIL (*KIT1, KIT2) (14.865) ST1 2005-2005 01
007 05694191 RING, STRG SHF LK PLT RET (*KIT1, KIT2, KIT3) (6.524) ST1 (M30) 2005-2005 01
007 05694191 RING, STRG SHF LK PLT RET (*KIT1, KIT2, KIT3) (6.524) ST1 (M70) 2005-2005 01
008 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (*KIT1) (6.521) ST1 2005-2005 01
009 26094767 PLATE, STRG SHF LK (W/O SHIELD) (*KIT1, KIT2, KIT3) ST1 (M30) 2004-2005 01
010 26080344 CAM, T/SIG CANC (*KIT1, KIT2, KIT3) ST1 2005-2005 01
012 15231641 SEAT, STRG SHF UPR BRG RACE (*KIT1, KIT2, KIT3) ST1 (M30) 2004-2005 01
013 12355066 STRAP, PLASTIC ADJ TIE (215MM LG) (WRG HARN) (*KIT1, KIT2) (8.965) (ACDelco #16TS825) 2004-2005 01
014 26001827 BEARING KIT, STRG SHF UPR (STRG COL INR W/RACE) (*KIT1, KIT2) ST1 (M30) 2005-2005 01
015 26075818 BRACKET, IGN LK CYL CASE (*KIT1, KIT2) ST1 (M30) 2004-2005 01
016 26036497 БОЛТ, STRG COL LWR TR CVR (M5X.8X15) (*KIT1, KIT2) (6.760) ST1 (EXC BAE) 2004-2005 02
016 26090176 БОЛТ, STRG COL LWR TR CVR (M5X.8X15.40) (*KIT1, KIT2) T1 (M30, BAE) 2004-2005 02
017 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/O CRUISE CONTROL) (W/HAZARD СИГНАЛ) (*KIT1, KIT2) (2.895) (ACDelco #D6298A) ST1 (EXC K34) 2004-2005 01
017 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/O CRUISE CONTROL) (W/HAZARD СИГНАЛ) (*KIT1, KIT2) (ACDelco #D6298A) ST1 (EXC K34) 2004-2005 01
017 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/O CRUISE CONTROL) (W/HAZARD СИГНАЛ) (*KIT1, KIT2) (2.895) (ACDelco #D6298A) ST1 (EXC K34) 2004-2005 01
017 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/CRUISE CONTROL) (INCLUDE HAZARD FLASH SWITCH) (*KIT1, KIT2) (2.895) (ACDelco #D6299A) ST1 (K34) 2005-2005 01
017 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/CRUISE CONTROL) (INCLUDE HAZARD FLASH SWITCH) (*KIT1, KIT2) (ACDelco #D6299A) ST1 (K34) 2005-2005 01
017 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/CRUISE CONTROL) (INCLUDE HAZARD FLASH SWITCH) (*KIT1, KIT2) (2.895) (ACDelco #D6299A) ST1 (K34) 2005-2005 01
018 26087973 HOUSING, STRG COL (INCLS 35, 37, 38) (W/O STRG SHF, INCLS STRG COL INR RACE) (*KIT1, KIT2, KIT3, KIT5) ST1 (M30) (EXC BAE) 2004-2005 01
018 26094224 HOUSING, STRG COL (INCLS 35, 37, 38) (W/O STRG SHF) (*KIT1, KIT2, KIT3, KIT5) T1 (M30, BAE, JF4, JL4, K34, NP7) (EXC STW) 2004-2005 01
019 26036497 БОЛТ, STRG COL LWR TR CVR (M5X.8X15) (*KIT1, KIT2) (6.760) ST1 (EXC BAE) 2004-2005 02
019 26090176 БОЛТ, STRG COL LWR TR CVR (M5X.8X15.40) (*KIT1, KIT2) T1 (M30, BAE) 2004-2005 02
020 26036496 БОЛТ, STRG COL UPR CVR (M4.55 TAP X15) (*KIT1, KIT2) (2.188) ST1 (M30) 2004-2005 01
021 26088811 CASE, IGN LK CYL (EXCEPT LK ACTUATOR PASS SENSOR) (*KIT1, KIT2, KIT3) (PASS KEY) T1 (M30, BAE, K34, NP7) (EXPORT) 2004-2005 01
021 88965342 CASE, IGN LK CYL (W/IGN LK ACTUATOR PASS LK SENSOR) (*KIT1, KIT2, KIT3) ST1 (M30) (EXC BAE, NP7) 2004-2005 01
022 12213850 MODULE, THEFT DTRNT (*KIT2) (ACDelco #12213850) T1 (M30, BAE, K34, NP7) (EXPORT) 2005-2005 01
023 12450251 SWITCH, IGN START (W/LK CYL CONT SOL) (W/GEAR TEETH) (*KIT1, KIT2) (ACDelco #12450251) ST1 2005-2005 01
024 26034561 GUIDE, STRG COL SPR (*KIT1, KIT2) ST1 2005-2005 01
025 26065450 ПРУЖИНА, STRG COL TILT (*KIT1, KIT2) ST1 2004-2005 01
026 26056147 LOCK, STRG WHL THEFT DTRNT (INCLS KEY REL SOL) (*KIT1, KIT2) (DUE TO DESIGN CHANGE, WIRE HARNESS MAY BE TOO SHORT. REROUTE THE HARNESS TO MAKE IT WORK) ST1 2005-2005 01
027 26100328 SHAFT, STRG (INCLS 14) (*KIT1, KIT2, KIT3) ST1 (M30) (EXC BAE, NP7) 2004-2005 01
027 26100330 SHAFT, STRG (INCLS 14) (*KIT1, KIT2, KIT3) ST1 (BAE, K34, M30, NP7) 2005-2005 01
028 93364414 BUMPER, STRG COL HSG (PART OF 30) (PINK) (UPR) (*KIT1, KIT2) ST1 (M30) 2004-2005 01
029 26036521 PIN, STRG COL PIV (*KIT1, KIT2) ST1 (M30) 2005-2005 02
029 26036521 PIN, STRG COL PIV (*KIT1, KIT2) ST1 (M70) 2005-2005 02
030 26099306 SUPPORT, STRG COL HSG (INCLS 28) (INCLUDES BEARING) (*KIT1, KIT2) ST1 (M30) 2004-2005 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) ST1 (M30, DAY, JF4, 27I, 28I, 48I) (EXC BAE, K34, NP7, N30, STW) 2005-2005 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) ST1 (M30, DAY, JF4, K34, 27I, 28I, 48I) (EXC BAE, NP7, N30, STW) 2005-2005 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) ST1 (M30, JF4, K34, OKL, 27I, 28I, 48I) (EXC BAE, NP7, STW) 2005-2005 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) ST1 (M30, JF4, OKL, 27I, 28I, 48I) (EXC BAE, K34, NP7, STW) 2005-2005 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) (6.522) ST1 (M30, DAY, JF4, 27I, 28I, 48I) (EXC BAE, K34, NP7, N30, STW) 2005-2005 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) (6.522) ST1 (M30, DAY, JF4, K34, 27I, 28I, 48I) (EXC BAE, NP7, N30, STW) 2005-2005 01
031 26105770 HARNESS, STRG COL WRG (W/COIL) (*KIT1) ST1 (06) (M30, JF4, K34, OKL, STW, 27I, 28I, 48I) (EXC BAE, NP7) 2005-2005 01
031 26105770 HARNESS, STRG COL WRG (W/COIL) (*KIT1) (6.522) ST1 (06) (M30, JF4, K34, OKL, STW, 27I, 28I, 48I) (EXC BAE, NP7) 2005-2005 01
032 26098190 HARNESS, STRG COL WRG (*KIT2) T1 (M30, BAE, JF4, K34, NP7) (EXC STW) 2004-2005 01
032 26105771 HARNESS, STRG COL WRG (*KIT2) T1 (M30, BAE, JF4, K34, NP7, STW, W49, X88, Z88, Z89) 2005-2005 01
032 26105771 HARNESS, STRG COL WRG (*KIT2) (6.522) T1 (M30, BAE, JF4, K34, NP7, STW, W49, X88, Z88, Z89) 2005-2005 01
033 26109365 SWITCH, BRK ACCEL PED ADJR (*KIT1, KIT2) (4.626) ST1 (JF4) 2004-2005 01
033 26109365 SWITCH, BRK ACCEL PED ADJR (*KIT1, KIT2) ST1 (JF4) 2005-2005 01
034 26034514 ПРУЖИНА, LK BOLT (43MM) (*KIT2, KIT3) ST1 2004-2005 01
035 26061342 PIN, STRG WHL LK (PART OF 18) (*KIT1, KIT2, KIT3) ST1 2005-2005 01
036 26069514 LEVER, STRG COL TILT WHL REL (EXTERNAL) (*KIT1, KIT2) ST1 2004-2005 01
037 05698410 ПРУЖИНА, STRG COL TILT LK REL LVR (PART OF 18, 38) (*KIT1, KIT2, KIT3) ST1 2005-2005 01
038 26090202 LEVER, STRG COL TILT LK REL (INCLS 37) (PART OF 18) (INTERNAL) (*KIT1, KIT2, KIT3) ST1 2004-2005 01
039 SHAFT, UPR STRG (*KIT1, KIT2, KIT5) 2004-2005
040 01999315 SWITCH, IGN KEY ALARM (W/PLUNGER) (*KIT1, KIT2) (2.188) (ACDelco #D963A) ST1 2004-2005 01
K01 88965341 COLUMN, STRG (INCLS 1-21, 23-31, 33, 35-40) ST1 (M30) (EXC BAE, NP7) 2004-2005 01
K01 88965341 COLUMN, STRG (INCLS 1-21, 23-31, 33, 35-40) ST1 (M30, JF4, 27I, 28I, 48I) (EXC BAE, NP7) 2005-2005 01
K02 26110669 COLUMN, STRG (INCLS 1-7, 9-30, 32-40) T1 (M30, BAE, NP7) 2004-2005 01
K03 26088839 HOUSING, STRG COL (INCLS 7, 9-12, 18, 21, 27, 34, 35, 37, 38) (W/COMPLETE STRG SHF) ST1 (M30, BAE, NP7) 2004-2005 01
K04 26098277 COVER KIT, STRG COL TR (INCLS 1, 2) (EBONY) ST1 (JF4, M30, 27I, 28I, 48I) (EXC BAE, NP7) 2005-2005 01
K04 26098323 COVER KIT, STRG COL TR (INCLS 1, 2) (EBONY) ST1 (M30, BAE, K34, JF4, NP7) 2004-2005 01
K04 88963426 COVER KIT, STRG COL TR (INCLS 1, 2) (CASHMERE) ST1 (M30, JF4, K34, N30, 47I) (EXC BAE, NP7) 2005-2005 01
K05 88965344 HOUSING, STRG COL (W/UPR STRG SHF) (INCLS 18, 39) ST1 (M30) 2005-2005 01
K05 88965344 HOUSING, STRG COL (W/UPR STRG SHF) (INCLS 18, 39) ST1 (M32) 2005-2005 01
