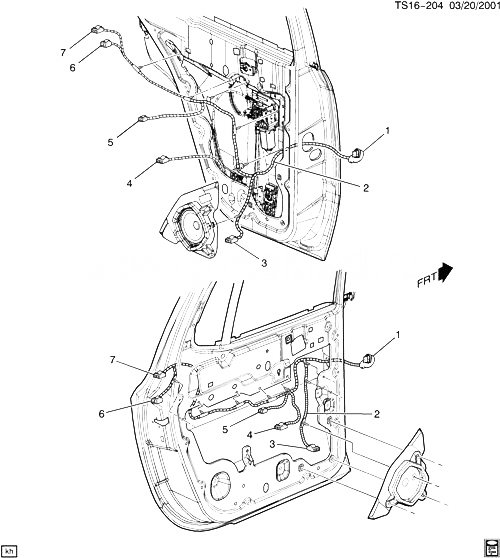

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15358897 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 2) (17-WAY MALE) |
ST155, 158 |
2004-2005 |
01 |
| 002 |
15240061 |
HARNESS, RR S/D DR WRG (INCLS 1, 3-7) |
ST1 (UQA) |
2005-2005 |
01 |
| 002 |
15240062 |
HARNESS, RR S/D DR WRG (INCLS 1, 3-7) |
ST1 (EXC UQA) |
2005-2005 |
01 |
| 002 |
15240063 |
HARNESS, RR S/D DR WRG (INCLS 1, 3-7) |
ST1 (EXC UQA) |
2005-2005 |
01 |
| 002 |
15240064 |
HARNESS, RR S/D DR WRG (INCLS 1, 3-7) |
ST1 (UQA) |
2005-2005 |
01 |
| 003 |
12101825 |
CONNECTOR, SPKR-RDO (INDEX TAB CTR CAVITY AB, W/LOCKING TAB) (PART OF 2) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) |
ST1 |
2002-2005 |
02 |
| 003 |
12117323 |
CONNECTOR, SPKR-RDO (PART OF 2) (BLUE) (2-WAY FEMALE) (W/O LEADS) (10.275) (ACDelco #PT456) |
ST1 |
2005-2005 |
02 |
| 003 |
12125690 |
CONNECTOR, SPKR-RDO (I/P) (PART OF 2) (GREEN) (2-WAY FEMALE) (W/LEADS) (14.691) (ACDelco #PT601) |
ST1 (UQA) |
2005-2009 |
02 |
| 003 |
88987981 |
CONNECTOR, SPKR-RDO (PART OF 2) (NATURAL) (2-WAY FEMALE) (W/LEADS) (4.589) (ACDelco #PT1769) |
ST1 |
2003-2005 |
02 |
| 004 |
88988609 |
CONNECTOR, MOT-WDO REG (PART OF 2) (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) |
ST1 |
2002-2008 |
02 |
| 005 |
15306048 |
CONNECTOR, SW-SI WDO (PART OF 2) (BROWN) (8-WAY FEMALE) (GT280) (W/LEADS) (10.777) (ACDelco #PT1208) |
ST1 |
2005-2009 |
02 |
| 007 |
15306406 |
CONNECTOR, SW-DR AJAR IND (PART OF 2) (GRAY) (2-WAY FEMALE) (W/LEADS) (16.263) (ACDelco #PT1461) |
ST155 |
2002-2005 |
01 |
| 007 |
15306417 |
CONNECTOR, SW-DR AJAR IND (PART OF 2) (BLUE) (2-WAY FEMALE) (16.263) (ACDelco #PT1466) |
ST155 |
2002-2005 |
01 |
