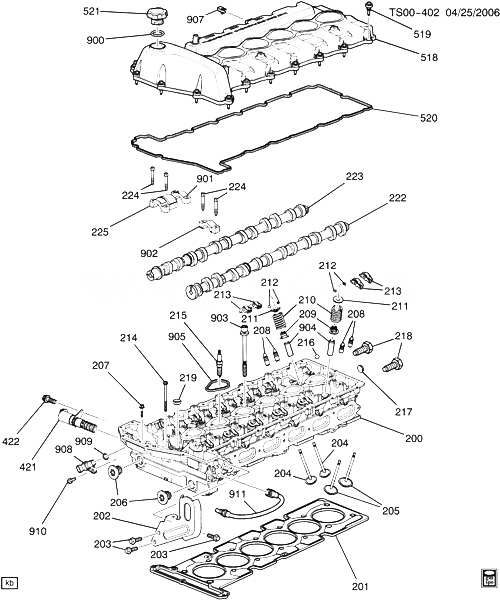

(TS00-402) - 2002-2005 ST ДВИГАТЕЛЬ В СБОРЕ-4.2L L6 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ И СВЯЗАННЫЕ ДЕТАЛИ (LL8/4.2S) CHEVROLET TRAILBLAZER LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
200 19207470 HEAD, CYL (MCHG) (INCLS 224, 225, 901, 902, 904) (INCLUDES VALVES) (REMAN) ST1 (LL8) 2005-2005 01
200 88984242 HEAD, CYL (MCHG) (EXC VALVES) (INCLS 224, 225, 901, 902, 904) ST1 (LL8) 2005-2005 01
201 ПРОКЛАДКА, CYL HD (*KIT2) 2002-2005
202 12572633 BRACKET, ENG LIFT FRT ST1 (LL8) 2005-2005 01
203 11517054 БОЛТ, METRIC HVY HEX FLANGE HEAD, M10X1.5X25 (ENG LIFT FRT BRKT) 2002-2005 03
204 12569015 КЛАПАН, ВЫПУСКНОЙ (.075 O.S.) ST1 (LL8) 2002-2005 12
204 24576975 КЛАПАН, ВЫПУСКНОЙ (STD) ST1 (LL8) 2002-2005 12
205 12569014 КЛАПАН, ВПУСКНОЙ (.075 OVSI) ST1 (LL8) 2002-2005 12
205 24576974 КЛАПАН, ВПУСКНОЙ (STD) ST1 (LL8) 2002-2005 12
206 01647544 PLUG, CYL HD ACC HOLE (M24X1.5X12) (ROUND HEAD, INT HEX, W/SEAL, NYLON) (0.034) ST1 (LL8) 2005-2005 02
207 11519038 БОЛТ, CYL HD (BOLT-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359) (8.900) ST1 (LL8) 2002-2005 02
208 24100005 ADJUSTER, HYD VLV LASH (ACDelco #24100005) ST1 (LL8) 2005-2005 24
209 12596994 SEAL, VLV STEM OIL (*KIT2) ST1 (LL8) 2002-2005 24
210 12596078 ПРУЖИНА, VLV ST1 (LL8) 2002-2005 24
211 90537243 RETAINER, VLV SPR ST1 (LL8) 2002-2005 24
212 90354648 KEY, VLV STEM ST1 (LL8) 2005-2005 48
213 24100294 ARM, VLV RKR ST1 (LL8) 2005-2005 24
214 11519306 БОЛТ, CYL HD (BOLT-HFH, M6X1X88.3, 17 THD, 14.2 OD, 10.9, 4435M, MACH, 6194M, HDR-PT) ST1 (LL8) 2002-2005 01
215 12598004 СВЕЧА ЗАЖИГАНИЯ, (ACDelco #12598004) (IRIDIUM) ST1 (LL8) 2002-2005 06
216 12569484 PLUG, SECD AIR INJN PIPE HOLE (12.7MM) ST1 (LL8) 2002-2005 01
217 11562125 PLUG, SECD AIR INJN PIPE HOLE ST1 (LL8) 2002-2005 01
218 11609916 PLUG, CYL HD OIL GAL (REAR) (M14X1.5X21.5) ST1 (LL8) 2002-2005 02
219 24577307 PLUG, CYL HD OIL GAL (FRONT) ST1 (LL8) 2002-2005 01
222 12563065 CAMSHAFT, INT (MCHG) ST1 (LL8) 2002-2005 01
223 24577279 CAMSHAFT, EXH (MCHG) ST1 (LL8) 2005-2005 01
224 12570816 БОЛТ, CM/SHF BRG CAP (PART OF 200) ST1 (LL8) 2005-2005 29
225 CAP, CM/SHF BRG FRT (PART OF 200) 2002-2005
421 12615873 VALVE, CM/SHF POSN ACTR SOL ST1 (LL8) 2003-2005 01
422 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (CM/SHF POSN ACTR) (ACDelco #11517518) 2002-2005 01
518 12591994 COVER, CM/SHF (INCLS 519, 520, 905, 907) ST1 (LL8) 2002-2005 01
519 12591285 INSULATOR, CM/SHF CVR BOLT (PART OF 518) (INCLS BOLT, GROMMET) ST1 (LL8) 2005-2005 21
520 SEAL, CM/SHF CVR (PART OF 518) (*KIT1, KIT2) 2002-2005
521 12573337 CAP, OIL FIL (SAE 5W30, NON-VENTED, SEAL) (INCLS 900) (ACDelco #FC208) ST1 (LL8) 2002-2005 01
900 24100002 SEAL, OIL FIL CAP (O RING) (PART OF 521) (27.94MM I.D.) (SIZE #320) (1.745) ST1 (LL8) 2005-2005 01
901 CAP, CM/SHF BRG (PART OF 200) 2002-2005
902 CAP, CM/SHF BRG FRT (PART OF 200) 2002-2005
903 12568079 БОЛТ, CYL HD (M11X2X145, 34 THD) (WITH CAPTURED WASHER) ST1 (LL8) 2002-2005 14
904 GUIDE, VLV (PART OF 200) 2002-2005
905 SEAL, CM/SHF CVR SPLG ACC TUBE (PART OF 518) (*KIT1, KIT2) 2002-2005
907 11504978 U-NUT M6X1 PNLS 13.5 DEEP ZOR (PART OF 518) 2002-2005 02
908 12584079 ДАТЧИК, CM/SHF POSN (W/ANGLE CONNECTOR) (INCLS 909) (ACDelco #213-1557) ST1 (LL8) 2002-2005 01
909 SEAL, CM/SHF POSN SEN (O RING) (PART OF 908) 2002-2005
910 11562426 БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (CM/SHF POSN SEN) 2002-2005 01
911 12564512 ДАТЧИК, ENG COOL TEMP (2-WAY FEMALE) (3.682) (ACDelco #213-963) ST1 (LL8) 2002-2005 01
911 12564512 ДАТЧИК, ENG COOL TEMP (2-WAY FEMALE) (ACDelco #213-963) ST1 (LL8) 2002-2005 01
911 19236568 ДАТЧИК, ENG COOL TEMP (ACDelco #213-4514) (ALL MAKES) T155 (06) (LL8) 2005-2005 01
K01 89017729 GASKET KIT, CM/SHF CVR (INCLS 520, 905) ST1 (LL8) 2005-2005 01
K02 88984228 GASKET KIT, CYL HD (INCLS 201, 209, 520, 905) ST1 (LL8) 2004-2005 01
