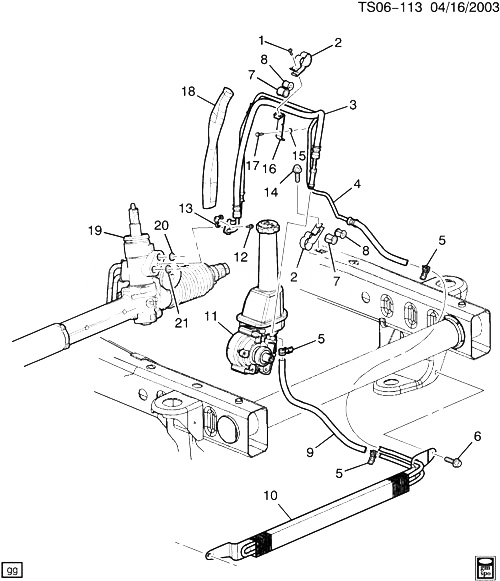

(TS06-113) - 2005-2009 ST1 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ/МАГИСТРАЛИ (LH6/5.3M, LS2/6.0H) CHEVROLET TRAILBLAZER LT (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 26084815 БОЛТ, P/S GR INL OTLT PIPE RET ST1 2003-2009 01
001 26084815 БОЛТ, P/S GR INL OTLT PIPE RET (6.670) ST1 2003-2009 01
002 26099618 BRACKET, P/S GR INL OTLT PIPE CLIP (RETAINED BY CLIP) ST1 2005-2009 01
003 26090949 HOSE, P/S GR OTLT ST1 (LH6) 2005-2005 01
004 26090950 HOSE, P/S GR INL (INCLS 13) ST1 (LH6) 2005-2005 01
005 11516255 CLAMP, SPRING BAND HOSE (M16X1) (P/S FLUID CLG HOSE) 2003-2009 03
006 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (P/S FLUID CLR) (ACDelco #11570082) 2003-2009 02
007 26054693 INSULATOR, P/S GR INL HOSE (UPPER) ST1 (LH6) 2005-2005 01
008 26054706 INSULATOR, P/S GR INL PIPE (LOWER) ST1 2005-2009 01
009 07828506 HOSE, 3/8 IDX10FT (P/S FLUID RSVR) 2003-2009 01
010 15009093 COOLER, P/S FLUID ST1 (06-36) (LH6, LL8) 2005-2005 01
011 PUMP, P/S (СМ. ГРУППУ 06.000 РУЛЕВОЙ НАСОС В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2003-2009
012 26084815 БОЛТ, P/S GR INL OTLT PIPE RET ST1 2003-2009 01
012 26084815 БОЛТ, P/S GR INL OTLT PIPE RET (6.670) ST1 2003-2009 01
013 RETAINER, P/S GR INL OTLT PIPE (PART OF 4) 2005-2009
014 26084815 БОЛТ, P/S GR INL OTLT PIPE RET ST1 2003-2009 01
014 26084815 БОЛТ, P/S GR INL OTLT PIPE RET (6.670) ST1 2003-2009 01
015 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (P/S GR OTLT HOSE BRKT) 2003-2009 01
016 26107869 BRACKET, P/S GR OTLT HOSE ST1 2005-2009 01
017 11519806 БОЛТ, HEX W/CON WA, M6X1X22, 14.88 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (P/S GR OTLT HOSE BRKT) 2003-2009 01
018 26091977 INSULATOR, P/S GR INL OTLT PIPE (SLEEVE, 400MM LONG X 50MM DIA) ST1 (LH6, LS2) 2005-2007 01
019 GEAR, STRG (СМ. ГРУППУ 06.000 РУЛЕВОЙ МЕХАНИЗМ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2003-2009
020 26080380 SEAL, P/S GR OTLT HOSE (9.04MM IDX4.10MM THK) (AT GEAR) ST155 2005-2009 02
021 26080380 SEAL, P/S GR INL HOSE (O RING) (9.04MM IDX4.10MM THK) (AT GEAR) ST155 2005-2008 02
