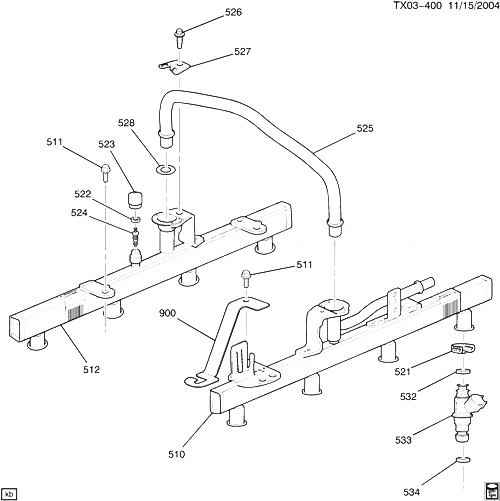

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 510 |
12580914 |
RAIL, M/PORT F/INJN FUEL (EXC VALVE, CAP) (ACDelco #217-1623) |
ST1 (LH6) |
2005-2005 |
01 |
| 511 |
12580910 |
БОЛТ, F/INJR DRVR MDL |
ST1 (LH6) |
2005-2006 |
04 |
| 512 |
12580913 |
RAIL, M/PORT F/INJN FUEL (INCLS VALVE, CAP, VALVE KIT) (INCLS 522-524) (ACDelco #217-1622) |
ST1 (LH6) |
2005-2005 |
01 |
| 521 |
|
RETAINER, F/INJR (PART OF 533) (*KIT1) |
|
2005-2006 |
|
| 522 |
|
SEAL, F/PMP CHK VLV (PART OF 512) |
|
2005-2006 |
|
| 523 |
|
CAP, FUEL PRESS SERV VLV (PART OF 512) |
|
2005-2006 |
|
| 524 |
|
VALVE, FUEL PRESS SERV (PART OF 512) |
|
2005-2006 |
|
| 525 |
|
TUBE, F/INJN FUEL RL C/OVR |
|
2005-2006 |
|
| 526 |
|
БОЛТ, F/INJN FUEL RL C/OVR TUBE RET (PART OF 527) |
|
2005-2006 |
|
| 527 |
89017590 |
RETAINER KIT, F/INJN FUEL RL C/OVR TUBE (INCLS 526) |
ST1 (LH6) |
2005-2006 |
01 |
| 528 |
17113552 |
SEAL KIT, F/INJN FUEL RL (ACDelco #17113552)
| ST1 (LH6) |
2005-2006 |
01 |
|
| 532 |
|
SEAL, F/INJN FUEL RL (O RING) (PART OF 533) (*KIT2) |
|
2005-2006 |
|
| 533 |
12580681 |
INJECTOR, SEQ M/PORT FUEL (INCLS INJECTOR, RETAINER, SEALS) (INCLS 521, 532, 534) (ACDelco #217-1621)
| ST1 (LH6) |
2005-2006 |
08 |
|
| 534 |
|
SEAL, F/INJR (O RING) (PART OF 533) (*KIT2) |
|
2005-2006 |
|
| 900 |
12587392 |
BRACKET, F/INJN FUEL RL |
ST1 (LH6) |
2005-2005 |
01 |
| K01 |
12570620 |
RETAINER KIT, F/INJR (INCLS 521) (W/ 8 RETAINERS) (ACDelco #12570620) |
ST1 (LH6) |
2005-2006 |
01 |
| K02 |
12587147 |
SEAL KIT, F/INJR (O RING) (INCLS 532, 534) (W/ 8 UPPER 8 LOWER SEALS) (ACDelco #217-1588)
| ST1 (LH6) |
2005-2006 |
01 |
|
