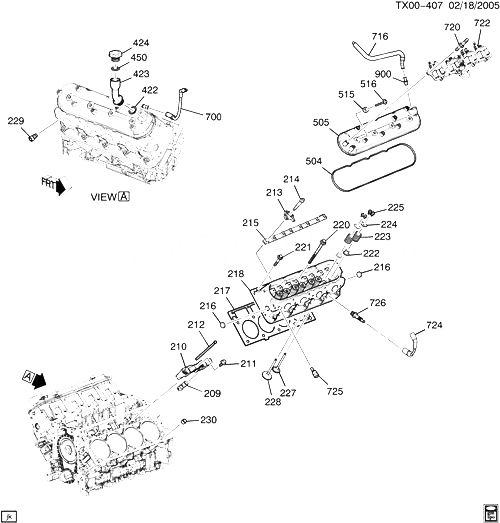

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 210 |
12595365 |
GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES)
| S1 (LS2) |
2005-2005 |
04 |
|
| 216 |
11562126 |
PLUG, CYL HD CORE HOLE (PART OF 218) (CUP, 32.03X7.88X1.27, S30400 SS PER SAE J405.)
| S1 (LS2) |
2005-2005 |
02 |
|
| 217 |
12589227 |
ПРОКЛАДКА, CYL HD
| S1 (LS2) |
2005-2005 |
02 |
|
| 218 |
12615363 |
HEAD, CYL (INCLS 216) (INCLS GUIDES, SEATS, PLUG) |
S1 (LS2) |
2005-2005 |
02 |
| 220 |
11571134 |
БОЛТ, CYL HD (M11X2X100) |
S1 (LS2) |
2005-2005 |
20 |
| 221 |
12558840 |
БОЛТ, CYL HD (M8X1.25X45)
| S1 (LS2) |
2005-2005 |
10 |
|
| 229 |
12553191 |
PLUG, CYL HD CORE HOLE (M12X1.5X21) (HEX, SOC) |
S1 (LS2) |
2005-2005 |
01 |
| 230 |
12570326 |
PIN, CYL HD LOC
| S1 (LS2) |
2005-2005 |
04 |
|
| 422 |
24100002 |
SEAL, OIL FIL TUBE (O RING) (27.94MM I.D.) (SIZE #320)
| S1 (LS2) |
2005-2005 |
01 |
|
| 423 |
12574386 |
TUBE, OIL FIL
| S1 (LS2) |
2005-2005 |
01 |
|
| 424 |
12577268 |
CAP, OIL FIL (MOBIL 1, SAE 5W30, NON-VENTED, W/SEAL) (INCLS 450) (ACDelco #FC209) |
S1 (LS2) |
2005-2005 |
01 |
| 450 |
24100002 |
SEAL, OIL FIL TUBE (O RING) (PART OF 424) (27.94MM I.D.) (SIZE #320)
| S1 (LS2) |
2005-2005 |
01 |
|
| 515 |
|
GROMMET, BOLT VLV RKR ARM CVR (PART OF 505, 516) |
|
2005-2005 |
|
| 700 |
12594124 |
TUBE, PCV (FRESH AIR TUBE) |
S1 (LS2) |
2005-2005 |
01 |
| 722 |
|
КАТУШКА, ЗАЖИГАНИЯ (СМ. ГРУППУ 02.000 КАТУШКА И МОДУЛЬ ЗАЖИГАНИЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2009 |
|
| K01 |
89018058 |
WIRE KIT, SPLG (INCLS 724) (INCLS SET OF 8 LEADS) (ACDelco #748RR)
| S1 (LS2) |
2005-2005 |
01 |
|
