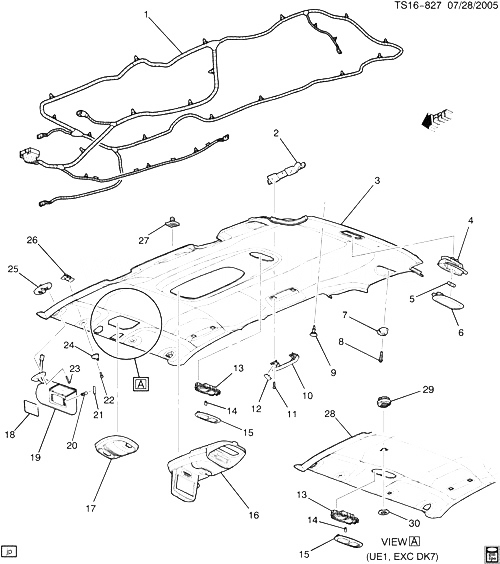

(TS16-827) - 2005-2009 ST155(06) ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША И СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК (EXC ЛЮК CF5) CHEVROLET TRAILBLAZER LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, DM LP WRG (PART OF 3, 28) 2005-2009
002 15235669 BRACKET, ASST HDL ST155 (06) 2005-2009 01
003 19148797 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/HEADLINER ROOF RAIL AIRBAG) (W/2 SEPARATE ONSTAR CONNECTORS #88987796 88987797) ST155 (DK7, U42, 27I, 28I, 47I, 48I) (EXC CF5) 2005-2005 01
003 19148807 PANEL, HDLNG TR (INCLS 1) (GRAY) (LESS AIRBAG) (W/2 SEPARATE ONSTAR CONNECTORS #88987796 88987797) ST155 (DK7, 27I, 28I, 47I, 48I) (EXC CF5, U42) 2005-2005 01
003 19148832 PANEL, HDLNG TR (INCLS 1) (GRAY) (LESS AIRBAG) (W/2-WAY ONSTAR CONNECTOR) ST155 (U42, 27I, 28I, 47I, 48I) (EXC CF5, DK7, UE1) 2005-2005 01
003 19151050 PANEL, HDLNG TR (INCLS 1) (GRAY) (LESS ROOF RAIL AIRBAG) ST155 (U42, 27I, 28I, 47I, 48I) (EXC CF5, DK7, UE1) 2005-2007 01
003 19151052 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ROOF RAIL AIRBAG) ST155 (U42, 27I, 28I, 47I, 48I) (EXC CF5, DK7, UE1) 2005-2007 01
003 19179910 PANEL, HDLNG TR (INCLS 1) (GRAY) ST155 (27I, 28I, 47I, 48I) (EXC CF5, DK7, UE1) 2005-2007 01
003 89025864 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/AIRBAG) ST155 (U42, 27I, 28I, 47I, 48I) (EXC CF5, DK7, UE1) 2005-2005 01
003 89025972 PANEL, HDLNG TR (INCLS 1) (GRAY) (HEADLINER LESS ROOF RAIL AIRBAG) (W/2 SEPARATE ONSTAR CONNECTORS #88987796 88987797) ST155 (DK7, U42, 27I, 28I, 47I, 48I) (EXC CF5) 2005-2005 01
003 89025979 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/AIRBAG) (W/2 SEPARATE ONSTAR CONNECTORS #88987796 88987797) ST155 (DK7, 27I, 28I, 47I, 48I) (EXC CF5, U42) 2005-2005 01
003 89025983 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/AIRBAG) ST155 (27I, 28I, 47I, 48I) (EXC CF5, DK7, UE1, U42) 2005-2005 01
003 89025984 PANEL, HDLNG TR (INCLS 1) (GRAY) (LESS AIRBAG) ST155 (27I, 28I, 47I, 48I) (EXC CF5, DK7, UE1, U42) 2005-2005 01
004 88935735 HOUSING, CARGO LP (RR DOME LAMP) ST1 2005-2009 01
005 09431809 BULB, 6CP TRADE #212-2 (CB XCVR HARN) (ACDelco #L212-2) 2005-2009 01
006 88935736 LENS, CARGO LP (RR DOME LAMP) ST1 2005-2009 01
007 89025851 HOOK, COAT (GRAY) ST155 (27I, 28I, 47I, 48I) 2005-2007 02
008 11519312 БОЛТ, COAT HOOK (HFH W/SHLDR, M6X1X40, 13.6 OD, TAP, TR-PT) (8.977) ST1 (06) 2005-2009 02
009 89023762 RETAINER, HDLNG TR MDL (PUSH IN) (GRAY) (14.640) ST155 2005-2009 02
010 15269142 HANDLE, ASST (INCLS 11) (GRAY) ST1 (27I, 28I, 47I, 48I) 2005-2007 03
011 БОЛТ, ASST HDL (PART OF 10) 2005-2009
012 10395950 COVER, ASST HDL BOLT (GRAY) ST1 (27I, 28I, 47I, 48I) 2005-2007 AR
013 19115097 HOUSING, DM RDG LP ST1 2005-2009 01
014 01999382 BULB, (DM LP) (ACDelco #W5WLL) (LONGER LIFE) 2005-2009 02
015 19115098 BEZEL, DM RDG LP (INCLS LENSES) ST1 2005-2009 01
016 DISPLAY, VIDEO W/ DVD (СМ. ГРУППУ 09.000 РАЗВЛЕКАТЕЛЬНАЯ СИСТЕМА/ FOR DETAILED ILLUSTRATED VIEW) 2005-2009
017 CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) (OAK) 2005-2009
018 15006352 LABEL, INFL RST SYS WRNG (ENGLISH/FRENCH) ST1 (06) (EXC VBW) 2005-2009 02
018 15114992 LABEL, INFL RST SYS WRNG (ENGLISH/ARABIC) ST1 (AL0, VBX) (EXPORT) 2005-2007 02
018 15116388 LABEL, INFL RST SYS WRNG (ENGLISH/SPANISH) ST1 (EXC VBW) 2005-2009 02
018 15134751 LABEL, INFL RST SYS MDL WRNG (JAPANESE) T1 (VBW) (EXPORT) 2005-2009 01
019 15207764 SUNSHADE, (INCLS 20, 21) (GRAY) T155 (06) (VBW, 27I, 28I, 47I, 48I) (EXPORT) 2005-2006 01
019 15207766 SUNSHADE, (INCLS 20, 21) (GRAY) T155 (06) (VBW, 27I, 28I, 47I, 48I) (EXPORT) 2005-2006 01
019 15207768 SUNSHADE, (INCLS 20, 21) (GRAY) ST155 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) 2005-2006 01
019 15207770 SUNSHADE, (INCLS 20, 21) (GRAY) ST155 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) 2005-2006 01
019 15207777 SUNSHADE, (INCLS 20, 21) (GRAY) ST155 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) 2005-2006 01
019 15207778 SUNSHADE, (INCLS 20, 21) (GRAY) ST155 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) 2005-2006 01
020 09436789 BULB, CP-.5 AMP-.9 L-.8 TRADE #37-12VOLT (PART OF 19) (ACDelco #L37) 2005-2009 04
021 LENS, S/S ILLUM MIR LP (PART OF 19) 2005-2009
022 89024603 БОЛТ, S/S SUPT (8 X 8 X 20 MM) ST155 2005-2009 02
023 11517072 SCREW, PAN HD C/R TAP M4.2X1.41X30 AB POR (S/S RET) (8.913) 2005-2009 06
024 89024598 RETAINER, S/S (GRAY) (PO PNL PKG SUNSHADE PKG) ST155 (06) (27I, 28I, 47I, 48I) 2005-2007 01
024 89024599 RETAINER, S/S (GRAY) ST155 (06) (27I, 28I, 47I, 48I) 2005-2007 01
025 89024851 CLIP, S/S SUPT (RH MODULARITY CLIP) ST155 2005-2008 01
025 89024852 CLIP, S/S SUPT (LH MODULARITY CLIP) ST155 2005-2008 01
026 03637204 RETAINER, R/RL FRT ASST STRP BOLT (Z-AXIS PINCH TOP RET) (10.219) ST155 2005-2009 02
027 10280777 RETAINER, HDLNG TR MDL (PUSH IN) (BLACK) (26.0 SQ X 7.5 DIA) (W/ VELCRO BACKING) (12.190) ST155 (EXC CF5) 2005-2005 08
028 19148826 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ONSTAR ROOF RAIL AIRBAG) ST155 (UE1, 27I, 28I, 47I, 48I) (EXC CF5, DK7, U42) 2005-2005 01
028 89025693 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ONSTAR, LESS ROOF RAIL AIRBAG) ST155 (UE1, 27I, 28I, 47I, 48I) (EXC CF5, DK7, U42) 2005-2005 01
028 89025987 PANEL, HDLNG TR (INCLS 1) (GRAY) (LESS AIRBAG) ST155 (UE1, U42, 27I, 28I, 47I, 48I) (EXC CF5, DK7) 2005-2005 01
028 89025988 PANEL, HDLNG TR (INCLS 1) (GRAY) (W/AIRBAG) ST155 (UE1, U42, 27I, 28I, 47I, 48I) (EXC CF5, DK7) 2005-2005 01
029 15264477 MICROPHONE, MOBILE TEL (GRAY) ST1 (UE1) (EXC CF5, DK7) 2005-2009 01
030 22666403 BEZEL, MOBILE TEL MIC (GRAY) ST1 (UE1) (EXC CF5, DK7) 2005-2008 01
