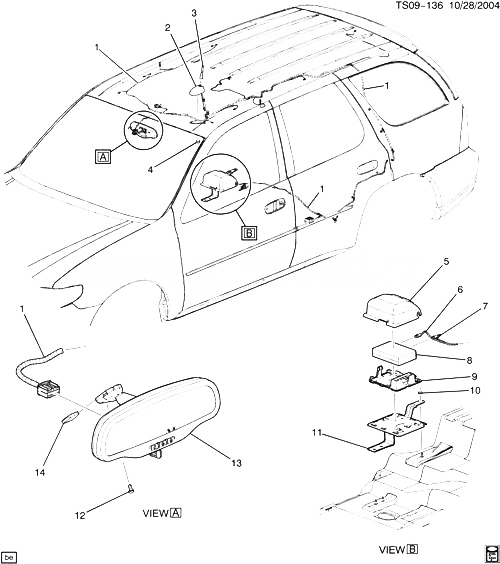

(TS09-136) - 2004-2005 ST155 СИСТЕМА СВЯЗИ ONSTAR(UE1) CHEVROLET TRAILBLAZER LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, DM LP WRG (INCLS 6, 7) (СМ. ГРУППУ 16.000 ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША И СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК FOR DETAILED ILLUSTRATED VIEW) 2004-2005
002 15107740 АНТЕННА, M/TEL VEH LOC (BASE) (INCLS 4) (ACDelco #15107740) ST1 (UE1) 2005-2005 01
003 10335281 АНТЕННА, MOBILE TEL (MAST) (ACDelco #10335281) ST1 (UE1) 2004-2005 01
004 ГАЙКА, M/TEL BASE (PART OF 2) 2004-2005
005 15120584 COVER, MOBILE TEL XCVR TR (GRAY) ST155 (UE1, W49, X88, Z88, Z89, 28I) 2005-2005 01
005 15120585 COVER, MOBILE TEL XCVR TR (EBONY) ST155 (UE1, 27I, 48I) 2005-2005 01
006 88987796 CABLE, NAVIGATION ANT COAX (PART OF 1) (4940MM LONG) ST1 2005-2005 01
007 88987795 CABLE, M/TEL ANT (PART OF 1) (5245MM LONG) (ACDelco #88987795) ST1 2005-2005 01
007 88987797 CABLE, M/TEL ANT (PART OF 1) (5030MM LONG) (ACDelco #88987797) ST1 2005-2005 01
008 MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (INCLS 9) (FOR SERVICE SEE GM PARTS PROCESS/POLICY FOR THE LATEST SERVICE INFORMATION) 2004-2005
009 25886921 BRACKET, NAVIGATION CTL PROCESSOR (PART OF 8) ST155 (UE1) 2005-2005 01
010 ГАЙКА, M/TEL XCVR BRKT (PART OF 11) 2004-2005
011 25849755 BRACKET, NAVN RCVR (INCLS 10) ST1 (UE1) 2005-2005 01
012 БОЛТ, I/S RR VIEW MIR (PART OF 13) 2004-2005
013 15144156 MIRROR, I/S RR VIEW (INCLS 12) (INSIDE) ST1 (06) (UE1, VCG) (EXC DD4, DD5, DD7) 2005-2005 01
013 15144157 MIRROR, I/S RR VIEW (INCLS 12) (INSIDE) ST1 (06) (UE1) (EXC DD4, DD5, DD7, VCG) 2005-2005 01
013 15144162 MIRROR, I/S RR VIEW (INCLS 12) ST1 (06) (DD5, UE1) (EXC VCG) 2005-2005 01
013 15144166 MIRROR, I/S RR VIEW (INCLS 12) ST1 (06) (DD5, UE1, VCG) 2005-2005 01
013 15144167 MIRROR, I/S RR VIEW (INCLS 12) ST1 (06) (DD4, UE1) (EXC VCG) 2005-2005 01
013 15144168 MIRROR, I/S RR VIEW (INCLS 12) ST1 (06) (DD4, UE1, VCG) 2005-2005 01
014 25653132 BRACKET, I/S RR VIEW MIR (10.187) ST1 2005-2005 01
