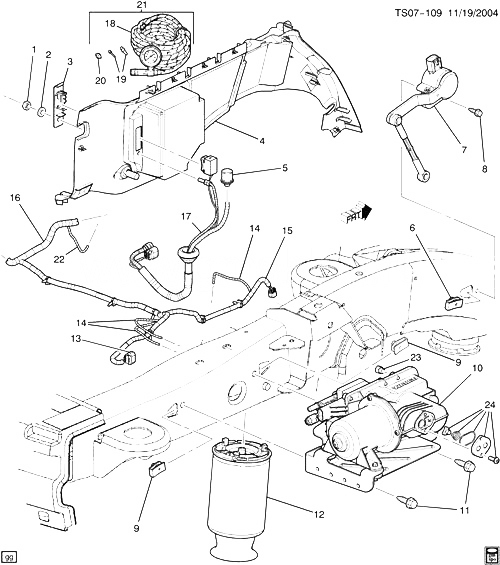

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15031939 |
ГАЙКА, INFLR AIR SW (POA OF TOOL KIT) (HEX 1/2X32) (7.465) |
ST1 (G67) |
2005-2009 |
01 |
| 002 |
11609679 |
WASHER, FLAT, M8 (INFLR AIR SW) |
|
2002-2009 |
01 |
| 003 |
15052031 |
BEZEL, INFLR AIR SW |
ST1 (G67) |
2005-2009 |
01 |
| 004 |
|
PANEL, BODY SI LWR TR (СМ. ГРУППУ 16.000 TRIM/INTERIOR-BODY SIDE FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
| 005 |
88892654 |
FILTER, AUTO LVL CONT AIR CMPR (PART OF 17) |
ST155 (G67) |
2002-2009 |
01 |
| 006 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (RR AIR SPR LVL SEN) |
|
2002-2009 |
04 |
| 007 |
25999461 |
ДАТЧИК, RR AIR SPR LVL |
ST1 (G67, W49, X88, Z88, Z89) |
2005-2005 |
01 |
| 007 |
25999462 |
ДАТЧИК, RR AIR SPR LVL |
ST1 (G67, W49, X88, Z88, Z89) |
2005-2005 |
01 |
| 008 |
11569736 |
БОЛТ, RR AIR SPR LVL SEN (M6X1X30) (W/RETAINER) |
ST1 (G67) |
2005-2009 |
02 |
| 009 |
11516149 |
ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RR AIR SPR CMPR)
|
2002-2009 |
02 |
|
| 010 |
25978169 |
COMPRESSOR, RR AIR SPR (INCLS 23, 24) |
ST155 (G67) |
2002-2006 |
01 |
| 011 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR AIR SPR CMPR) (ACDelco #11570082)
|
2002-2009 |
02 |
|
| 012 |
25815604 |
ПРУЖИНА, RR AIR |
ST1 (G67, 8JN, 9JN) |
2004-2007 |
02 |
| 012 |
25815604 |
ПРУЖИНА, RR AIR (LH, RH) (INCLS RETAINER TO HOLD TUBE) |
ST155 (G67, 8JP, 9JP) |
2003-2005 |
02 |
| 013 |
88986254 |
CONNECTOR, MDL-ELEK SUSP CONT (PART OF 16) (BLACK) (8-WAY FEMALE) (W/LEADS) (2.530) (ACDelco #PT1635)
| ST1 (06-36) |
2004-2005 |
01 |
|
| 014 |
88987246 |
TUBE, AUTO LVL CONT AIR CMPR (PART OF 16) (USE T/W 88892653 FITTING) |
ST155 |
2005-2009 |
01 |
| 015 |
15306156 |
CONNECTOR, SEN-ELEK SUSP POSN (OVAL) (PART OF 16) (BLACK) (2-WAY FEMALE) (W/LEADS) (3.682) (ACDelco #PT1315)
| ST1 |
2002-2009 |
02 |
|
| 016 |
|
HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) (INCLS 13-15, 22) |
|
2002-2009 |
|
| 017 |
15296435 |
SWITCH, INFLR AIR (INCLS 5) |
ST155 (G67) |
2002-2009 |
01 |
| 018 |
|
HOSE, INFLR (W/GAGE) (PART OF 21) |
|
2002-2008 |
|
| 019 |
|
NEEDLE, INFLR HOSE (PART OF 21) |
|
2002-2008 |
|
| 020 |
|
CHUCK, INFLR HOSE (PART OF 21) |
|
2002-2008 |
|
| 021 |
10433823 |
TOOL KIT, ACSRY (INCLS 18-20) (INCLS BAG, HOSE, CHUCK, NEEDLE, NOZZLE)
| ST1 |
2005-2009 |
01 |
|
| 022 |
88987245 |
TUBE, AUTO LVL CONT AIR CMPR (PART OF 16) (USE T/W 88892653 FITTING) |
ST155 |
2005-2009 |
01 |
| 023 |
88892653 |
FITTING, AUTO LVL CONT AIR CMPR TUBE (PART OF 10) |
ST155 (G67) |
2002-2009 |
AR |
| 024 |
|
COMPRESSOR KIT, AIR (PART OF 10) |
|
2003-2009 |
|
