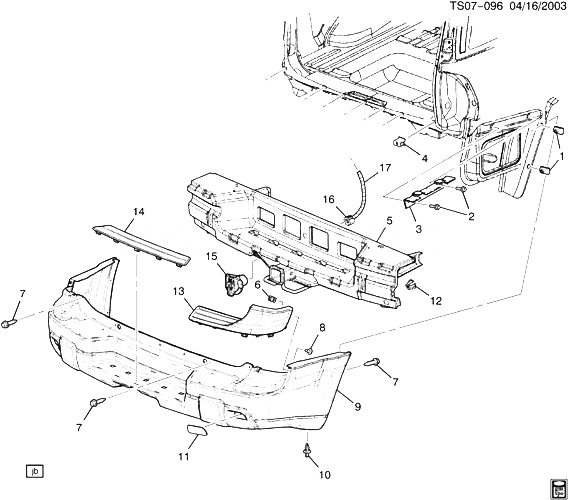

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR BPR FASCIA)
|
2002-2005 |
04 |
|
| 002 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (RR BPR FASCIA SI BRKT) |
|
2002-2005 |
04 |
| 003 |
15128530 |
BRACKET, RR BPR FASCIA SI (METAL)
| ST1 (06) (EXC Y91) |
2005-2005 |
01 |
|
| 003 |
15128531 |
BRACKET, RR BPR FASCIA SI (METAL)
| ST1 (06) (EXC Y91) |
2005-2005 |
01 |
|
| 004 |
11519497 |
ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (RR BPR FASCIA)
|
2002-2005 |
07 |
|
| 005 |
25863531 |
БАМПЕР, ЗАДНИЙ IMP (INCLS 12) (INCLS HITCH)
| ST1 (06) |
2005-2005 |
01 |
|
| 006 |
11516372 |
ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (RR BPR FASCIA PAD)
|
2002-2005 |
04 |
|
| 007 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR BPR FASCIA)
|
2002-2005 |
11 |
|
| 008 |
11517342 |
БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (RR BPR FASCIA PAD) |
|
2002-2005 |
02 |
| 009 |
88937016 |
FASCIA, RR BPR (PAINT TO MATCH) (W/O PADS) (FOR VEH W/3 STEP PADS) |
ST1 (06) (TGK, ZY1, X88) (EXC T96) |
2002-2005 |
01 |
| 009 |
88937016 |
FASCIA, RR BPR (PAINT TO MATCH) (W/O PADS) (FOR VEH W/3 STEP PADS) |
ST1 (06) (X88, ZY7) |
2002-2005 |
01 |
| 009 |
88937016 |
FASCIA, RR BPR (PAINT TO MATCH) (W/O PADS) (FOR VEH W/3 STEP PADS) |
ST1 (BNB, X88, ZY7) (EXPORT) |
2002-2005 |
01 |
| 009 |
89045604 |
FASCIA, RR BPR (LOWER PORTION OF FASCIA HAS GRAINED FINISH) (PAINT TO MATCH) (W/O PADS)
| ST1 (06) (BNB, X88, ZY1) (EXPORT) |
2002-2005 |
01 |
|
| 009 |
89045604 |
FASCIA, RR BPR (LOWER PORTION OF FASCIA HAS GRAINED FINISH) (PAINT TO MATCH) (W/O PADS)
| ST1 (06) (TGK, T96, X88, ZY1) |
2002-2005 |
01 |
|
| 010 |
15733971 |
RETAINER, RR BPR FASCIA (13MM) (1.272)
| ST1 |
2002-2005 |
04 |
|
| 011 |
15000044 |
REFLECTOR, RR BPR
| ST1 (X88) (EXC B4U) |
2002-2005 |
01 |
|
| 011 |
15000427 |
REFLECTOR, RR BPR
| ST1 (X88) (EXC B4U) |
2002-2005 |
01 |
|
| 012 |
14103461 |
RETAINER, RR BPR FASCIA (PART OF 5)
| ST1 |
2002-2005 |
04 |
|
| 013 |
12335817 |
PAD, RR BPR STEP OTR
| ST1 (X88) |
2002-2005 |
01 |
|
| 013 |
12335818 |
PAD, RR BPR STEP OTR
| ST1 (X88) |
2002-2005 |
01 |
|
| 014 |
88938462 |
PAD, RR BPR STEP CTR (USED ON VEHICLES WITH 3 STEP PADS)
| ST1 (06) (X88) |
2002-2005 |
01 |
|
| 015 |
12191503 |
RECEPTACLE, TOW VEH ELEC (W/DOOR)
| ST1 |
2005-2005 |
01 |
|
| 015 |
15366057 |
CAP, TRLR WRG RCPT
| ST1 (06-36) (EXC UY7) |
2004-2005 |
01 |
|
| 016 |
15306164 |
CONNECTOR, INLINE-TO TRLR HARN (BLACK) (7-WAY FEMALE) (W/LEADS) (ACDelco #PT1322) |
ST1 |
2005-2005 |
01 |
| 017 |
|
HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VEIW) |
|
2002-2005 |
|
