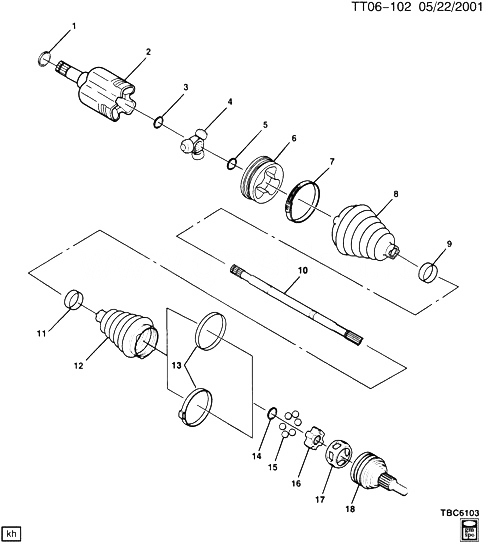

(TT06-102) - 2002-2009 T ПРИВОД/ПЕРЕДНИЕ КОЛЕСА CHEVROLET TRAILBLAZER LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 14041989 RING, FRT DRV AXLE INR SHF RET (*KIT1, KIT5) T1 2005-2009 01
002 HOUSING, FRT WHL DRV SHF TRIPOT JT (*KIT1, KIT5) 2002-2009
003 26066565 RING, FRT WHL DRV SHF TRI-POT JT SPIDER RET (LH RH SIDE) (*KIT1, KIT2, KIT5) (6.056) T1 2005-2009 04
004 SPIDER, FRT WHL DRV SHF TRI-POT JT (*KIT1, KIT5) 2002-2009
005 26066565 RING, FRT WHL DRV SHF TRI-POT JT SPIDER RET (LH RH SIDE) (*KIT1, KIT2, KIT5) (6.056) T1 2005-2009 04
006 26049216 BUSHING, FRT WHL DRV SHF TRI-POT JT BOOT (*KIT1, KIT2, KIT5) T1 2005-2009 02
007 07844092 CLAMP, FRT WHL DRV SHF TRI-POT JT BOOT OTR (*KIT1, KIT2, KIT5) T1 2005-2009 02
008 BOOT, FRT WHL DRV SHF TRI-POT JT (*KIT1, KIT2, KIT5) 2002-2009
009 CLAMP, FRT WHL DRV SHF TRI-POT JT BOOT INR (*KIT1, KIT2, KIT5) 2002-2009
010 SHAFT, FRT WHL DRV (*KIT5) 2002-2009
011 26040573 CLAMP, FRT WHL DRV SHF CV JT BOOT INR (SWAGE TYPE) (*KIT3, KIT4, KIT5) T1 2002-2009 02
012 BOOT, FRT WHL DRV SHF CV JT (*KIT3, KIT4, KIT5) 2002-2009
013 CLAMP, FRT WHL DRV SHF CV JT BOOT OTR (*KIT3, KIT4, KIT5) 2002-2009
014 26029915 RING, FRT WHL DRV SHF CV JT INR RACE RET (*KIT3, KIT5) T1 2005-2009 02
015 BALL (*KIT3, KIT5) 2002-2009
016 RACE, CV JT INR (*KIT3, KIT5) 2002-2009
017 CAGE, C/V JT (*KIT3, KIT5) 2002-2009
018 RACE, CV JT OTR (*KIT3, KIT5) 2002-2009
K01 26059677 JOINT KIT, FRT WHL DRV SHF TRI-POT (INCLS 1-9, KIT 2, 6) T1 2005-2009 02
K02 26059675 BOOT KIT, FRT WHL DRV SHF TRI-POT JT (INCLS 3, 5-9, KIT 6) (PART OF KIT 1) T1 2005-2009 02
K03 26059673 JOINT KIT, FRT WHL DRV SHF C/V (INCLS 11-18, KIT 4, 6) T1 2005-2009 02
K04 26059671 BOOT KIT, FRT WHL DRV SHF CV JT (INCLS 11-13, KIT 6) (PART OF KIT 3) T1 2002-2009 02
K05 26079789 SHAFT KIT, FRT WHL DRV (INCLS 1-18) (NUT, SEAL AND WASHER) T1 2002-2009 02
K06 07842254 LUBRICANT KIT, WHL DRV SHF TRI-POT JT (PART OF KITS 1-4) (OUTBOARD) T1 2002-2009 01
K06 26028005 LUBRICANT KIT, WHL DRV SHF TRI-POT JT (PART OF KITS 1-4) (INBOARD) T1 2002-2009 01
