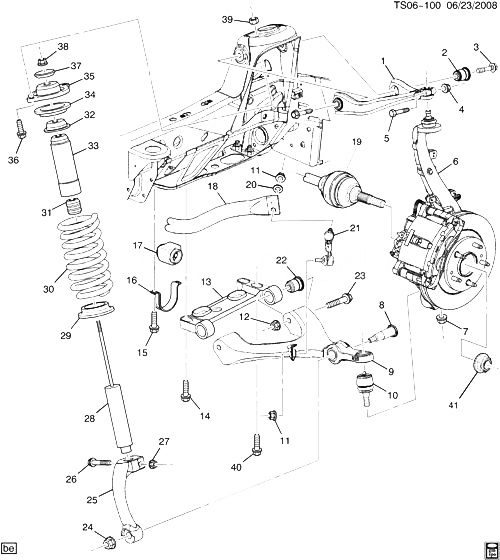

(TS06-100) - 2002-2007 ST ПЕРЕДНЯЯ ПОДВЕСКА CHEVROLET TRAILBLAZER LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25786774 ARM, FRT UPR CONT (INCLS 2) ST1 2002-2007 01
001 25786775 ARM, FRT UPR CONT (INCLS 2) ST1 2002-2007 01
002 BUSHING, FRT UPR CONT ARM (PART OF 1) 2002-2007
003 11519424 БОЛТ, FRT UPR CONT ARM (8.900) ST1 2005-2007 04
004 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (S/KNU) (ACDelco #11517996) 2002-2007 02
005 11518631 БОЛТ, HFH, M10X1.5X65, 26 THD, 22.3 OD, 10.9 STL, GMW3359 (S/KNU) 2002-2007 02
006 KNUCKLE, STRG (W/HUB) (СМ. ГРУППУ 04.000 КРЕПЛЕНИЕ СУППОРТА ТОРМОЗА/FRT KNUCKLE FOR DETAILED ILLUSTRATED VIEW) 2002-2007
007 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (S/KNU) 2002-2007 02
008 BUSHING, FRT SPR (PART OF 9) (*KIT2) 2002-2007
009 19133555 ARM, FRT LWR CONT (INCLS 8) (INCLS BALL JOINT) ST1 (06-36) 2004-2007
009 19133556 ARM, FRT LWR CONT (INCLS 8) (INCLS BALL JOINT) (INCLS STUD ASM AND BUSHING) ST1 (06-36) 2004-2007
010 19133670 STUD, FRT LWR CONT ARM BALL (*KIT2) ST1 2005-2007 02
011 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (PART OF 21) 2002-2007 04
012 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (FRT LWR CONT ARM) 2002-2007 04
013 15280281 BRACKET, FRT LWR CONT ARM (INCLS 22) (INCLS BUSHINGS) (*KIT2) ST1 2005-2007 01
013 25918965 BRACKET, FRT LWR CONT ARM (INCLS 22) (*KIT2) ST1 2005-2007 01
014 11518576 БОЛТ, FRT LWR CONT ARM FRT (M16X2X70) (8.900) ST1 2005-2007 02
015 11519083 БОЛТ, HEX W/CON WA, M10X1.5X36, 23.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (FRT STAB SHF INSL CLA) 2002-2007 04
016 25797990 CLAMP, FRT STAB SHF ST1 2003-2005 02
017 15128365 INSULATOR, FRT STAB SHF (INSULATOR HAS A COLLAR ON EACH SIDE) ST1 (06) (W49, X88, Z88, Z89) 2005-2005 02
017 15128365 INSULATOR, FRT STAB SHF (INSULATOR HAS A COLLAR ON EACH SIDE) ST1 (06) (W49, X88, Z88, Z89) (EXC B4U, Y91) 2005-2006 02
018 15125526 SHAFT, FRT STAB (INCLS SLEEVE) (*KIT3) ST1 (B4U) 2005-2006 01
018 15932191 SHAFT, FRT STAB (*KIT3) ST1 (06-36) (W49, X88, Z88, Z89) 2005-2005 01
019 SHAFT KIT, FRT WHL DRV (СМ. ГРУППУ 06.000 ПРИВОД/ПЕРЕДНИЕ КОЛЕСА FOR DETAILED ILLUSTRATED VIEW) T 2002-2007
020 11518404 WASHER, FLAT W/PLASTISOL INSERT, 9X27.2X4.5, 1050, 4345M (FRT STAB SHF LINK) 2002-2007 02
021 15918822 LINK, FRT STAB SHF ST1 2004-2007 01
021 15918823 LINK, FRT STAB SHF ST1 2004-2007 01
022 BUSHING, FRT LWR CONT ARM (PART OF 13) 2002-2007
023 11518255 BOLT-HFH, M14X2X100, 26.7 THD, 30.5 OD, 10.9, 7114M, MACH, CONE-PT (FRT LWR CONT ARM) (*KIT2) (CONTROL ARM TO BRACKET) 2002-2007 04
024 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (FRT SPR) 2002-2007 01
025 15743860 YOKE, FRT S/ABS ST1 2005-2007 02
026 11609232 БОЛТ, HFH, M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (FRT SPR) 2002-2007 01
027 11516781 ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (FRT SPR) (*KIT1) (8.917) 2002-2007 01
028 15098727 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-59) ST155 (6FH, 6FJ, 6FK, 6FL, 6FM) 2004-2007 01
028 15098727 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-59) ST155 (7FH, 7FJ, 7FK, 7FL, 7FM) 2004-2007 01
028 15125520 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-195) T155 (6KH, 6XC, 6XD, 6XF) 2005-2006 01
028 15125520 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-195) T155 (7KH, 7XC, 7XD, 7XF) 2005-2006 01
028 15195073 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-138) T155 (6JC, 6JF, 6JJ, 6JL, 6JN, 6JR, 6JT) 2004-2007 01
028 15195073 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-138) T155 (7JC, 7JF, 7JJ, 7JL, 7JN, 7JR, 7JT) 2004-2007 01
028 15198894 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-149) ST155 (6HM, 6HN, 6HP, 6HR, 6HS, 6HT) 2005-2007 01
028 15198894 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-149) ST155 (7HM, 7HN, 7HP, 7HR, 7HS, 7HT) 2005-2007 01
028 15261794 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-206) T155 (6CR, 6CS, 6CT, 6CU) 2005-2005 01
028 15261794 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-206) T155 (7CR, 7CS, 7CT, 7CU) 2005-2005 01
029 15757064 INSULATOR, FRT SPR (CODE DL, DM, DP, DR, DS, DT, DU, DW, DX, DY, DZ, FA, FB, FC, FD) (LOWER) (7.420) ST1 2002-2007 02
030 15108686 ПРУЖИНА, FRT T155 (6CR) 2005-2005 01
030 15108686 ПРУЖИНА, FRT T155 (6KH) 2005-2005 01
030 15108686 ПРУЖИНА, FRT T155 (7CR) 2005-2005 01
030 15108686 ПРУЖИНА, FRT T155 (7KH) 2005-2005 01
030 15125528 ПРУЖИНА, FRT T155 (6CS) 2005-2005 01
030 15125528 ПРУЖИНА, FRT T155 (6XC) 2005-2005 01
030 15125528 ПРУЖИНА, FRT T155 (7CS) 2005-2005 01
030 15125528 ПРУЖИНА, FRT T155 (7XC) 2005-2005 01
030 15125529 ПРУЖИНА, FRT T155 (6CT) 2005-2005 01
030 15125529 ПРУЖИНА, FRT T155 (6XD) 2005-2005 01
030 15125529 ПРУЖИНА, FRT T155 (7CT) 2005-2005 01
030 15125529 ПРУЖИНА, FRT T155 (7XD) 2005-2005 01
030 15125530 ПРУЖИНА, FRT T155 (6CU) 2005-2005 01
030 15125530 ПРУЖИНА, FRT T155 (7CU) 2005-2005 01
030 15125881 ПРУЖИНА, FRT ST155 (6FH, 6HM, 6HU) 2005-2005 01
030 15125881 ПРУЖИНА, FRT T155 (6JC) 2005-2005 01
030 15125881 ПРУЖИНА, FRT ST155 (7FH, 7HM, 7HU) 2005-2005 01
030 15125881 ПРУЖИНА, FRT T155 (7JC) 2005-2005 01
030 15125882 ПРУЖИНА, FRT ST155 (6HN, 6HW) 2005-2007 01
030 15125882 ПРУЖИНА, FRT ST155 (7HN, 7HW) 2005-2007 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST155 (6FX) 2005-2005 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST155 (6HP) 2005-2005 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST155 (7FX) 2005-2005 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST155 (7HP) 2005-2005 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST155 (6HX) 2005-2007 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) T155 (6JJ) 2005-2007 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST155 (7HX) 2005-2007 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) T155 (7JJ) 2005-2007 01
030 15125884 ПРУЖИНА, FRT ST155 (6HY, 6JL) 2004-2005 01
030 15125884 ПРУЖИНА, FRT ST155 (7HY, 7JL) 2004-2005 01
030 15125884 ПРУЖИНА, FRT ST155 (6FL) 2005-2005 01
030 15125884 ПРУЖИНА, FRT ST155 (7FL, 7HR) 2005-2006 01
030 15125885 ПРУЖИНА, FRT ST155 (6FM) 2004-2007 01
030 15125885 ПРУЖИНА, FRT ST155 (7FM) 2004-2007 01
030 15125886 ПРУЖИНА, FRT ST155 (6HT, 6JA) 2005-2007 01
030 15125886 ПРУЖИНА, FRT ST155 (6JR, 6JT) 2005-2007 01
030 15125886 ПРУЖИНА, FRT ST155 (7HT, 7JA) 2005-2007 01
030 15125886 ПРУЖИНА, FRT ST155 (7JR, 7JT) 2005-2007 01
031 15159045 BUMPER, FRT S/ABS UPR ST1 2002-2005 02
032 15757063 RETAINER, FRT S/ABS BPR (*KIT1) ST1 2005-2007 02
033 15196797 BOOT, FRT S/ABS ST1 2005-2007 02
034 INSULATOR, FRT SPR (PART OF 35) 2002-2007
035 15743856 INSULATOR, FRT SPR (CODE DL, DM, DP, DR, DS, DT, DU, DW, DX, DY, DZ, FA, FB, FC, FD) (INCLS 34, 36) (TOP MOUNT) (7.420) ST1 2002-2007 02
036 STUD, FRT SPR (PART OF 35) 2002-2007
037 15758160 WASHER, FRT SPR (*KIT1) ST1 2005-2007 02
038 11516781 ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (FRT SPR) (8.917) 2002-2007 02
039 11516781 ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (FRT SPR) (8.917) 2002-2007 02
040 11518576 БОЛТ, FRT LWR CONT ARM RR (M16X2X70) (8.900) ST1 2005-2007 04
041 10289657 ГАЙКА, FRT WHL DRV SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) T1 2005-2007 02
K01 19177778 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (INCLS 27, 28, 32, 37) (ACDelco #540-404) ST155 (6HU, 6HW, 6HX, 6HY, 6HZ, 6JA) 2005-2006 01
K01 19177778 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (INCLS 27, 28, 32, 37) (ACDelco #540-404) ST155 (7HU, 7HW, 7HX, 7HY, 7HZ, 7JA) 2005-2006 01
