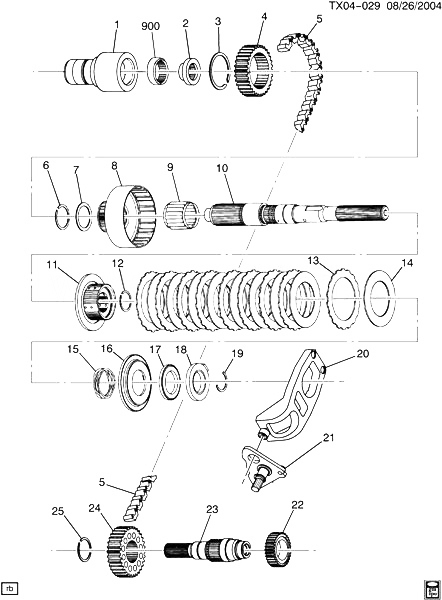

(TX04-029) - 2002-2009 T155 РАЗДАТОЧНАЯ КОРОБКА (NP4) ЧАСТЬ 2 ВНУТРЕННИЕ КОМПОНЕНТЫ (NVG 126C) CHEVROLET TRAILBLAZER LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88935689 GEAR, TRFER CASE INPUT (W/INPUT SHF) (INCLS 900) T155 (NP4) 2002-2009 01
002 09442326 BEARING, TRFER CASE FRT INPUT (DOUBLE ROW BALL BEARING) (ACDelco #9442326) T1 2005-2009 01
003 12547477 RING, TRFER CASE TWO/FOUR WHL DRV DRVN SPKT RET (2.5) (OUTER) T1 2003-2006 01
004 88935659 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV T1 2005-2009 01
005 89059627 CHAIN, TRFER CASE TWO/FOUR WHL DRV T1 (NP4) 2005-2009 01
006 88935696 RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HOUSING) (ACDelco #88935696) T1 2002-2009 01
007 88935697 WASHER, TRFER CASE RR OUTPUT SHF THR (TO СЦЕПЛЕНИЕ HOUSING) T1 2004-2009 01
008 88935698 HOUSING, TRFER CASE FOUR WHL DRV CLU T1 (NP4) 2005-2009 01
009 12470557 BEARING, TRFER CASE FOUR WHL DRV CLU HSG T1 (NP4) 2005-2009 01
010 88935654 SHAFT, TRFER CASE RR OUTPUT T1 (NP4) 2005-2009 01
011 88935699 HUB, TRFER CASE FOUR WHL DRV CLU T1 (NP4) 2005-2009 01
012 12547606 RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HUB) (1.5) (4.537) T1 2002-2009 01
013 88935700 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (STEEL) T1 2002-2009 09
014 88935701 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (FRICTION) T1 2002-2009 09
015 88935702 ПРУЖИНА, TRFER CASE FOUR WHL DRV CLU T1 (NP4) 2005-2009 01
016 88935703 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (APPLY) T1 2002-2009 01
017 19178973 BEARING, TRFER CASE FOUR WHL DRV CLU PRESS PLT (INCLS 18) (USE T/W 19178970) T1 2002-2009 01
018 PLATE, TRFER CASE FOUR WHL DRV CLU BKG (PART OF 17) 2002-2009
019 12547623 RING, TRFER CASE FOUR WHL DRV CLU PRESS PLT BRG HUB RET T1 2005-2009 01
020 19178970 LEVER, TRFER CASE FOUR WHL DRV CLU (USE T/W 19178973) T1 2002-2009 01
021 88935686 SHAFT, TRFER CASE CONT ACTR LVR T155 (NP4) 2004-2009 01
022 88935658 WHEEL, TRFER CASE FRT OUTPUT SHF SPD RELUCTOR (PART OF 23) (4.329) T1 2005-2009 01
022 88935658 WHEEL, TRFER CASE FRT OUTPUT SHF SPD RELUCTOR (PART OF 23) T1 2002-2009 01
023 88935657 SHAFT, TRFER CASE FRT OUTPUT (INCLS 22) (W/WHEEL) T1 2002-2009 01
024 88935660 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN T1 2002-2009 01
025 12547606 RING, TRFER CASE TWO/FOUR WHL DRV DRVN SPKT RET (1.5) (4.537) T1 2002-2009 01
900 12350040 BEARING, TRFER CASE INPUT GR (PILOT) (PART OF 1) (UPR-BETWEEN 4 WHL DR CLU PRESS HUB HI/LO PLNT CARRIER) T155 (NP4) 2005-2009 01
