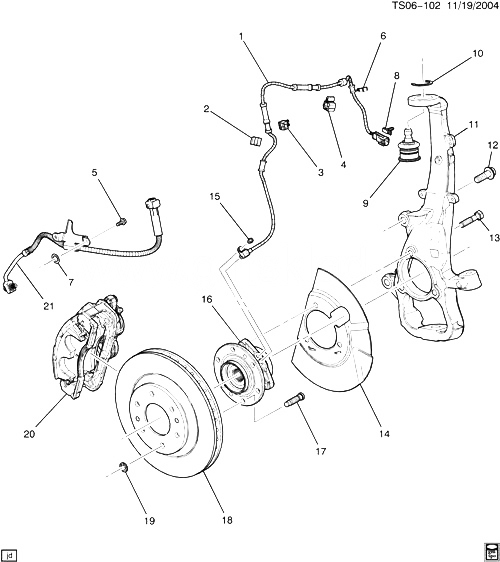

(TS06-102) - 2002-2005 ST КРЕПЛЕНИЕ СУППОРТА ТОРМОЗА/ПЕРЕДНЕГО И КУЛАК CHEVROLET TRAILBLAZER LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15158254 ДАТЧИК, FRT WHL SPD (PART OF 16) (INCLS 2-4, 6, 8) (ACDelco #15158254) ST1 2005-2009 02
002 15158259 CLIP, WHL SPD SEN WIRE (PART OF 1, 16) (12.0MM HOLE) ST1 2002-2009 02
003 15158260 CLIP, WHL SPD SEN WIRE (PART OF 1, 16) (11.4MM HOLE) (2 PUSH PIN) ST1 2002-2009 02
004 15158261 CLIP, WHL SPD SEN WIRE (PART OF 1, 16) (11MM HOLE) ST1 2002-2009 02
005 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (O/PMP SUC PIPE) 2002-2009 01
006 15715954 CLIP, WHL SPD SEN WIRE (PART OF 1, 16) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) ST1 2002-2009 02
007 15162944 RETAINER, FRT BRK HOSE BRKT (PUSH ON) (PART OF 16) ST1 2005-2009 04
008 12186353 RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 1, 16) (BLACK) (7.00/6.25 DIA, SLIDING) ST1 2005-2009 02
009 19133638 STUD, FRT UPR CONT ARM BALL (PART OF 11) ST1 2005-2009 02
010 15769998 RETAINER, FRT UPR CONT ARM BALL STUD ST1 2005-2009 02
011 18060689 KNUCKLE, STRG (INCLS 9) (W/BALL STUD RETAINER) ST1 2003-2007 01
011 18060690 KNUCKLE, STRG (INCLS 9) (W/BALL STUD RETAINER) ST1 2003-2007 01
012 11517100 БОЛТ, FRT BRK CLPR (M14X2X40, 33THD) (8.900) ST1 2002-2009 04
012 19138288 БОЛТ, FRT BRK CLPR (ACDelco #18K1509) (DURASTOP) ST155 (06) (LL8) 2002-2005 02
012 19138288 БОЛТ, FRT BRK CLPR (ACDelco #18K1509) (DURASTOP) T155 (06) (LL8) 2003-2005 02
012 19138288 БОЛТ, FRT BRK CLPR (ACDelco #18K1509) (DURASTOP) T155 (06) (LL8) 2004-2005 02
012 19138288 БОЛТ, FRT BRK CLPR (ACDelco #18K1509) (DURASTOP) ST155 (06) (LH6) 2005-2005 02
012 19138288 БОЛТ, FRT BRK CLPR (ACDelco #18K1509) (DURASTOP) T155 (06) (LH6) 2005-2005 02
013 11517155 БОЛТ, FRT WHL BRG (8.900) ST1 2005-2009 03
014 15001400 SHIELD, FRT BRK ST155 (06) (LL8, W49, X88, Z88, Z89) 2005-2007 01
014 15001401 SHIELD, FRT BRK ST155 (06) (LL8, W49, X88, Z88, Z89) 2005-2007 01
014 15753011 SHIELD, FRT BRK ST155 (06) (LH6, W49, X88, Z88, Z89) 2005-2007 01
014 15753012 SHIELD, FRT BRK ST155 (06) (LH6, W49, X88, Z88, Z89) 2005-2007 01
015 15960191 БОЛТ, WHL SPD SEN (PART OF 16) (M6X1X12) ST1 2005-2009 02
016 15130858 HUB, FRT WHL (W/WHL SPD SEN) (INCLS 1-4, 6-8, 15) (6.311) (ACDelco #FW121) ST1 2002-2009 02
017 09595178 STUD, FRT WHL (BOLT-ROUND HEAD, M12X1.5X40, W/SERRATIONS, GM6177M STL, GMW14) ST1 2005-2009 12
018 19181002 ROTOR, FRT BRK (ACDelco #177-1019) ST155 (06) (LL8, W49, X88, Z88, Z89) 2005-2005 02
018 25826103 ROTOR, FRT BRK (ACDelco #177-1008) ST155 (06) (LH6, W49, X88, Z88, Z89) 2005-2008 02
019 11502737 ГАЙКА, PUSH ON, M12X1.75, PC (FRT BRK ROT (PUSH ON)) 2002-2009 04
020 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2002-2009
021 15112267 HOSE, FRT BRK ST1 2002-2005 01
021 15112268 HOSE, FRT BRK ST1 2002-2005 01
