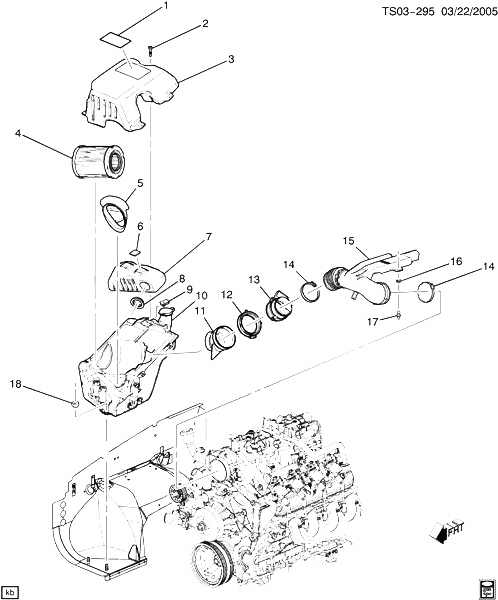

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15103173 |
LABEL, A/C REFRIG WRNG (PART OF 3) (ENGLISH/FRENCH) (MUST HAVE VIN# WHEN ORDERING) |
ST1 |
2005-2009 |
01 |
| 002 |
15045901 |
БОЛТ, A/CL HSG (PART OF 3)
| ST1 (LH6) |
2005-2009 |
04 |
|
| 003 |
15832647 |
HOUSING, A/CL UPR (INCLS 1, 2) |
ST1 (06-36) (LH6) |
2005-2005 |
01 |
| 004 |
15036141 |
ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (ACDelco #15036141) |
ST1 (LH6) |
2005-2009 |
01 |
| 005 |
88983029 |
DUCT, A/CL INL |
ST1 (LH6, CE4) |
2005-2009 |
01 |
| 006 |
15763604 |
INSULATOR, A/CL HSG (16.065) |
ST1 (LH6) |
2005-2009 |
04 |
| 007 |
88983027 |
RESONATOR, FRT INT AIR DUCT |
ST1 (LH6) |
2005-2009 |
01 |
| 008 |
88983028 |
SEAL, A/CL RESO DUCT |
ST1 (LH6) |
2005-2009 |
01 |
| 009 |
11516372 |
ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (WSWA SOLV CNTNR)
|
2005-2009 |
04 |
|
| 010 |
|
CONTAINER, WSWA SOLV (W/PUMP) (СМ. ГРУППУ 16.000 ЕМКОСТЬ/СТЕКЛООЧИСТИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2009 |
|
| 011 |
88983026 |
ADAPTER, A/CL SNORKEL |
ST1 (LH6) |
2005-2009 |
01 |
| 012 |
25171042 |
ADAPTER, MASS AIRFLOW SEN INL
| ST1 (LH6) |
2005-2009 |
01 |
|
| 013 |
15904068 |
ДАТЧИК, MASS AIRFLOW (INCLS AIR TEMP SENSOR) (ACDelco #213-4160)
| ST1 (LH6) |
2005-2009 |
01 |
|
| 014 |
|
CLAMP, A/CL OTLT DUCT (PART OF 15) |
|
2005-2005 |
|
| 015 |
15260369 |
DUCT, A/CL OTLT (W/RESO) (INCLS 14, 16) (INCLS INSULATOR) |
ST1 (LH6) |
2005-2006 |
01 |
| 016 |
25346092 |
INSULATOR, A/CL HSG (PART OF 15) (3.270) |
ST1 (06-36) (LH6) |
2005-2009 |
01 |
| 017 |
03532785 |
БОЛТ, A/CL OTLT DUCT (M5X1.0X25.5) (BALL STYLE) (7.477) |
ST1 (LH6) |
2005-2008 |
01 |
| 018 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/CL) (8.915) (ACDelco #11514596)
|
2005-2009 |
02 |
|
