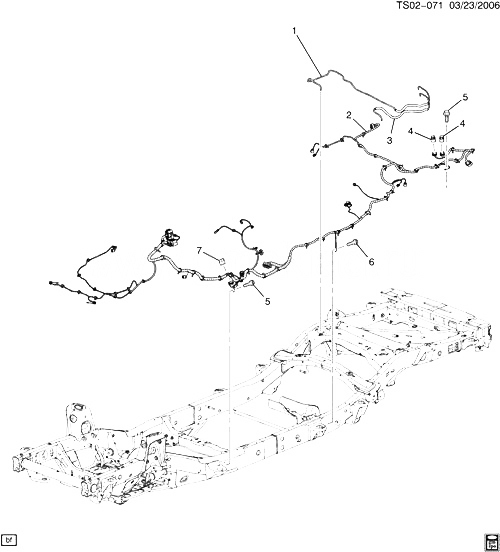

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88987246 |
TUBE, AUTO LVL CONT AIR CMPR (PART OF 2) (USE T/W 88892653 FITTING) |
ST155 |
2005-2009 |
01 |
| 002 |
15208808 |
HARNESS, CHAS RR WRG (INCLS 1, 3, 4, 7) (IT MAY BE NECESSARY TO ADD LENGTH AT 2-WAY RED EVAP EMIS CNSTR VENT VLV CONNECTOR.) |
T155 (LL8, BAE, K18, UA2, X88, ZW7) |
2005-2005 |
01 |
| 002 |
15208808 |
HARNESS, CHAS RR WRG (INCLS 1, 3, 4, 7) (IT MAY BE NECESSARY TO ADD LENGTH AT 2-WAY RED EVAP EMIS CNSTR VENT VLV CONNECTOR.) |
T155 (LL8, K18, X88, ZW7) (EXC BAE) |
2005-2005 |
01 |
| 003 |
88987245 |
TUBE, AUTO LVL CONT AIR CMPR (PART OF 2) (USE T/W 88892653 FITTING) |
ST155 |
2005-2009 |
01 |
| 004 |
|
RELAY, TRLR T/SIG (PART OF 2) |
|
2005-2009 |
|
| 005 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS RR WRG HARN GRD)
|
2005-2009 |
02 |
|
| 006 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS RR WRG HARN F/PMP GRD)
|
2005-2009 |
01 |
|
| 007 |
15319851 |
RELAY, SECD AIR INJN PUMP (HIGH CURRENT SHROUDED 4-PIN GRAY RELAY) (PART OF 2) (GRAY) (HIGH CURRENT) (4-PIN) (ACDelco #212-559)
| ST155 (LL8) |
2005-2005 |
01 |
|
