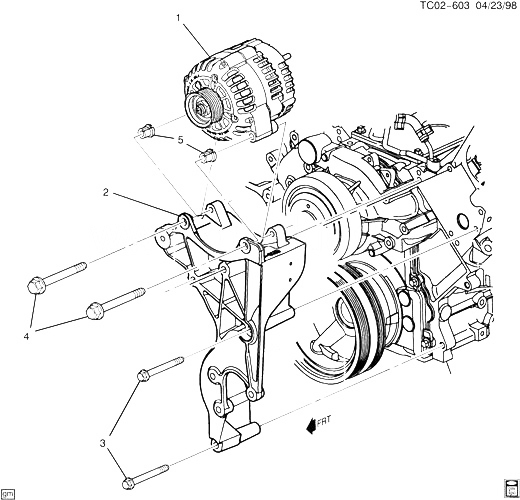

(TC02-603) - 2005-2009 ST КРЕПЛЕНИЕ ГЕНЕРАТОРА (LH6/5.3M, LS2/6.0H) CHEVROLET TRAILBLAZER LS (4WD) 2005
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 19151921 | ГЕНЕРАТОР, (REMAN) (ACDelco #321-1845)| ST1 (LH6, KG3) |
2005-2005 |
01 |
|
| 002 | 12567922 | BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) | ST1 (LH6) | 2005-2009 | 01 |
| 003 | 11519214 | БОЛТ, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN P/S PUMP BRKT) | 2003-2009 | 02 | |
| 004 | 11518637 | БОЛТ, HFH M10X1.5X95, 26 THD, 22.3 OD, 9.8, 7114M, MACH, 7.5 MAT-PT (GEN) | 2003-2009 | 04 |
