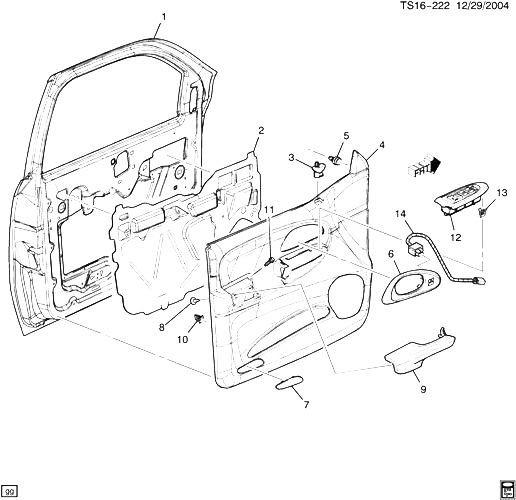

(TS16-222) - 2002-2009 ST(06) ОТДЕЛКА ПЕРЕДНЕЙ ДВЕРИ - ВОДИТЕЛЬ (CHEVROLET X88) CHEVROLET TRAILBLAZER LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88937088 ДВЕРЬ, ПЕРЕДНЯЯ SI (W/O HINGES) ST1 (06) 2002-2009 01
002 25779163 DEFLECTOR, FRT S/D WAT ST155 2005-2009 01
003 15123254 SWITCH, O/S R/CON RR VIEW MIR (GRAY) (W/O POWER FOLD) ST1 (DK2, DK9, DS3, X88, 28I) 2005-2005 01
003 15123255 SWITCH, O/S R/CON RR VIEW MIR (EBONY) (W/O POWER FOLD) ST1 (DK2, DK9, DS3, X88, 27I, 48I) 2005-2005 01
003 15123258 SWITCH, O/S RR VIEW MIR FLDG (GRAY) (W/POWER FOLD) ST1 (DL2, X88, 28I) 2005-2009 01
003 15123259 SWITCH, O/S RR VIEW MIR FLDG (EBONY) (W/POWER FOLD) ST1 (DL2, X88, 27I, 48I) 2005-2007 01
004 10384691 PANEL, FRT S/D TR (INCLS 5, 7-10) (GRAY) ST1 (DK2, DK9, DL2, DS3, X88, YC5, YC6, 28I) 2005-2005 01
004 10384692 PANEL, FRT S/D TR (INCLS 5, 7-10) (EBONY) ST1 (DK2, DK9, DL2, DS3, X88, YC5, YC6, 48I) 2005-2005 01
004 10395853 PANEL, FRT S/D TR (INCLS 5, 7-10) (CASHMERE) ST1 (DK2, DK9, DL2, DS3, X88, YC5, YC6, 27I) 2005-2006 01
004 15239424 PANEL, FRT S/D TR (INCLS 5, 7-10) (GRAY) ST1 (DR1, X88, 28I) 2005-2009 01
004 15239439 PANEL, FRT S/D TR (INCLS 5, 7-10) (CASHMERE) ST1 (DR1, X88, 27I) 2005-2006 01
004 15808463 PANEL, FRT S/D TR (INCLS 5, 7-10) (CASHMERE) ST1 (DK2, DK9, DL2, DP2, DS3, X88, 27I) 2005-2007 01
004 25933507 PANEL, FRT S/D TR (INCLS 5, 7-10) (GRAY) ST1 (DK2, DK9, DL2, DS3, X88, 28I) (EXC YC5, YC6) 2005-2005 01
004 25933508 PANEL, FRT S/D TR (INCLS 5, 7-10) (EBONY) ST1 (DK2, DK9, DL2, DS3, X88, 48I) 2005-2005 01
005 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 4) 2002-2009 08
006 15214501 BEZEL, FRT S/D I/S HDL (EBONY) ST1 (06) (X88) (EXC AAB) 2002-2007 01
006 15214503 BEZEL, FRT S/D I/S HDL (EBONY) ST1 (AAB, X88) 2002-2007 01
007 15055841 REFLECTOR, FRT S/D WRNG (PART OF 4) ST155 2005-2009 01
008 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 4) 2002-2009 03
009 15109982 ARMREST, FRT S/D (PART OF 4) (GRAY) ST1 (X88, 28I) 2005-2009 01
009 15109983 ARMREST, FRT S/D (PART OF 4) (EBONY) ST1 (X88, 48I) 2005-2009 01
009 25811013 ARMREST, FRT S/D (PART OF 4) (CASHMERE) ST1 (X88, 27I) 2005-2007 01
010 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 4) 2002-2009 02
011 11517342 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (FRT S/D T/PNL) 2002-2009 04
012 15114241 SWITCH, DR LK SI WDO (INCLS 13) (GRAY) (W/PLT) ST1 (DK2, DK9, DR1, X88, 28I) (EXC KA1) 2005-2005 01
012 15114242 SWITCH, DR LK SI WDO (INCLS 13) (EBONY) (W/PLT) (ACDelco #D1426G) ST1 (DK2, DK9, DR1, X88, 48I) (EXC KA1) 2005-2005 01
012 15114243 SWITCH, DR LK SI WDO (INCLS 13) (GRAY) (INCLS PLATE) ST1 (DL2, X88, 28I) (EXC KA1) (EXPORT) 2005-2005 01
012 15114244 SWITCH, DR LK SI WDO (INCLS 13) (EBONY) (INCLS PLATE) ST1 (DL2, X88, 48I) (EXC KA1) (EXPORT) 2005-2005 01
012 15114245 SWITCH, DR LK SI WDO (INCLS 13) (EBONY) (W/PLT) (ACDelco #D1428G) ST1 (DS3, KA1, X88, 48I) (EXC VCG) 2005-2005 01
012 15114246 SWITCH, DR LK SI WDO (INCLS 13) (GRAY) (W/PLT) ST1 (DS3, KA1, X88, 28I) (EXC VCG) 2005-2005 01
012 15114247 SWITCH, DR LK SI WDO (INCLS 13) (EBONY) (INCLS PLATE) ST1 (DL2, KA1, VCG, X88, 48I) (EXPORT) 2005-2005 01
012 15114248 SWITCH, DR LK SI WDO (INCLS 13) (GRAY) (INCLS PLATE) ST1 (DL2, KA1, VCG, X88, 28I) (EXPORT) 2005-2005 01
012 15114292 SWITCH, DR LK SI WDO (INCLS 13) (GRAY) (INCLS PLATE) ST1 (DK2, DS3, KA1, VCG, X88, 28I) (EXPORT) 2005-2005 01
012 15114293 SWITCH, DR LK SI WDO (INCLS 13) (EBONY) (W/PLT) ST1 (DK2, DS3, KA1, VCG, X88, 48I) 2005-2005 01
012 15212589 SWITCH, DR LK SI WDO (INCLS 13) (CASHMERE) ST1 (DL2, KA1, VCG, X88, 27I) (EXPORT) 2005-2005 01
012 15212590 SWITCH, DR LK SI WDO (INCLS 13) (CASHMERE) ST1 (DK2, DS3, KA1, VCG, X88, 27I) 2005-2005 01
012 15212592 SWITCH, DR LK SI WDO (INCLS 13) (CASHMERE) (W/MOD) ST1 (DK2, DK9, DR1, X88, 27I) (EXC KA1) 2005-2005 01
012 15212593 SWITCH, DR LK SI WDO (INCLS 13) (CASHMERE) ST1 (DL2, X88, 27I) (EXC KA1) (EXPORT) 2005-2005 01
012 15212598 SWITCH, DR LK SI WDO (INCLS 13) (CASHMERE) ST1 (DS3, KA1, X88, 27I) (EXC VCG) 2005-2005 01
013 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 12) 2002-2009 03
014 15908702 SWITCH, D/SEAT ADJR MEMORY ST1 (06) (AAB) 2005-2009 01
