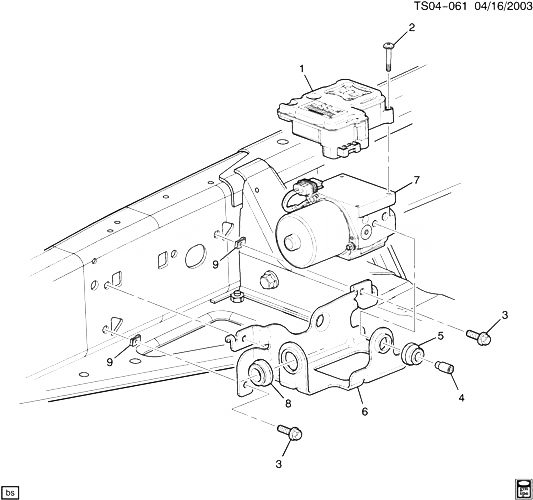

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15125070 |
MODULE, ELEK BRK CONT |
S1 (06-36) (JF8) (EXC NW7) |
2004-2005 |
01 |
| 001 |
19148772 |
MODULE, ELEK BRK CONT (ACDelco #19148772) |
S155 (LL8, JF8, NW7) |
2004-2005 |
01 |
| 001 |
19148794 |
MODULE, ELEK BRK CONT (ACDelco #19148794) |
S155 (LH6, JF8, NW7) |
2005-2005 |
01 |
| 002 |
12475229 |
БОЛТ, ELEK BRK CONT MDL CVR (M4X0.7X25 PAN HD) |
ST1 (JF8) |
2002-2005 |
03 |
| 003 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (ELEK BRK CONT MDL) (ACDelco #11570082)
|
2002-2005 |
03 |
|
| 004 |
12473003 |
БОЛТ, BRK PRESS MOD VLV BRKT (M8X1.25) |
ST1 (JF8) |
2002-2005 |
02 |
| 005 |
12473002 |
BUSHING, ELEK BRK CONT MDL BRKT (PART OF 6) (27.9MM O.D. - 10.8MM I.D.) |
S1 (06-36) (JF8) (EXC NW7) |
2002-2005 |
02 |
| 006 |
88935756 |
BRACKET, ELEK BRK CONT MDL (INCLS 5, 8) |
ST1 (JF8) |
2003-2005 |
01 |
| 007 |
19179932 |
VALVE, BRK PRESS MOD |
S155 (LH6, JF8, NW7) |
2005-2005 |
01 |
| 007 |
89027152 |
VALVE, BRK PRESS MOD (ACDelco #89027152)
| S1 (06) (JF8) (EXC NW7) |
2005-2005 |
01 |
|
| 007 |
89027155 |
VALVE, BRK PRESS MOD (ACDelco #89027155) |
S155, 158 (JF8, NW7) |
2004-2005 |
01 |
| 008 |
12389626 |
BUSHING, ELEK BRK CONT MDL BRKT (PART OF 6) (34.7MM O.D. - 18.4MM I.D.) |
S1 (06) (JF8) (EXC NW7) |
2002-2005 |
01 |
| 009 |
|
ГАЙКА, ELEK BRK CONT MDL |
|
2002-2005 |
|
